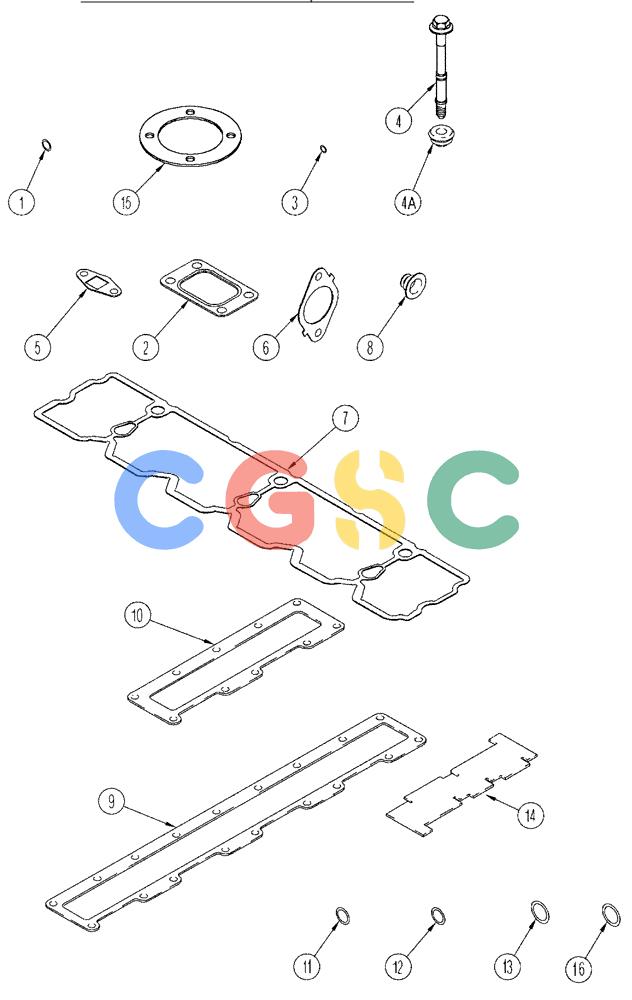

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-062) - GASKET KIT - VALVE GRIND, FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
A78018
|
[1] |
GASKET KIT
|
CAS
Valve Grind
|
| 1. |
J867043
|
[6] |
SEAL,1.78mm Thk x 10.82mm ID
|
CAS
O-Ring
|
| 2. |
J919369
|
[1] |
GASKET,0.5mm Thk
|
CAS
Turbocharger To Manifold
|
| 3. |
J937142
|
[6] |
SEAL,7mm ID x 15mm OD x 1.5mm Thk
|
CAS
Injector Nozzle, 7 MM Injector Tip
|
| . . |
J990876
|
[5] |
ISOLATOR
|
CAS
Screw - With
|
| 4. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Screw - Captive Sleeve
|
| 5. |
J937706
|
[1] |
GASKET,0.79mm Thk
|
CAS
Turbo Oil Drain Tube
|
| 6. |
J937479
|
[6] |
MANIFOLD GASKET
|
CAS
Exhaust Superseded by part number: 84368103
|
| 7. |
J939284
|
[1] |
GASKET
|
CAS
Valve Cover
|
| 8. |
J943888
|
[24] |
SEAL
|
CAS
Valve Stem Superseded by part number: 87352235
|
| 9. |
J944646
|
[1] |
MANIFOLD GASKET
|
CAS
Intake, Cover
|
| 10. |
87447963
|
[1] |
GASKET
|
CAS
Connector
|
| 11. |
129270
|
[2] |
O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro
|
NH
|
| 12. |
238-7210
|
[6] |
O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro
|
CAS
Superseded by part number: 86625107
|
| 13. |
313262A1
|
[2] |
O-RING,0.07" Thk x 0.364" ID
|
CAS
|
| 14. |
87404692
|
[1] |
GAUGE
|
BRR
Cylinder Head, Bolt Length
|
| 15. |
J917892
|
[1] |
GASKET,0.79mm Thk
|
CAS
Mounting
|
| 16. |
J678603
|
[2] |
O-RING,2.2mm Thk x 9.3mm ID
|
CAS
|
