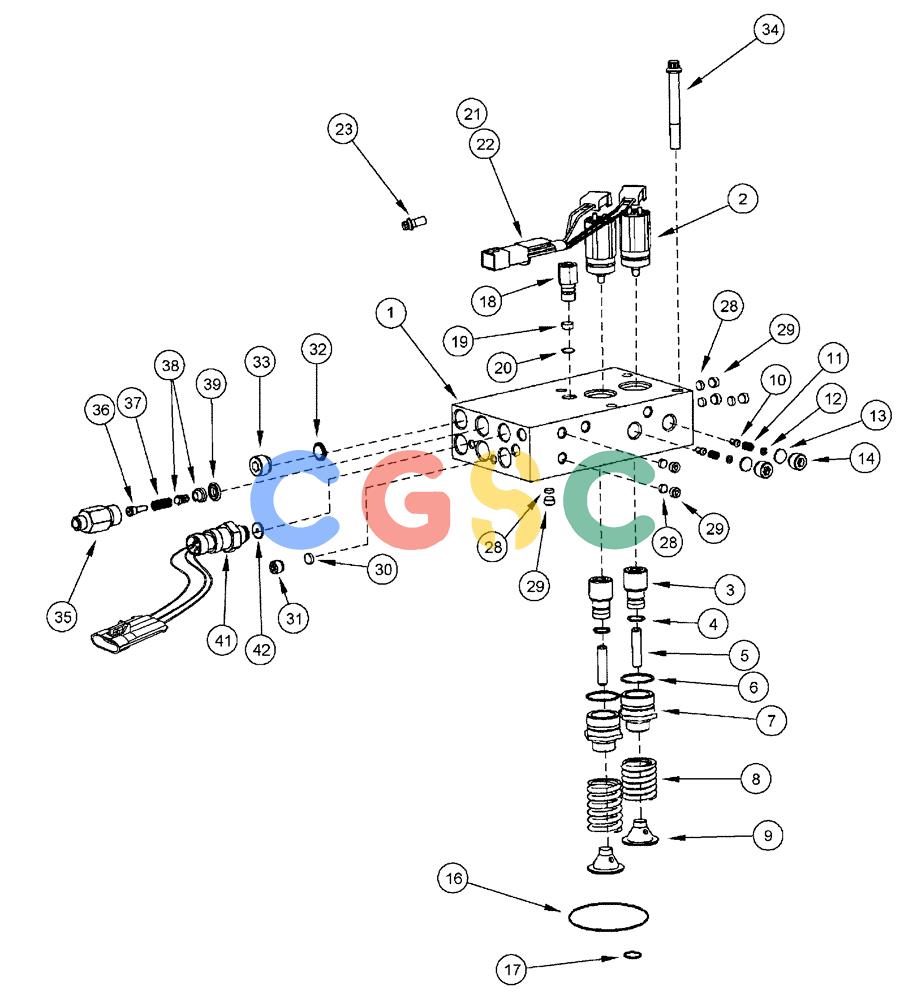

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (02-076) - FUEL INJECTION PUMP - ACCUMULATOR KIT, FLX 3010 & FLX 3510 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
J4025319
|
[1] |
REPAIR KIT
|
CAS
Accumulator
|
| . . |
JR4025319
|
[1] |
REMAN-ACCUMULATOR
|
CAS
Accumulator, Remanufactured
|
| . . |
JC4025319
|
[1] |
CORE-ACCUMULATOR
|
CAS
Return Part Number - Accumulator Kit (Use This Part Number To Return Accumulator Core For Credit)
|
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Body
|
| 16. |
J4010636
|
[1] |
SEAL
|
CAS
|
| 17. |
J867640
|
[1] |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
|
CAS
|
| 18. |
J347925
|
[1] |
ELEC CONNECTOR
|
CAS
Drain
|
| 20. |
J867043
|
[1] |
SEAL,1.78mm Thk x 10.82mm ID
|
CAS
O-Ring
|
| 21. |
J417161
|
[1] |
HARNESS
|
CAS
Harness
|
| 22. |
J417095
|
[1] |
CABLE CLIP
|
CAS
|
| 34. |
J331002
|
[4] |
FLANGE BOLT,Hex, M10 x 1.5 x 80mm, Gr 10.9
|
CAS
Hex Flange
|
| . . |
J4010544
|
[1] |
ADJUSTER
|
CAS
Assembly
|
| 39. |
J4010545
|
[1] |
WASHER
|
CAS
Seal
|
| . . |
J4025130
|
[1] |
KIT
|
CAS
Pressure Sensing
|
| 42. |
J4076375
|
[1] |
SEALING WASHER,6mm ID x 9.5mm OD x 1.9mm Thk
|
CAS
|
