神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (06-003[03]) - NAME PLATE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
422 次

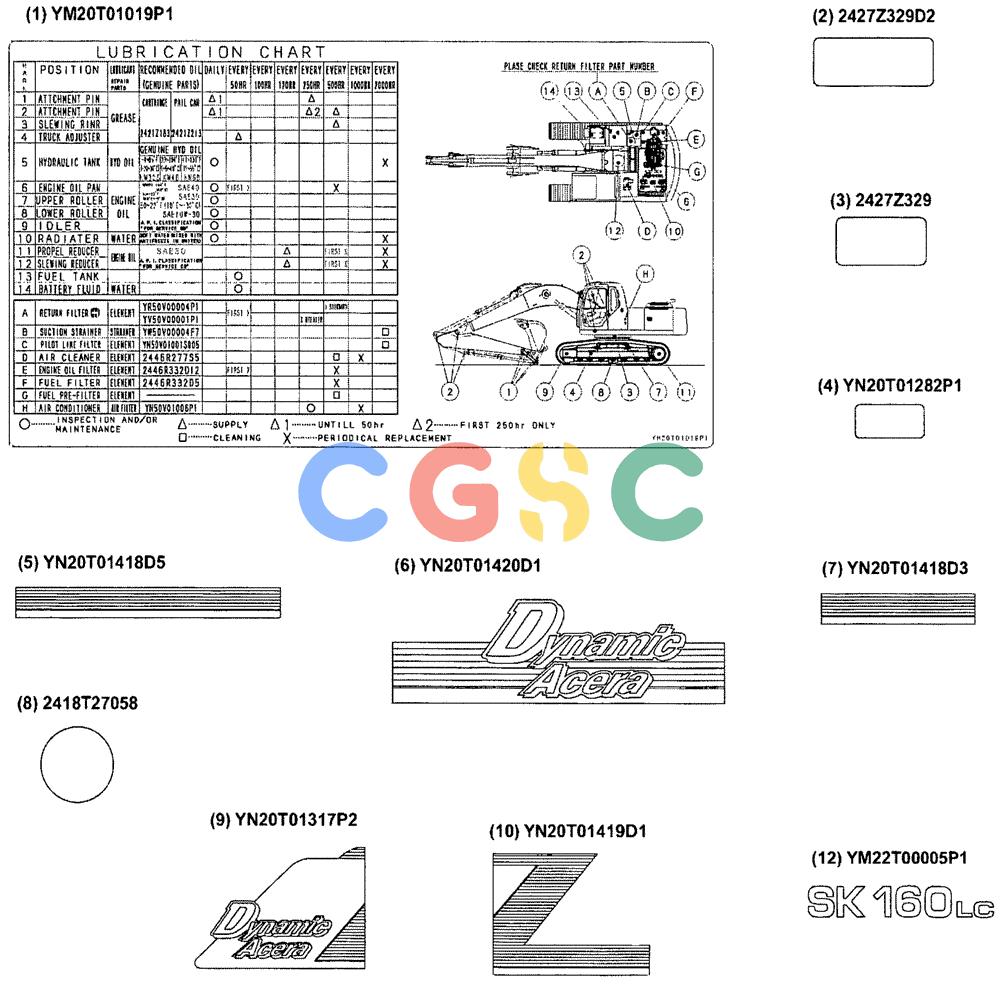

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM22T00010F1 | [1] | NAME PLATE INSTAL | |
| 1. | YM20T01026P1 | [1] | Decal, Lubrication Chart | |
| 2. | 2427Z329D2 | [3] | SHEET | KOBAnti-Slip (400x150mm) |
| 3. | 2427Z329 | [4] | SHEET | KOBAnti-Slip (300x150mm) |
| 4. | YN20T01282P1 | [7] | SHEET | KOBAnti-Slip (230x105mm) |
| 5. | YN20T01418D5 | [2] | LABEL | KOBDecal, Strip 1095mm Long (43-7/64 in) |
| 6. | YN20T01420D1 | [1] | LABEL | KOBDecal, Dynamic Acera logo (Right Side) |
| 7. | YN20T01418D3 | [1] | LABEL | KOBDecal, Strip 640mm Long (25-3/16 in) |
| 8. | 2418T27058 | [2] | PLATE | KOBName, (Ø 30mm) |
| 9. | YN20T01317P2 | [1] | LABEL | KOBDecal, Dynamic Acera logo (Left Side) |
| 10. | YN20T01419D1 | [1] | LABEL | KOBDecal, Z Shape |
| 11. | 2432Z927 | [1] | LABEL | KOBDecal, Lubrication Labels Set (One Sheet), Not Illustrated |
| 12. | YM22T00005P1 | [2] | DECAL | KOBDecal, SK160LC logo |
