神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (05-005[02]) - CONTROL LINES, MULTI Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
427 次

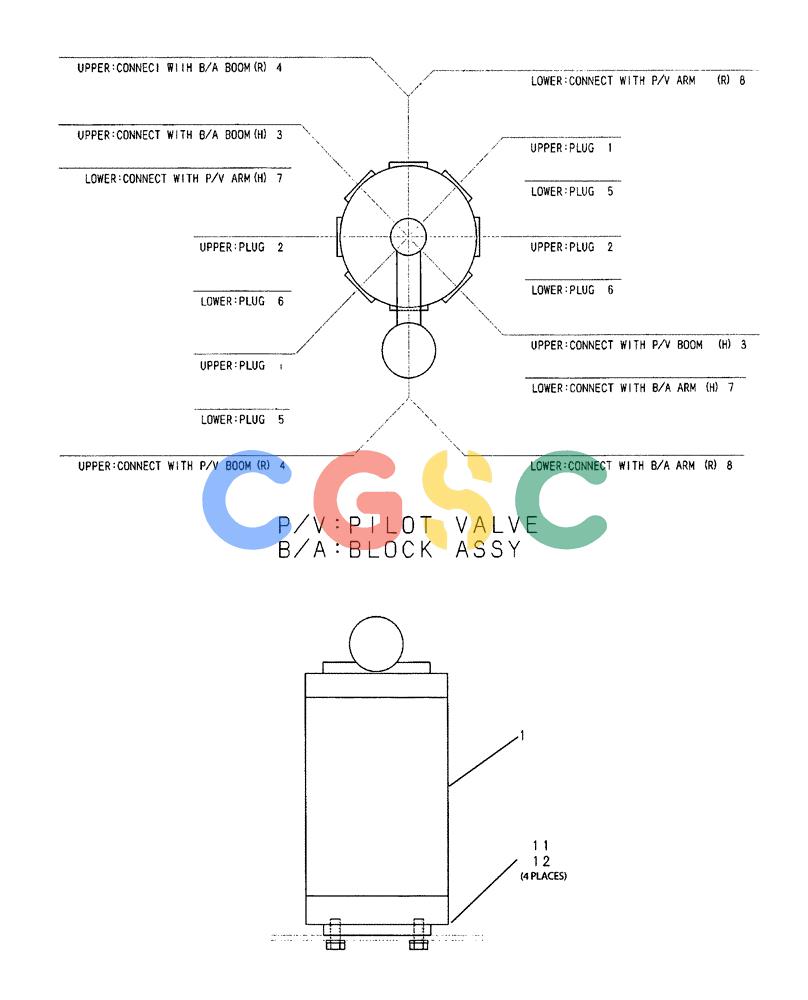

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM64H00031F1 | [1] | CONTROL LINES, MULTI | |
| 1. | YY30V00019F1 | [1] | VALVE | KOB |
| 2. | YN64H01078D8 | [4] | HOSE | KOB600mm Long (23-5/8 in) |
| 3. | YN64H01078DA | [4] | HOSE | KOB780mm Long (30-45/64 in) |
| 4. | YN64H01018P1 | [1] | GROMMET | KOB |
| 5. | PY01P01043D6 | [6] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| 6. | ZH22F06000 | [4] | CONNECTION | KOB |
| 7. | ZH42X06000 | [4] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 8. | ZH32X06000 | [4] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 9. | 2444Z3155 | [4] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| 10. | ZE72X06000 | [8] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| 11. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 12. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 13. | PW02B01209P1 | [1] | GROMMET | KOB |
