神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (04-002) - ELEMENT KIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
361 次

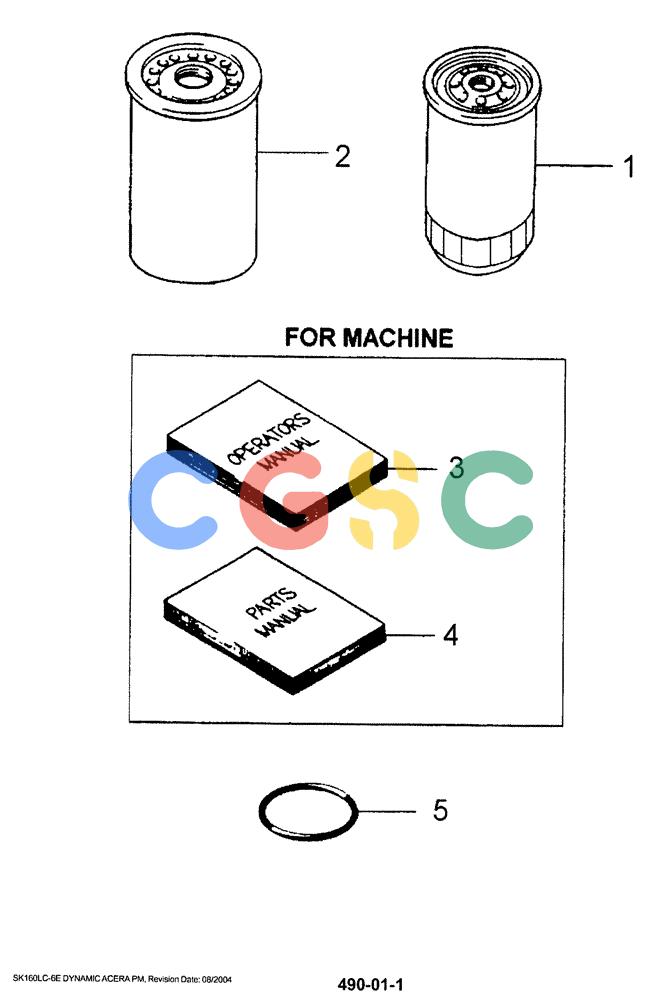

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30T00002F1 | [1] | ELEMENT KIT | |
| 1. | 2446R332D5 | [1] | ELEMENT | KOB Superseded by part number: 2451R124-2A |
| 2. | 2446R332D12 | [1] | FILLER | KOBFILTER, OIL Superseded by part number: 84218257 |
| 3. | YM91Z00001D2 | [1] | MANUAL, OPERATORS | |
| 4. | YM91Z00002D2 | [1] | MANUAL, PARTS | |
| 5. | 2445Z1570 | [4] | O-RING,9mm Thk x 125mm ID, Cl 5, 75 Duro | KOBID 125 ± 0.40 x OD 143mm |
