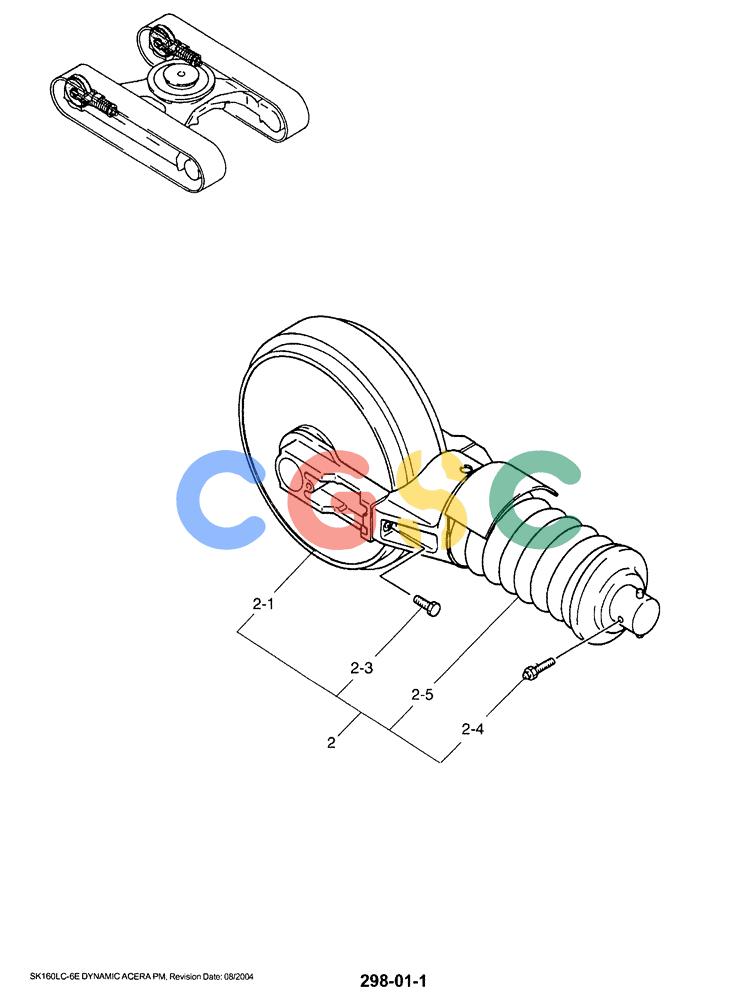

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (02-003) - CRAWLER IDLER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
121 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM52D00003F2 | [1] | IDLER ASSY, CRAWLER | |
| 2. | YM52D00005F2 | [2] | IDLER | KOBIDLER ASSY, CRAWLER |
| 2-1. | YN52D00009F1 | [1] | IDLER | KOB Superseded by part number: LQ52D00044F1 |
| 2-3. | ZS13C16045 | [2] | SCREW | KOBScrew -- M16x2.0x45mm |
| 2-4. | 2444P803 | [1] | LUBE NIPPLE,5/8" - 18 x 64mm L, 19mm Hex | KOB5/8" - 18 UNF, Straight |
| 2.5. | YM54D00003F2 | [1] | IDLER | KOB |
