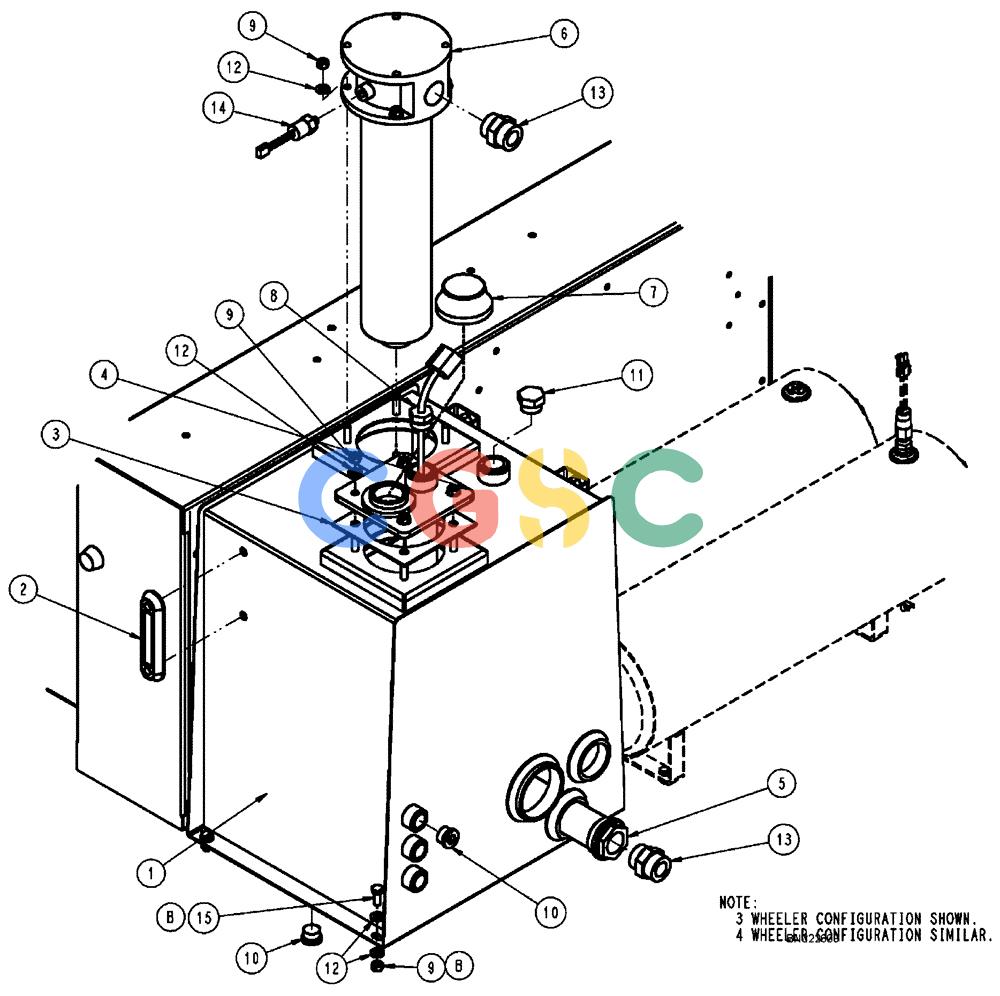

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (06-001[02]) - HYDRAULIC TANK GROUP SN Y6T020477 AND AFTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
725 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87270368
|
[1] |
TANK
|
BN
Hydraulic Oil 31 Gallon
|
| 2. |
BN322594
|
[1] |
GAUGE
|
BN
sight with temperature
|
| 3. |
87272095
|
[1] |
GASKET,3.17mm Thk
|
CUR
Cover Plate
|
| 4. |
87272100
|
[1] |
PLATE
|
BN
Temp/Level
|
| 5. |
BN303528
|
[1] |
STRAINER ASSY.
|
BN
32Mb X -20Fb, 100
|
| 6. |
87267809
|
[1] |
HYDRAULIC OIL FILTER
|
BN
, See 06-009[01] For Service Parts
|
| 7. |
BN304339
|
[1] |
VALVE
|
BN
Pressure Valve
|
| 8. |
BN324116
|
[1] |
INDICATOR
|
BN
Sensor, Multiple Oil Level And Oil Temperature Superseded by part number: 84596270
|
| 9. |
86980515
|
[12] |
NUT,Hex, M10 x 1.5, Cl 8.8, DOR
|
GI
Superseded by part number: 100037
|
| 10. |
9841223
|
[2] |
PLUG,1-1/16" - 12 ORB
|
BEL
|
| 11. |
BN60479
|
[1] |
PLUG
|
BN
Plug-1 5/16-12 O-Ring-Hex
|
| 12. |
86625252
|
[16] |
WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk
|
FAR
|
| 13. |
BN302660
|
[2] |
FITTING
|
BN
20Mor-20Mb
|
| 14. |
87267808
|
[1] |
PRESSURE SWITCH
|
BN
25 psi N/C
|
| 15. |
86980400
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
BU
|
