神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-016) - VALVE INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
241 次

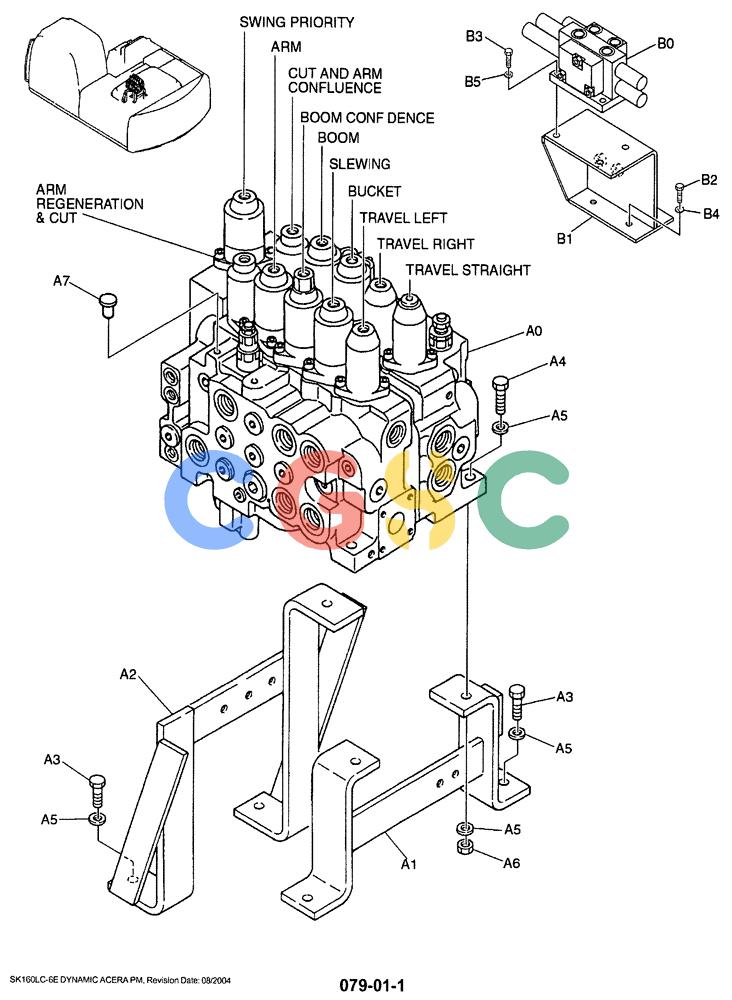

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A0. | YY30V00006F1 | [1] | VALVE ASSY, CONTROL (Standard), See Figure 07-028 | VALVE ASSY, CONTROL (Standard), See Figure 07-028 |
| B0. | YY30V00008F1 | [1] | VALVE | KOBAssembly, Control (EXTRA OR ROT), See Figure 07-004 |
| A1. | YM64H01021P1 | [1] | BRACKET | KOB |
| A2. | YM64H01018P1 | [1] | BRACKET | KOB |
| A3. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| A4. | ZS18C12060 | [3] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm |
| A5. | ZW16H12000 | [10] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| A6. | ZN18C12010 | [3] | NUT | KOBM12x1.75mm |
| A7. | PV02B01073D1 | [2] | CAP | KOB08.4mm Plastic |
| . . | YM64H00029F1 | [1] | VALVE | KOBInstallation (EXTRA OR ROT) |
| B1. | YM64H01019P1 | [1] | BRACKET | KOB |
| B2. | ZS18C12030 | [3] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| B3. | ZS18C08030 | [3] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| B4. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| B5. | ZW16H08000 | [3] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
