卡特零件查询（735） 237-5510: WIRING GP-LIGHTING
广数供应链运营团队, 15 02月, 2025，浏览：
586 次

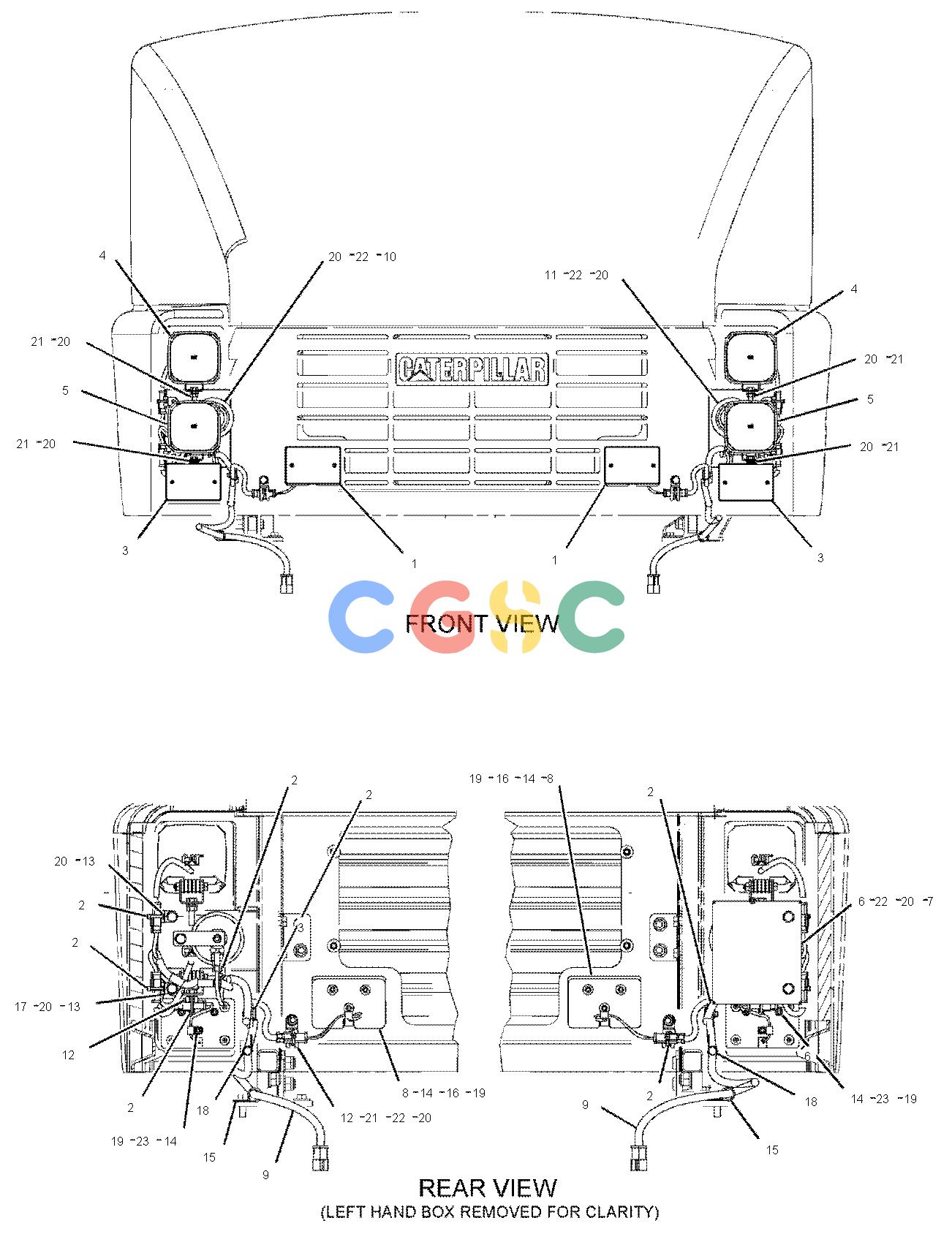

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-6466Y | [2] | LAMP GP-SIGNAL(24-VOLT)(FRONT TURN) | |
| 2. | 3S-2093 | [12] | STRAP-CABLE | |
| 3. | 162-5402Y | [2] | LAMP GP-SIGNAL(24-VOLT)(FRONT) | |
| 4. | 171-7213Y | [2] | LAMP GP-HEAD(24-VOLT, 65-WATT)(LOW BEAM) | |
| 5. | 171-7214Y | [2] | LAMP GP-HEAD(24-VOLT, 65-WATT)(HIGH BEAM) | |
| 6. | 211-7321 | [2] | BOX | |
| 7. | 211-7322 | [4] | SPACER-SPECIAL | |
| 8. | 215-2987 | [2] | PLATE-MOUNTING | |
| 9. | 244-8635 | [2] | HARNESS AS-LIGHTING(LH) | |
| | | | (EACH INCLUDES) |
| | 9W-0844 | [10] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [5] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPATCLE AS & WEDGE) |
| 10. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 11. | 174-7875 | [1] | HORN AS(24-VOLT, HIGH TONE) | |
| 12. | 4P-7581 | [4] | CLIP(LADDER) | |
| 13. | 4P-8134 | [4] | CLIP(LADDER) | |
| 14. | 5C-2890M | [12] | NUT(M6X1-THD) | |
| 15. | 5K-3294 | [2] | CLIP | |
| 16. | 5P-4115 | [6] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 5P-9297 | [2] | CLIP(LOOP) | |
| 18. | 8M-2770 | [2] | CLIP(LOOP) | |
| 19. | 8M-2771 | [4] | CLIP | |
| 20. | 8T-4121 | [18] | WASHER-HARD(11X21X2.5-MM THK) | |
| 21. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 22. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 23. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
