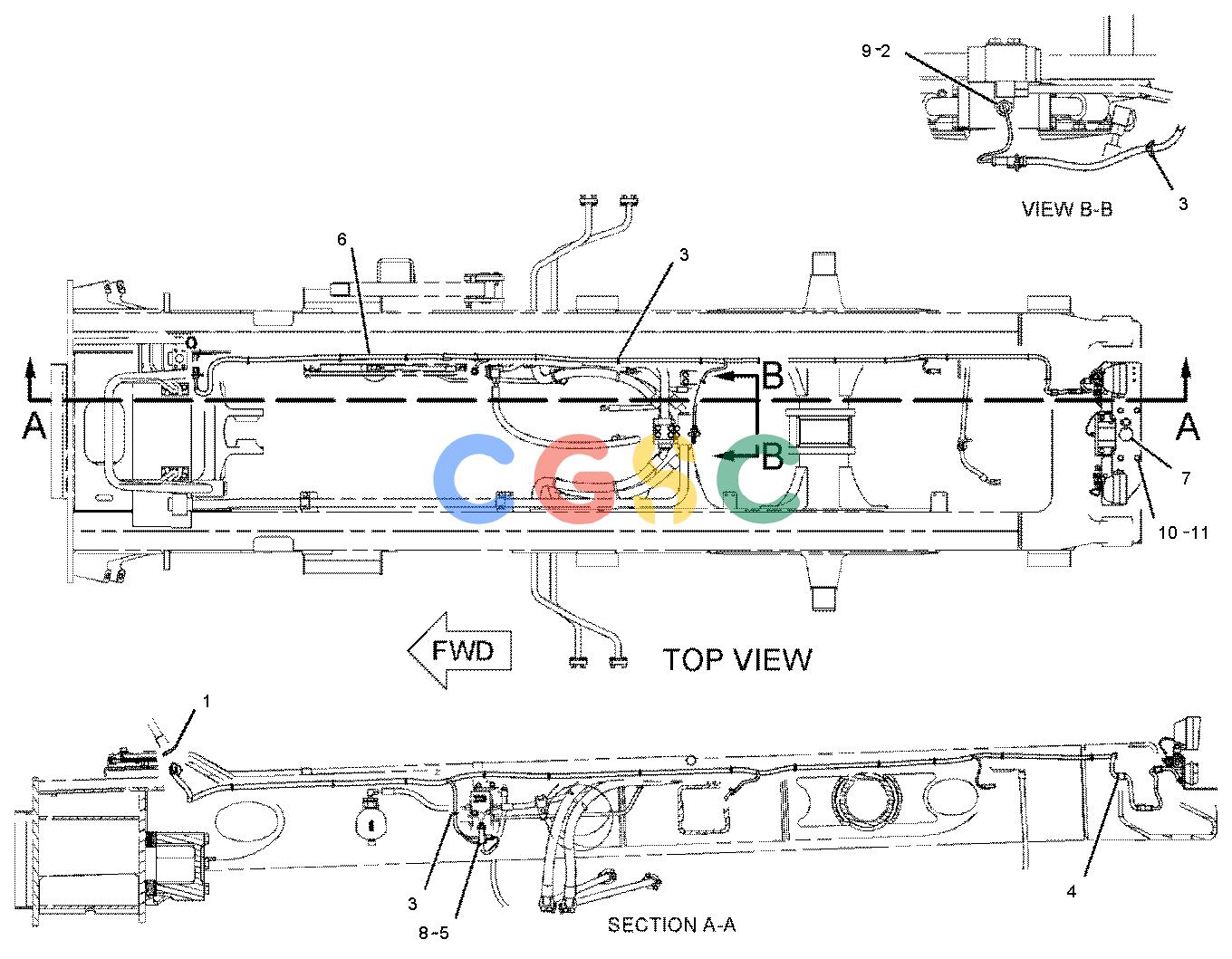

卡特零件查询（735） 241-6069: WIRING GP-REAR
广数供应链运营团队, 15 02月, 2025，浏览：
547 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2V-2043 | [1] | NUT-BULKHEAD(1-5/8-12-THD) | |
| 2. | 3E-6451 | [1] | SWITCH GP-TEMPERATURE(PARKING BRAKE OIL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 3S-2093 | [18] | STRAP-CABLE | |
| 4. | 8W-8528 | [2] | SLEEVE | |
| 5. | 213-6947 | [1] | SWITCH GP-PRESSURE(SERVICE BRAKE) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-6008D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.2-M) | |
| | 8T-5677 | [1] | SLEEVE | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 6. | 237-5513Y | [1] | WARNING GP-BACKUP | |
| 7. | 241-6066 | [1] | HARNESS AS-REAR CHASSIS | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| 8. | 3J-1907 | [1] | SEAL-O-RING | |
| 9. | 3K-0360 | [1] | SEAL-O-RING | |
| 10. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
