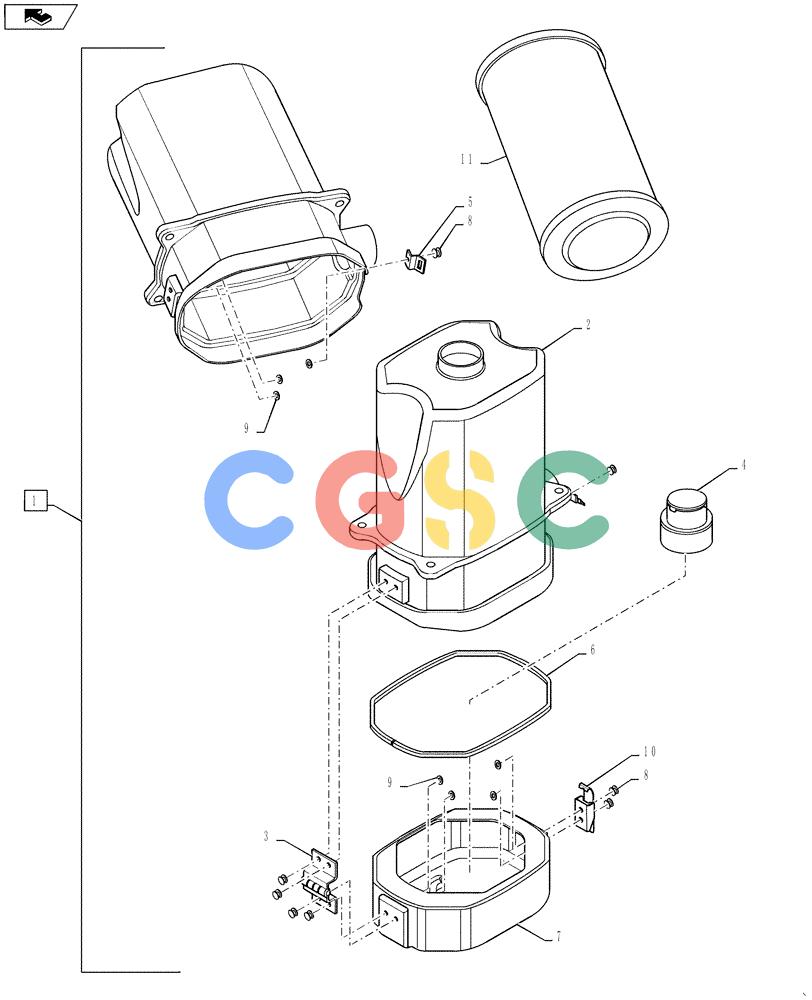

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-013) - CAB AIR CLEANER HOUSING AND FILTER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87596194
|
[1] |
HOUSING
|
FAR
Assy, Clean Air, Charcoal Filter Not Included, Order Ref. 11
|
| 2. |
87596192
|
[1] |
HOUSING
|
FAR
Upper Filter Superseded by part number: 87596194
|
| 3. |
319969A1
|
[1] |
HINGE
|
CAS
Filter Housing
|
| 4. |
307016A1
|
[1] |
COUPLING
|
CAS
Filter
|
| 5. |
307021A2
|
[1] |
CLIP
|
CAS
Keeper Overcenter
|
| 6. |
87598827
|
[1] |
RUBBER SEAL,5.08mm W x 680mm L x 4.76mm Thk
|
BN
Cab Air Cleaner Box
|
| 7. |
87596190
|
[1] |
HOUSING
|
FAR
Filter Lower Superseded by part number: 87596194
|
| 8. |
151-510
|
[7] |
RIVET,Pop, 3/16" x .450"
|
CAS
Superseded by part number: 86637655
|
| 9. |
895-11005
|
[7] |
WASHER,5.5mm ID x 10mm OD x 1mm Thk
|
CAS
Superseded by part number: 86625261
|
| 10. |
87596198
|
[1] |
LATCH
|
FAR
Draw, W/ Secondary Catch
|
| 11. |
87267363
|
[1] |
AIR FILTER,Cab Charcoal Recirculation
|
BN
Cab Air, Charcoal
|
