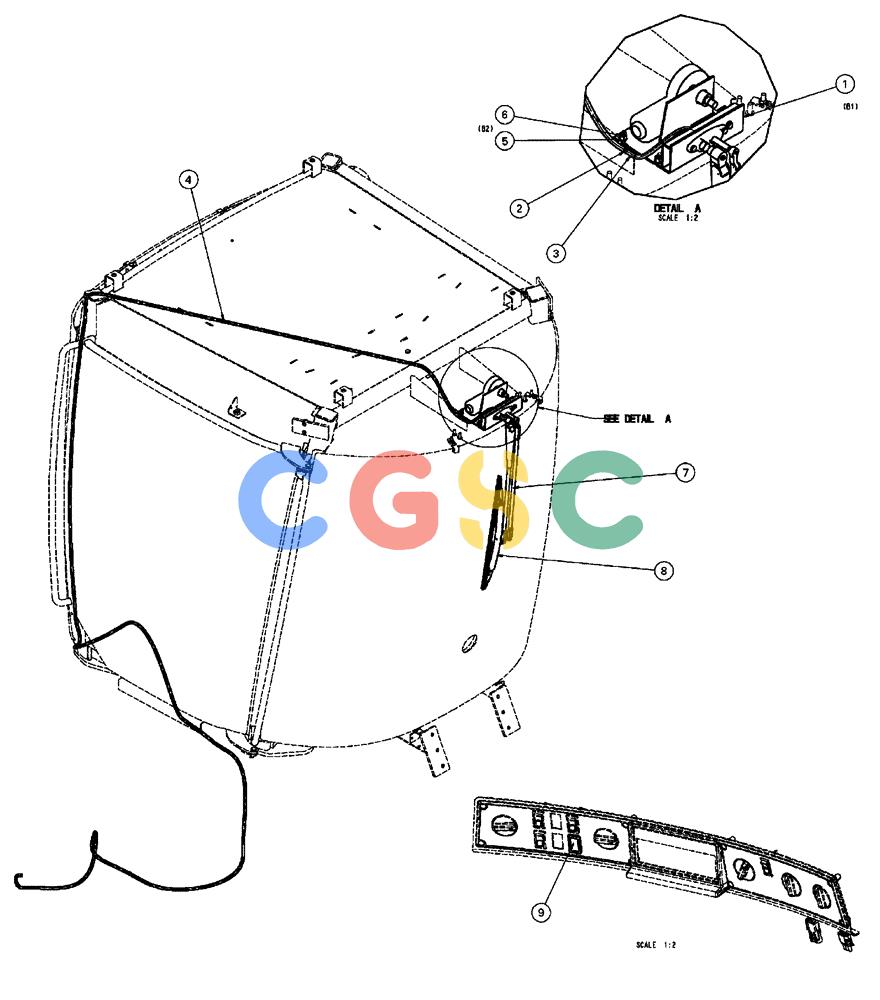

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-015) - FRONT UPPER WIPER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
248812A4
|
[1] |
WIPER MOTOR
|
CAS
MOTOR, WIPER Top, Front & Rear
|
| 2. |
435452A1
|
[1] |
REDUCER FITTING
|
CAS
Black Nylon (Front/Rear)
|
| 3. |
04-1056T1
|
[1] |
HOSE
|
BN
200 mm Superseded by part number: 4-1056
|
| 4. |
31-2936
|
[1] |
HOSE,4.77 mm ID x 4775.20 mm
|
CAS
4775 MM
|
| 5. |
86624184
|
[3] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 6. |
86528579
|
[3] |
NUT,M8 x 1.25
|
WIN
|
| 7. |
87557932
|
[1] |
WIPER ARM
|
FAR
20"
|
| 8. |
353273A1
|
[1] |
BLADE,558.8mm L
|
CAS
Front Wiper, 22"
|
| 9. |
126844A1
|
[1] |
PLUG,1.427” x .62” , Plastic
|
CAS
cover, switch hole Superseded by part number: 86000535
|
