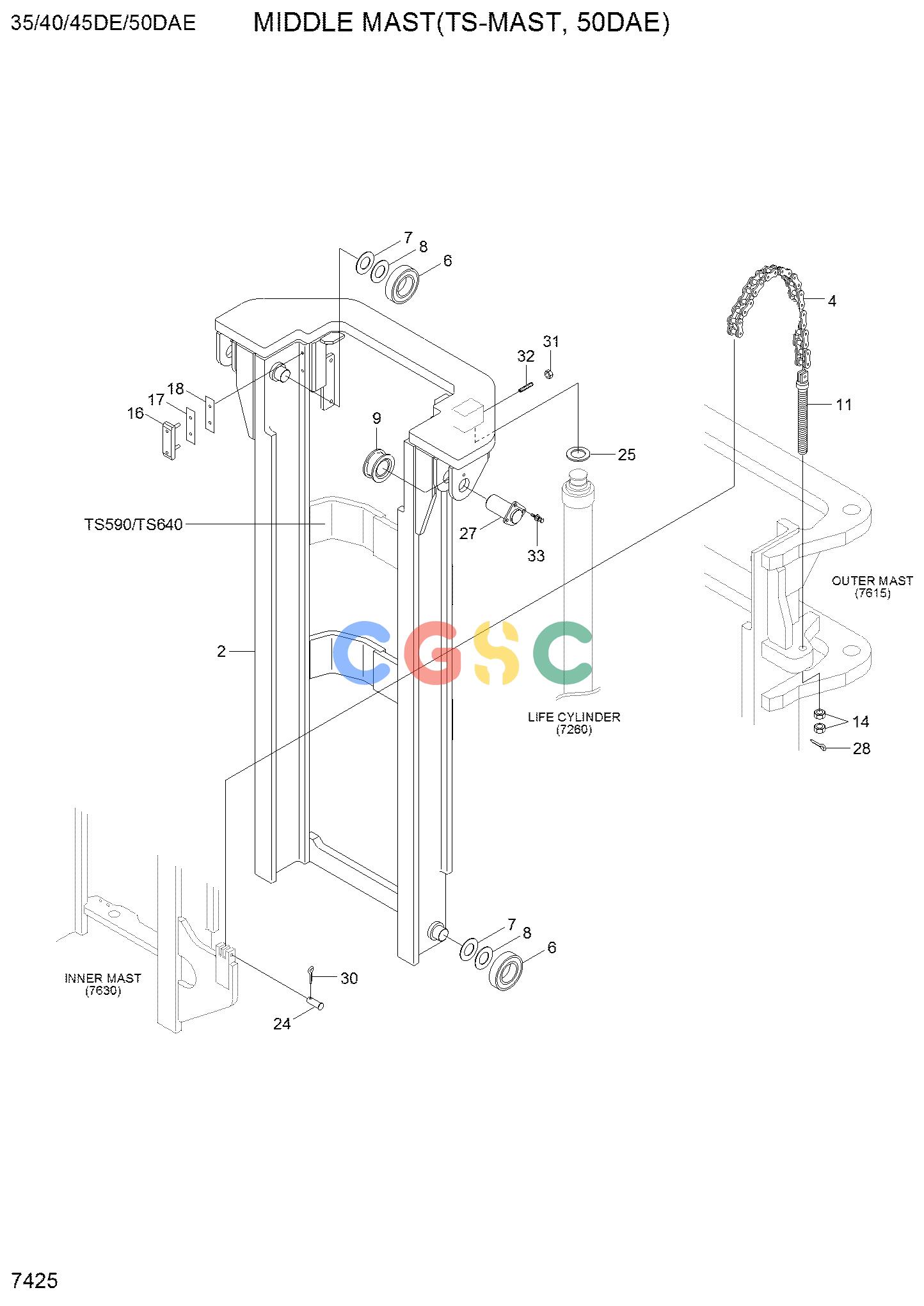

现代零件查询35/40/45DS/50DA-7E MIDDLE MAST (TS-MAST,50DA-7E)EPC Hyundai _现代Hyundai_工程机械

现代零件查询35/40/45DS/50DA-7E MIDDLE MAST (TS-MAST,50DA-7E)EPC Hyundai

广数供应链运营团队, 15 02月, 2025，浏览： 534 次

Pos.	Part No	Qty	Parts name	Comments
2.	6DFV-14010	[1]	MIDDLE MAST WA	TS360
2.	6DFV-14020	[1]	MIDDLE MAST WA	TS390
2.	6DFV-14030	[1]	MIDDLE MAST WA	TS420
2.	6DFV-14040	[1]	MIDDLE MAST WA	TS440
2.	6DFV-14050	[1]	MIDDLE MAST WA	TS460
2.	6DFV-14060	[1]	MIDDLE MAST WA	TS490
2.	6DFV-14070	[1]	MIDDLE MAST WA	TS540
2.	6DFV-14080	[1]	MIDDLE MAST WA	TS590
2.	6DFV-14090	[1]	MIDDLE MAST WA	TS640
4.	61HD-30440	[2]	CHAIN-LIFT/BL844	TS360
4.	61HD-30450	[2]	CHAIN-LIFT/BL844	TS390
4.	61HD-30460	[2]	CHAIN-LIFT/BL844	TS420
4.	61HD-30310	[2]	CHAIN-LIFT/BL844	TS440
4.	61HD-30470	[2]	CHAIN-LIFT/BL844	TS460
4.	61HD-30480	[2]	CHAIN-LIFT/BL844	TS490
4.	61HD-30350	[2]	CHAIN-LIFT/BL844	TS540
4.	61HD-30490	[2]	CHAIN-LIFT/BL844	TS590
4.	61HD-30370	[2]	CHAIN-LIFT/BL844	TS640
4-1.	62FF-18900	[2]	JOINT LINK KIT-CHAIN	NOT SHOWN
6.	6625011800-02	[4]	BEARING-L/ROLLER(127.0)	STD
6.	6625011801-02	[4]	BEARING-L/ROLLER(127.5)	OVERSIZE
6.	6625011802-02	[4]	BEARING-L/ROLLER(126.5)	UNDERSIZE
6.	6625011803-02	[4]	BEARING-L/ROLLER(128.0)
7.	5261101500	[4]	SHIM(1.0T)
8.	5261101400	[4]	SHIM(0.5T)
9.	6DFV-18300	[2]	CHAIN SHEAVE BEARING
11.	61HD-18900	[2]	BOLT-ANCHOR
14.	S206-20100B	[8]	NUT-HEX
16.	61HA-18030	[2]	LINER-BACK UP
17.	FMC0000150	[2]	SHIM(1.0T)
18.	FMC0000160	[2]	SHIM(0.5T)
24.	67HR-18400	[2]	PIN-CHAIN ANCHOR
25.	6DFV-18100	[2]	SHIM
26.	6DFV-18200	[2]	BRACKET WA
27.	6DFV-18500	[2]	PIN WA
28.	S461-500362	[6]	PIN-SPLIT
30.	S461-250202	[2]	PIN-SPLIT
31.	S205-121006	[2]	NUT-HEX
32.	S111-120356	[2]	SCREW-SET HEX SOCKET
33.	S037-102526	[4]	BOLT-W/WASHER
34.	S109-140256	[2]	BOLT-SOCKET
35.	S411-140006	[2]	WASHER-SPRING
36.	S441-140006	[2]	WASHER-HARDENED
