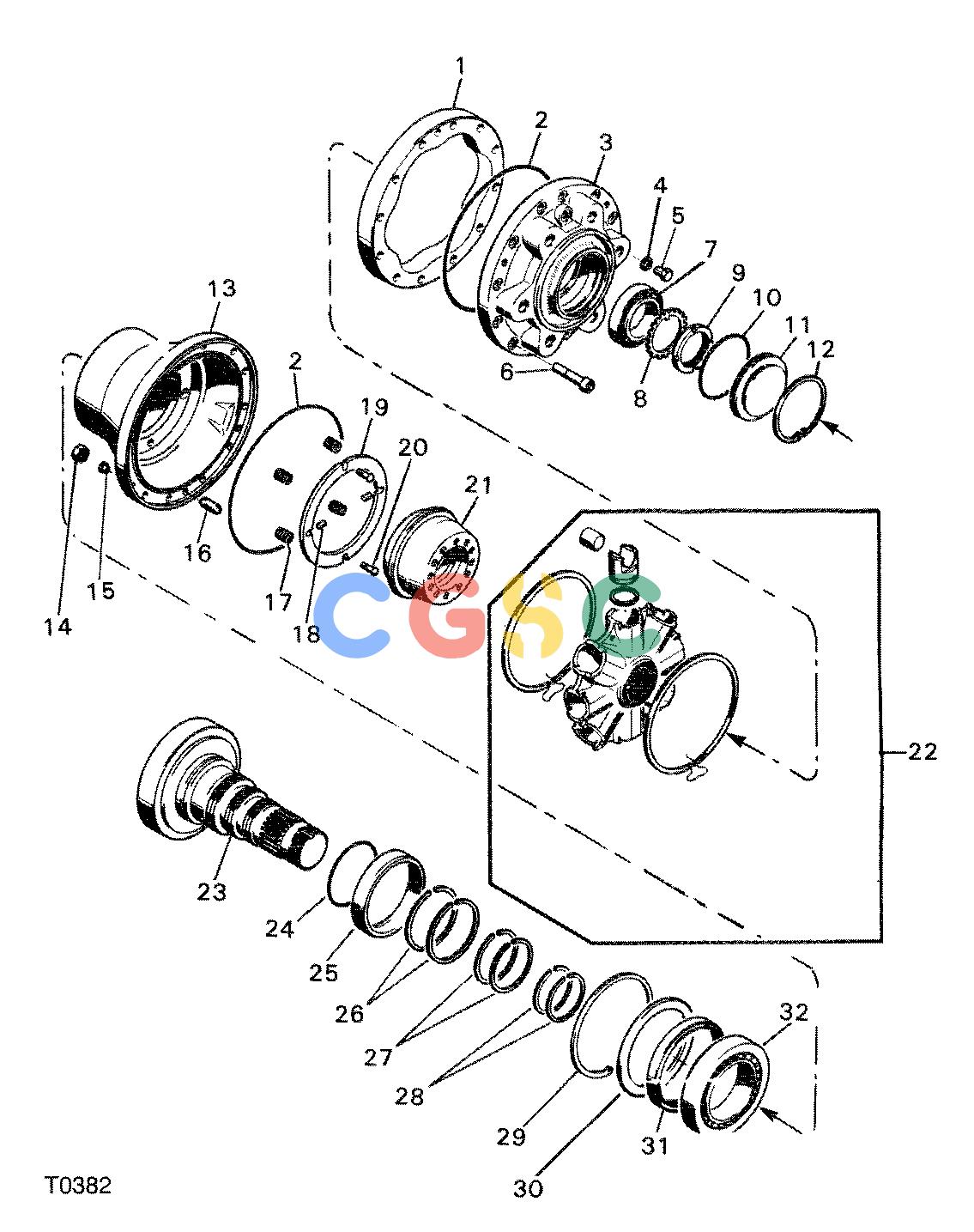

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE HYDRAULIC MOTOR F042683 11 88 T0382 [T0382]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F005561
|
[1] |
Hydraulic Motor
|
|
| |
F032114
|
[1] |
Hydraulic Motor
|
|
| |
F012509
|
[1] |
Hydraulic Motor
|
|
| |
F032115
|
[1] |
Hydraulic Motor
|
|
| 1. |
F034946
|
[1] |
CAM CURVE
|
|
| |
F034947
|
[1] |
CAM CURVE
|
|
| 2. |
F034948
|
[2] |
O-Ring
|
|
| 3. |
F034949
|
[1] |
Cap
|
|
| 4. |
F034950
|
[2] |
Washer
|
|
| 5. |
F034951
|
[2] |
Screw
|
|
| 6. |
F034952
|
[12] |
Screw
|
|
| 7. |
F034953
|
[1] |
Bearing
|
|
| 8. |
F034954
|
[1] |
Lock Washer
|
|
| 9. |
F034955
|
[1] |
Lock Nut
|
|
| 10. |
F034956
|
[1] |
O-Ring
|
|
| 11. |
F034957
|
[1] |
Cap
|
|
| 12. |
F034958
|
|
CIRCLIP
|
|
| 13. |
F034959
|
[1] |
Housing
|
|
| 14. |
F034960
|
[12] |
Nut
|
|
| 15. |
F034961
|
[6] |
CONE
|
|
| 16. |
F034962
|
[1] |
GUIDING PIN
|
|
| 17. |
F034963
|
[4] |
Spring
|
|
| 18. |
F034964
|
[2] |
GUIDING PIN
|
|
| 19. |
F034965
|
[1] |
SPRING RETAINER
|
|
| 20. |
F034966
|
[2] |
GUIDING PIN
|
|
| 21. |
-------
|
[1] |
Housing
|
|
| 22. |
F034967
|
[1] |
HOUSING ASSY
|
|
| 23. |
F017978
|
[1] |
Shaft
|
|
| |
F032118
|
[1] |
Shaft
|
|
| 24. |
F026186
|
[1] |
O-Ring
|
|
| 25. |
F034968
|
[1] |
SPACER RING
|
|
| 26. |
F034969
|
[2] |
Piston Ring
|
|
| 27. |
F034970
|
[2] |
Piston Ring
|
|
| 28. |
F034971
|
[2] |
Piston Ring
|
|
| 29. |
F003379
|
[1] |
CIRCLIP
|
|
| 30. |
F034973
|
[1] |
Washer
|
|
| 31. |
F034974
|
[1] |
Seal
|
|
| 32. |
F003809
|
[1] |
Roller Bearing
|
|
| |
F005624
|
[1] |
Seal Kit
|
|
