神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-033) - CONTROL LINES - VALVE, P/N YM64H00032F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
933 次

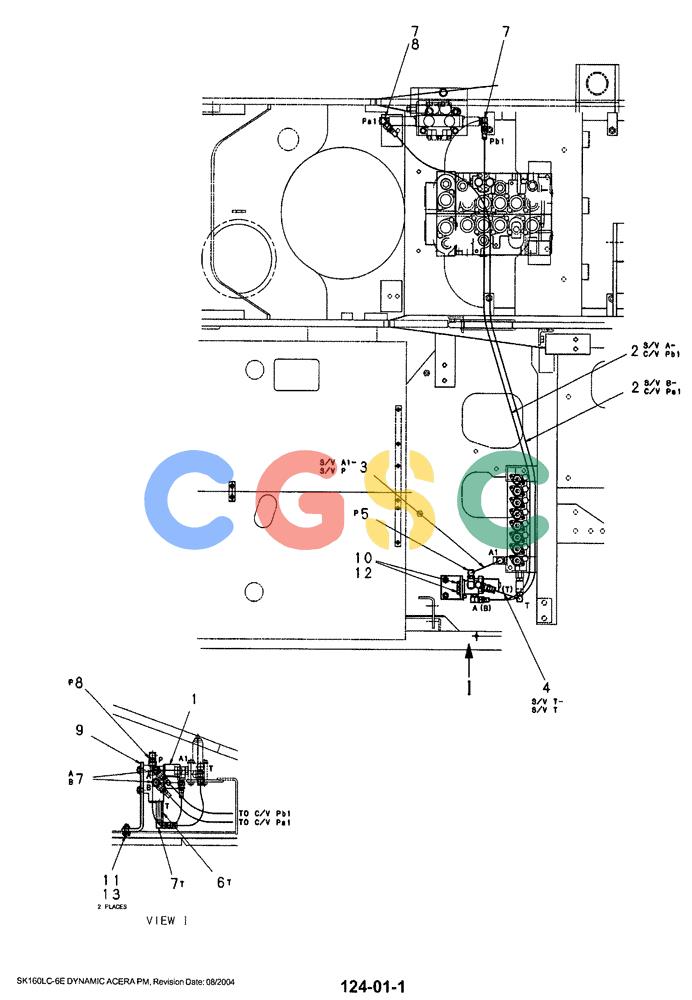

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONCONTROL LINES - VALVE |
| . . | YM64H00032F1 | [1] | CONTROL BLOCK | KOBCONTROL LINES, VALVE (ROT&ROTN&B) |
| 1. | LC35V00004F2 | [1] | SOLENOID VALVE | KOB |
| 2. | 2420R349D270 | [2] | HOSE | KOBPF1/4 2700mm Long (106-19/64 in) |
| 3. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) |
| 4. | 2444R1120D030 | [1] | HOSE | KOBPF 1/4, 300mm Long (11-13/16 in) |
| 5. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 6. | HH25R04004G3 | [1] | CONNECTION | KOB1/4"PFx72mm Long (Incls. O-Ring ZD12P01100) |
| 7. | ZH32X04000 | [5] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 8. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| 9. | YM64H01023P1 | [1] | BRACKET | KOB |
| 10. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 11. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 12. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 13. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
