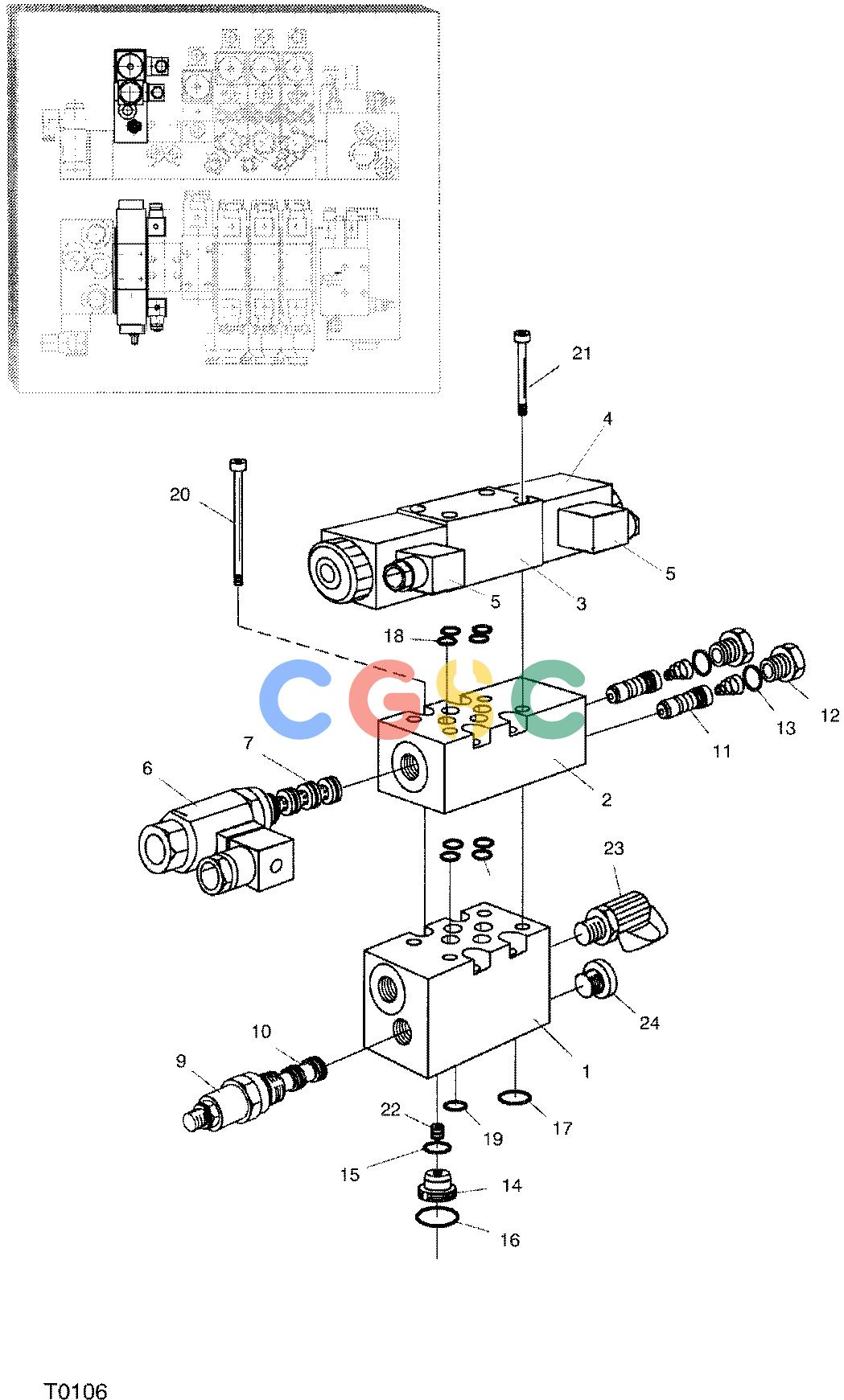

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE VALVE BLOCK SECTION F042683 11 20 T0106 [T0106]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
437 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F039196
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F018773
|
[1] |
VALVE BLOCK
|
|
| 2. |
F035765
|
[1] |
BLOCK
|
|
| 3. |
F018780
|
[1] |
Control Valve
|
|
| 4. |
F038500
|
[2] |
Solenoid
|
|
| 5. |
F004578
|
[2] |
Connector
|
|
| 6. |
F035766
|
[1] |
Valve
|
|
| 7. |
F039180
|
[1] |
Seal Kit
|
|
| 8. |
F004578
|
[1] |
Connector
|
|
| 9. |
F046811
|
[1] |
REDUCING VALVE
|
|
| 10. |
F017725
|
[1] |
Seal Kit
|
|
| 11. |
F011375
|
[2] |
RELIEF CARTRIDGE
|
|
| 12. |
F039179
|
[2] |
Cap
|
|
| 13. |
F021653
|
[2] |
O-Ring
|
|
| 14. |
F018776
|
[1] |
Check Valve
|
|
| 15. |
F021607
|
[1] |
O-Ring
|
|
| 16. |
F018768
|
[1] |
O-Ring
|
|
| 17. |
F018771
|
[1] |
O-Ring
|
|
| 18. |
F003286
|
[8] |
O-Ring
|
|
| 19. |
F003285
|
[1] |
O-Ring
|
|
| 20. |
F032093
|
[4] |
Screw
|
|
| 21. |
F008644
|
[4] |
Screw
|
|
| 22. |
F024840
|
[1] |
THROTTLE SCREW
|
|
| 23. |
F025711
|
[1] |
MEASURING NIPPLE
|
|
| 24. |
F018111
|
[1] |
Plug
|
|
