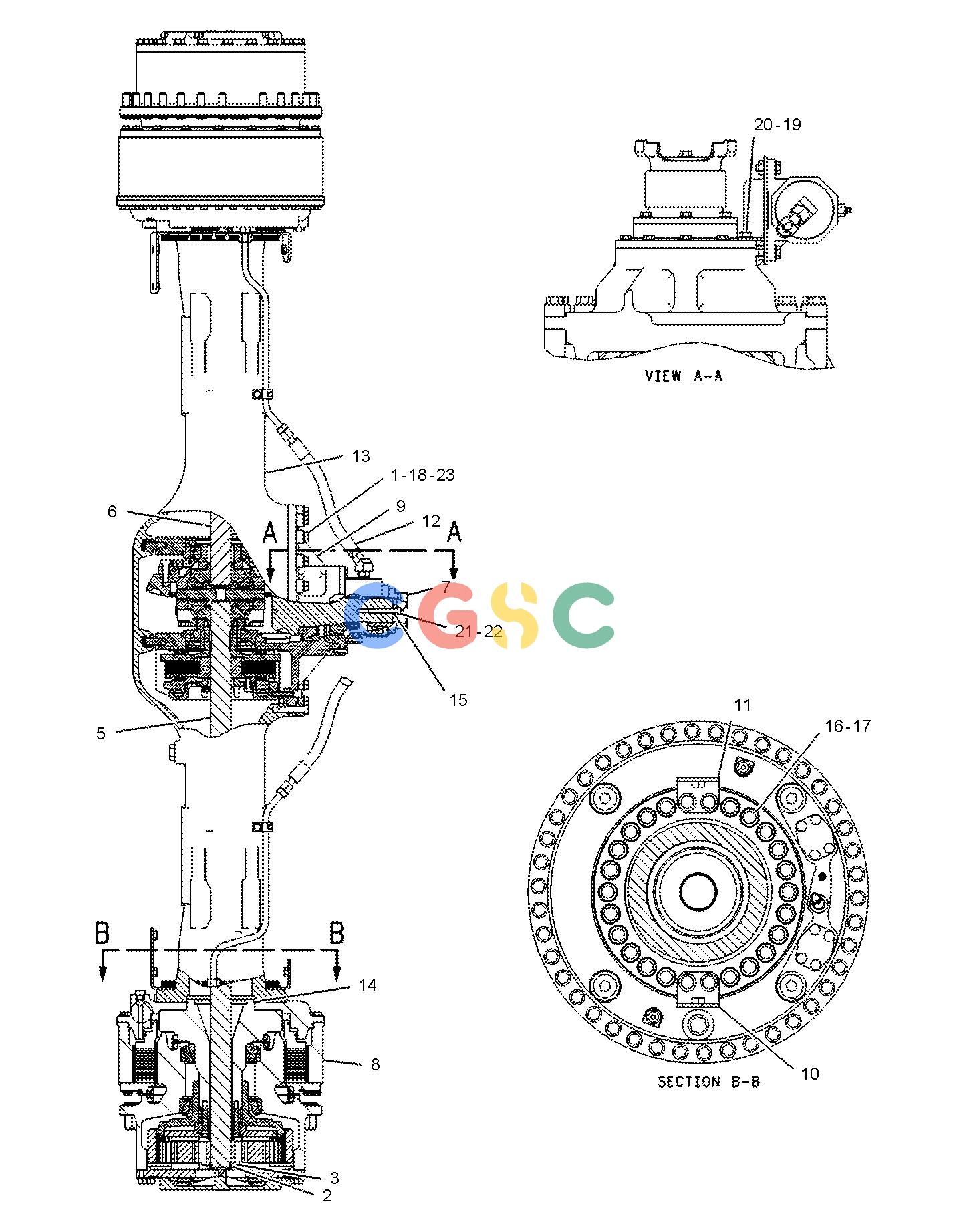

卡特零件查询（735） 152-4400: AXLE GP-CENTER
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8G-5258 | [25] | SPACER(17X35X20-MM THK) | |
| 2. | 8K-6464 | [2] | RING-RETAINING | |
| 3. | 9U-3125 | [2] | GEAR-SUN(16-TEETH) | |
| 5. | 138-1498 | [1] | SHAFT | |
| 6. | 138-4117 | [1] | RETAINER-BEARING | |
| 7. | 138-4121 | [1] | CAGE-BEARING | |
| 8. | 139-2133 | [1] | YOKE AS | |
| | 132-0920 | [1] | GUARD | |
| 9. | 139-2147 | [1] | SHAFT | |
| 10. | 139-2148 | [1] | SHAFT | |
| 11. | 141-8891 | [2] | CONE-BEARING | |
| 12. | 141-8892 | [2] | CUP-BEARING | |
| 13. | 147-5540Y | [2] | WHEEL GP-FINAL DRIVE & BRAKE | |
| 14. | 151-6899 | [2] | BRACKET AS | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 15. | 151-6901 | [2] | BRACKET AS | |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 16. | 152-4390Y | [1] | DIFFERENTIAL & BEVEL GEAR GP | |
| 17. | 159-4637 | [1] | YOKE AS | |
| 18. | 162-7183 | [1] | SEAL-LIP TYPE | |
| 19. | 188-3777 | [1] | DISC | |
| 20. | 190-6280Y | [1] | LINES GP-SERVICE BRAKE | |
| 21. | 194-7819 | [1] | SPACER(76.5X87X4-MM THK) | |
| 22. | 196-7243 | [1] | LOCKNUT AS(2.75X18-THD) | |
| 23. | 205-0200 | [1] | HOUSING AS-AXLE | |
| | 5P-4483 | [1] | PLUG | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 5P-4484 | [1] | PLUG-MAGNETIC(AXLE HOUSING) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 160-6213 | [1] | BUSHING | |
| 24. | 2K-2939 | [2] | SEAL-O-RING | |
| 25. | 4F-7391 | [1] | SEAL-O-RING | |
| 26. | 5H-3252 | [2] | SEAL-O-RING | |
| 27. | 6V-2360 | [52] | WASHER-HARD(20X32X3-MM THK) | |
| 28. | 6V-2881 | [52] | BOLT(3/4-10X3.5-IN) | |
| 29. | 7X-2454M | [1] | BOLT(M24X3X110-MM) | |
| 30. | 7X-2554M | [25] | BOLT(M16X2X70-MM) | |
| 31. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 32. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 33. | 8T-4167 | [1] | WASHER-HARD(26X44X4-MM THK) | |
| 34. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 35. | 8T-4193M | [2] | BOLT(M16X2X50-MM) | |
| 36. | 8T-4944M | [20] | BOLT-SOCKET HEAD(M16X2X40-MM) | |
| 37. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 38. | 9X-8257 | [47] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
