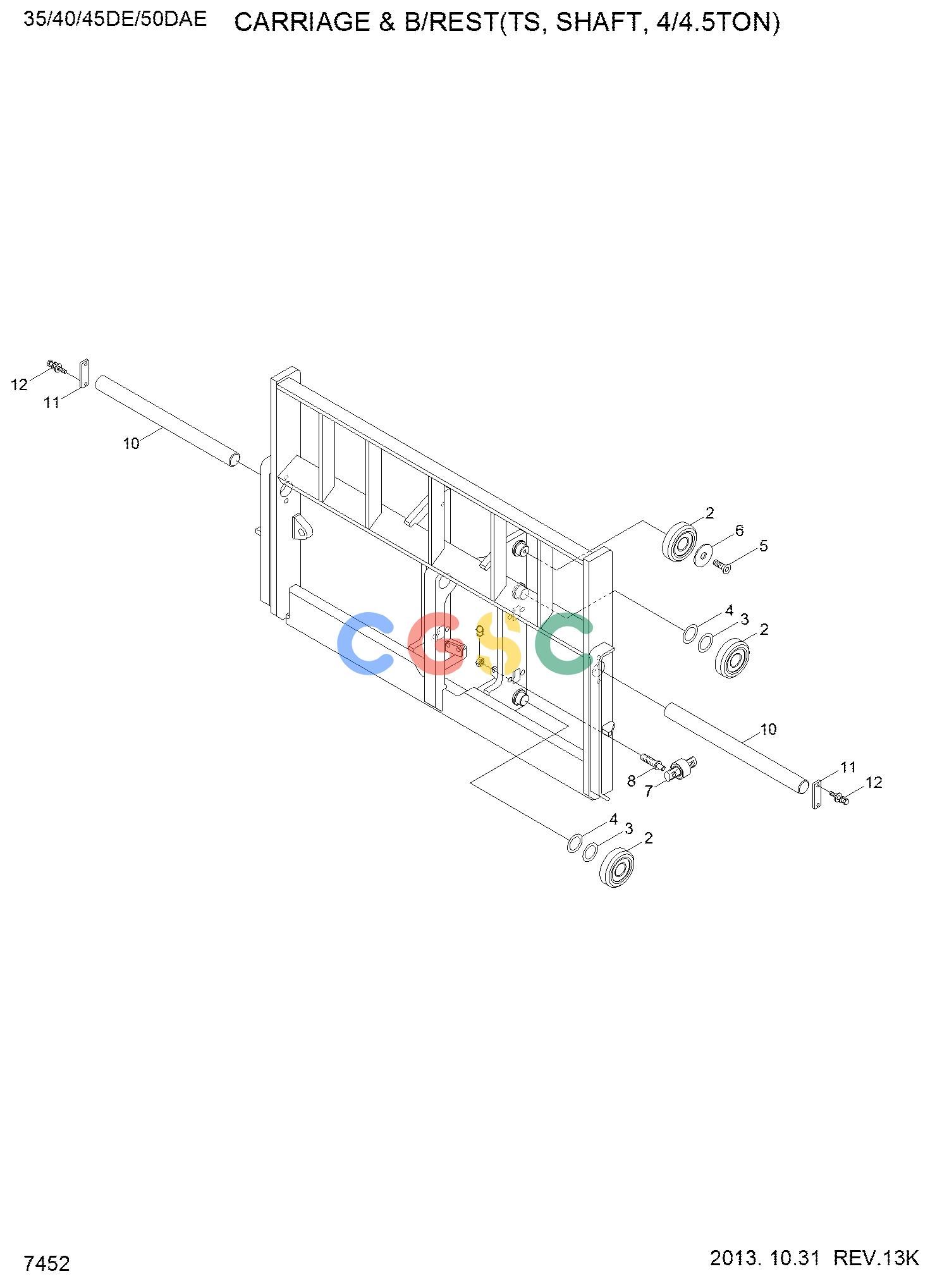

现代零件查询35/40/45DS/50DA-7E CARRIAGE & B/REST(TS,SHAFT, 4/4.5TON)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
6DFV-58020
|
[1] |
CARR & BACKREST ASSY
|
|
| . |
6DFV-58020
|
[1] |
CARR & BACKREST ASSY
|
|
| 1. |
6DFV-56020
|
[1] |
CARRIAGE WA
|
|
| 2. |
6625011800-02
|
[6] |
BEARING-L/ROLLER(127.0)
|
|
| 2. |
6625011801-02
|
[6] |
BEARING-L/ROLLER(127.5)
|
|
| 2. |
6625011802-02
|
[6] |
BEARING-L/ROLLER(126.5)
|
|
| 2. |
6625011803-02
|
[6] |
BEARING-L/ROLLER(128.0)
|
|
| 2. |
6625011802-02
|
[6] |
BEARING-L/ROLLER(126.5)
|
|
| 2. |
6625011803-02
|
[6] |
BEARING-L/ROLLER(128.0)
|
|
| 3. |
5261101400
|
[4] |
SHIM(0.5T)
|
|
| 4. |
5261101500
|
[4] |
SHIM(1.0T)
|
|
| 5. |
61F7-28010
|
[2] |
BOLT-FLAT HD
|
|
| 6. |
61F7-28021
|
[2] |
WASHER-RETAINING
|
|
| 7. |
61FE-28100
|
[4] |
BEARING-SIDE ROLLER
|
|
| 8. |
61FB-28040
|
[8] |
SCREW-ADJUST
|
|
| 9. |
S205-16100B
|
[8] |
NUT-HEX
|
|
| 10. |
6DFV-48110
|
[2] |
HANGER BAR-FORK
|
|
| 11. |
61FQ-25100
|
[2] |
COVER
|
|
| 12. |
S037-123526
|
[4] |
BOLT-W/WASHER
|
|
