神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-036[02]) - CONTROL LINES, BLOCK (PT STD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
586 次

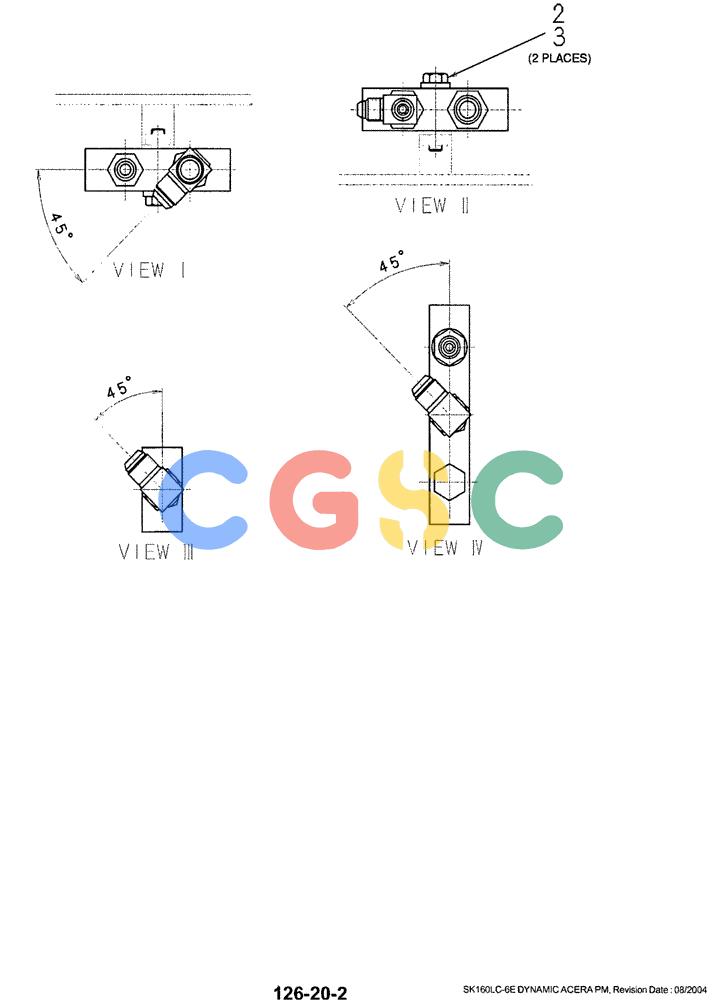

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN64H00141F1 | [1] | CONTROL | KOBCONTROL LINES, BLOCK (PT STD) |
| . . | YN64H00141F2 | [1] | CONTROL BLOCK | KOBCONTROL LINES, BLOCK (PT 2WAY) |
| . . | YN64H00141F3 | [1] | CONTROL BLOCK | KOBCONTROL LINES, BLOCK (PT EXTRA OR ROT) |
| 1. | YR64H01009P1 | [1] | BLOCK | KOBFOR F1 ONLY |
| 2. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 3. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 4. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 5. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| 6. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 7. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100), FOR F2 Only |
| 8. | 2444T2505 | [1] | HYD CONNECTOR | KOB1/4" PF - 3/8" PF x 35mm Long (Incls. O-Ring ZD12P01400), FOR F1 ONLY |
| 9. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 9-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 10. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400), FOR F2 Only |
| 11. | 2416N6141 | [1] | BLOCK | KOBFOR F2&F3 ONLY |
| 12. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100), FOR F2 Only |
| 13. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400), FOR F2,&F3 Only |
| 14. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006), FOR F1 Only |
