| . . | NSS | [1] | NOT SOLD SEPARAT | CONCONTROL LINES - REMOTE |
| . . | YM68H00010F1 | [1] | CONTROL | KOBCONTROL LINES, REMOTE (2 WAY FLOW - N&B) |
| A1. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A2. | HH25X04004G2 | [1] | HYD CONNECTOR | KOBPF 1/4, (Incls. O-Ring ZD12P01100) |
| A3. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A4. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A5. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| A6. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A7. | YX52S00010P1 | [1] | SENSOR | KOBPressure (PF 1/4) Superseded by part number: LC52S00019P1 |
| A7-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| A8. | 2420R349D085 | [1] | HOSE,6.35mm ID x 850mm L | KOB850mm Long (33-29/64 in) |
| A9. | 2444R1120D110 | [1] | HOSE | KOB(1/4" PF) 1100mm Long (43-19/64 in) |

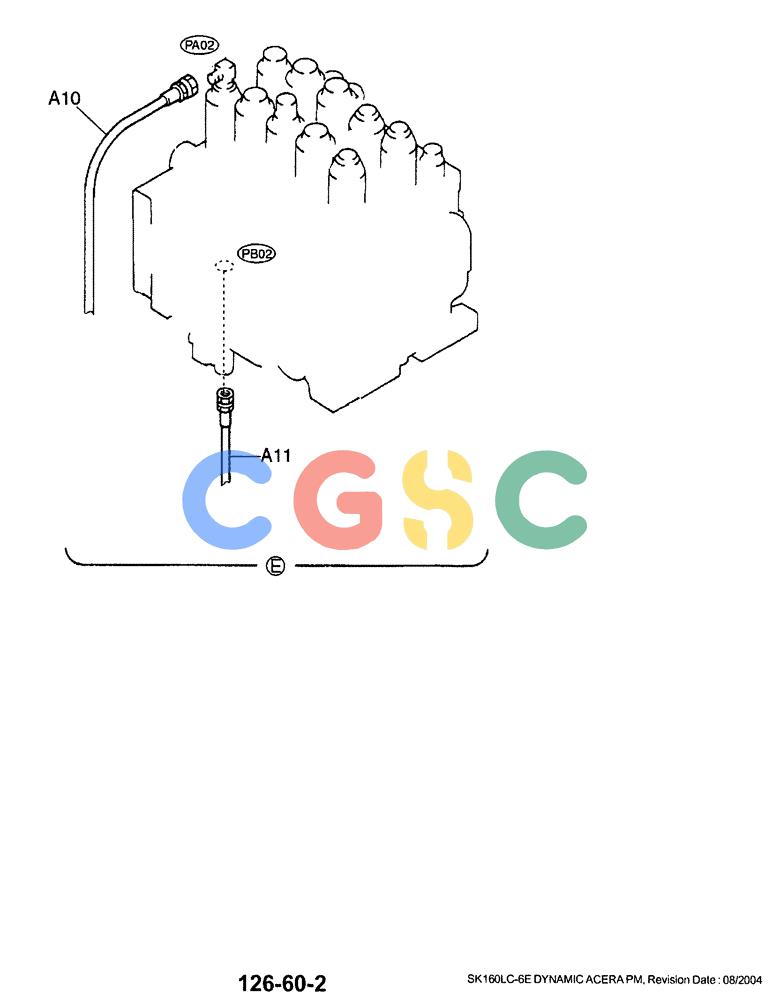

| A10. | 2420R349D315 | [1] | HOSE | KOB(PF 1/4) 3150mm Long (124 in) |
| A11. | 2420R349D280 | [1] | HOSE | KOBPF 1/4 Superseded by part number: HX21E04280DX |
| A12. | YN68H01035P1 | [2] | CLAMP | KOB |
| A13. | ZS18C08065 | [4] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| A14. | ZW16X08000 | [7] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A15. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| A16. | PY03M01026P1 | [1] | PIN | KOBM08x1.25x115mm Long |
| A17. | ZS28C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| A18. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A19. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| A20. | YT30M01002F1 | [1] | LOCK | KOBAssembly -- Right Hand |
| A20-1. | PY30M01004P1 | [1] | SUPPORT | KOB |
| A20-2. | YT30M01004P1 | [1] | LOCK | KOB |
| A20-3. | PM55M01012P1 | [1] | PIN | KOB |
| A20-4. | HP26T09002G1 | [1] | SPRING | KOB |
| A20-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A20-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| A21. | YN03M01319P1 | [1] | PEDAL | KOB |
| A22. | YN30V00080F1 | [1] | VALVE | KOB |
| A23. | YN03M01266P2 | [1] | RUBBER SLEEVE | KOB |
| . . | YN64H00141F2 | [1] | CONTROL BLOCK | KOBCONTROL LINES, BLOCK (PT 2 WAY-1 PEDAL) |
| B2. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| B3. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B4. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| B5. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| B6. | ZH22X06000 | [2] | HYD CONNECTOR | KOBPF3/8(Incls. O-Ring ZD12P01400) |
| B7. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B9. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B10. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| B11. | 2416N6141 | [1] | BLOCK | KOB |
| B12. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| B13. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
