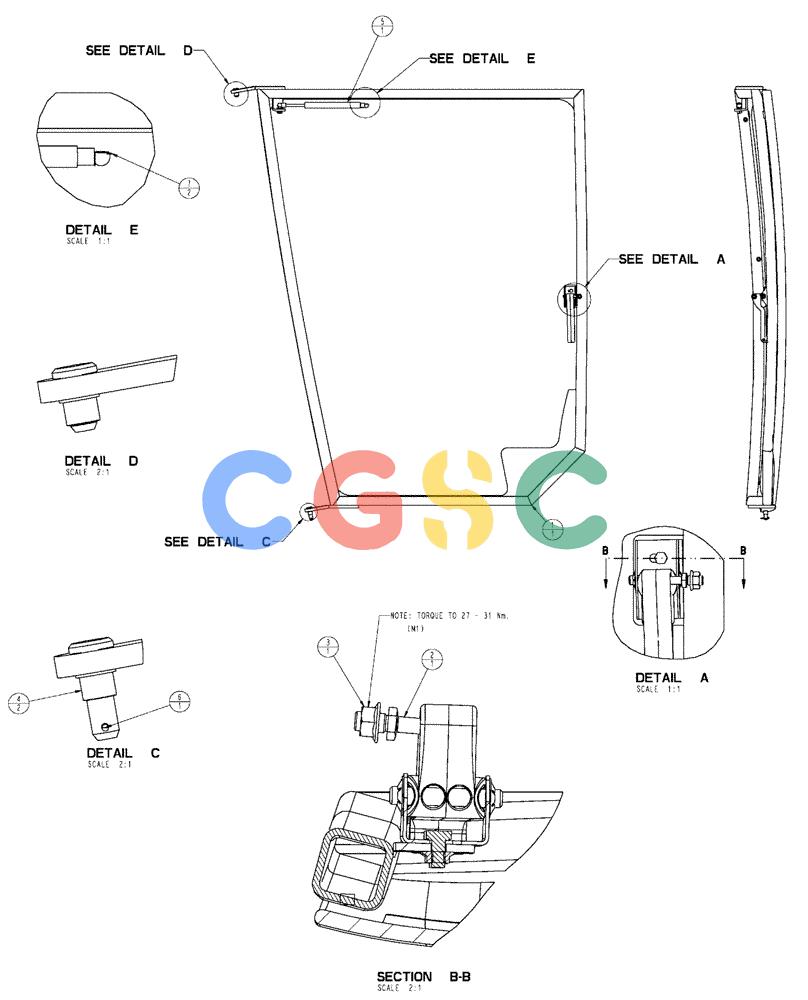

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-021[01]) - RH CAB WINDOW GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
365 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
389175A2
|
[1] |
WINDOW ASSY
|
CAS
Superseded by part number: 87423532, 389175A3
|
| 2. |
87423532
|
[1] |
PIN
|
FAR
RH Door Catch
|
| 3. |
86050303
|
[1] |
NUT
|
WIN
M8 x 1.25, Flg, Cl 8 Superseded by part number: 87681210
|
| 4. |
87429877
|
[2] |
BUSHING,12.01mm ID x 15.06mm OD x 8mm L
|
FAR
Flanged
|
| 5. |
356845A1
|
[1] |
GAS STRUT,383mm Extended, 253mm Compressed
|
CAS
Spring, Gas
|
| 6. |
130003
|
[1] |
COTTER PIN,3mm OD x 30mm OAL
|
ZED
|
| 7. |
9849996
|
[2] |
CLIP
|
WIN
Retainer Ball Stud
|
