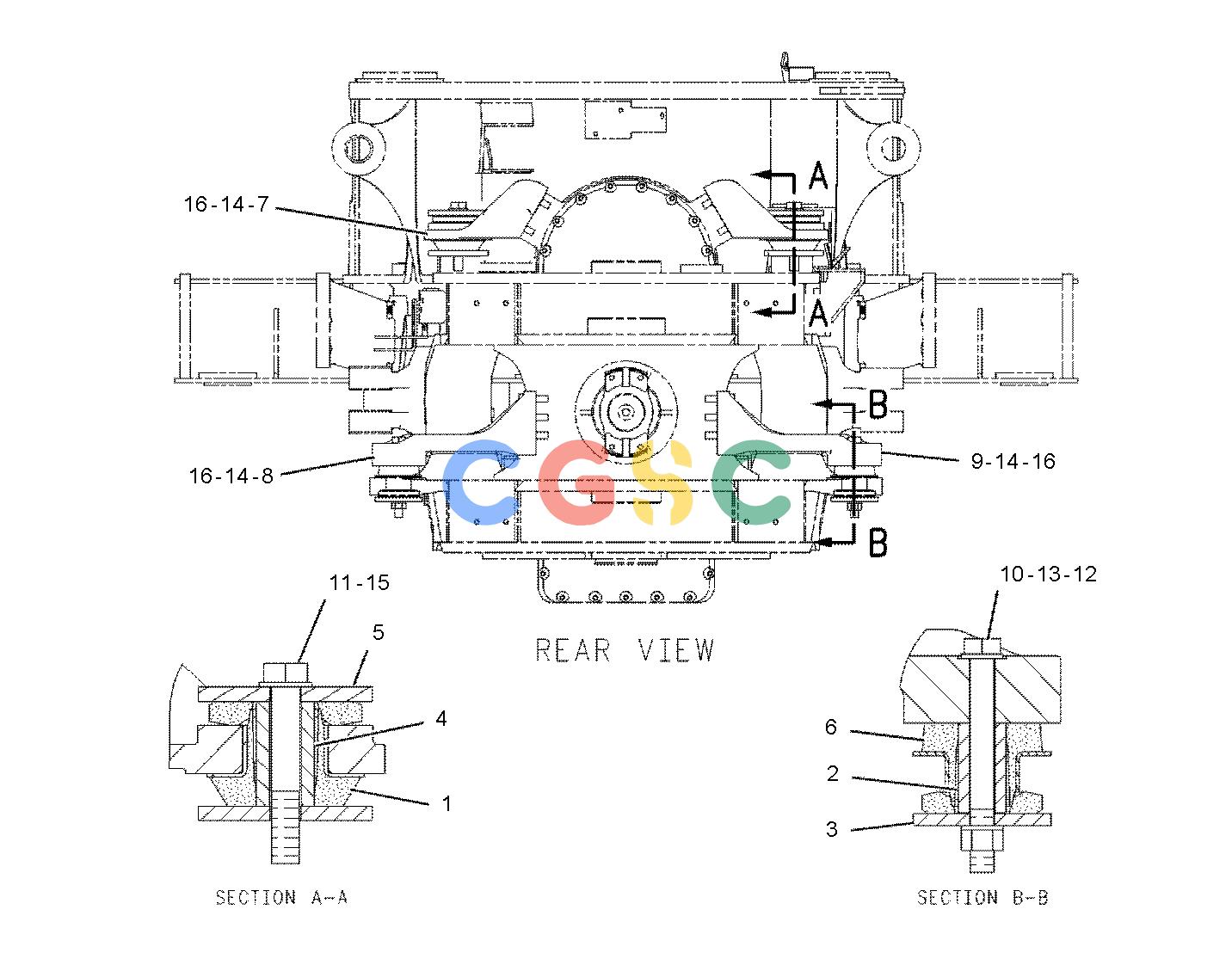

卡特零件查询（735） 153-1124: LINES GP-POWER TRAIN COOLER
广数供应链运营团队, 15 02月, 2025，浏览：
269 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 194-3808 | [1] | TUBE AS | |
| 2. | 194-3810 | [1] | TUBE AS | |
| 3. | 1P-3704 | [2] | SEAL-RECTANGULAR | |
| 4. | 1P-3705 | [1] | SEAL-RECTANGULAR | |
| 5. | 1P-4579 | [2] | FLANGE-HALF | |
| 6. | 1P-5762 | [2] | FLANGE-HALF | |
| 7. | 4J-0524 | [1] | SEAL-O-RING | |
| 8. | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 8J-0426 | [1] | PLUG | |
| 10. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4835 | [4] | BOLT(1/2-13X2-IN) | |
| 13. | 8T-5005M | [8] | BOLT(M10X1.5X70-MM) | |
| 14. | 8T-8919 | [4] | BOLT(1/2-13X1.75-IN) | |
| | M | | METRIC PART |
