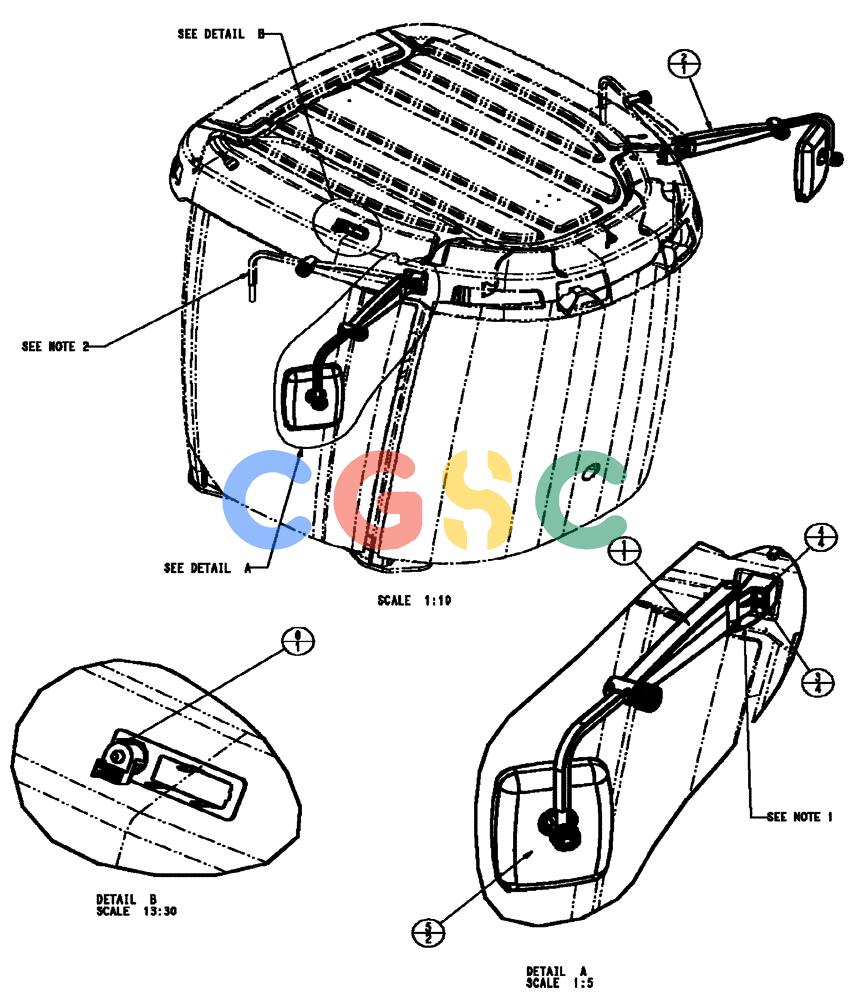

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-031) - ELECTRIC MIRROR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87268227
|
[1] |
ARM
|
BN
Mirror, RH Electric Superseded by part number: 87686673
|
| 2. |
313142A1
|
[1] |
ARM
|
CAS
Mirror, LH Electric Superseded by part number: 87363077
|
| 3. |
896-19012
|
[4] |
WASHER,M12 x 24.5 x 3, HT
|
CAS
Superseded by part number: 86639330
|
| 4. |
514-865
|
[4] |
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
|
CAS
|
| 5. |
360580A1
|
[2] |
MIRROR,238mm x 328mm
|
CAS
Head, Electrical
|
| 6. |
280627A1
|
[1] |
SWITCH, MIRROR ADJUS
|
CAS
power
|
