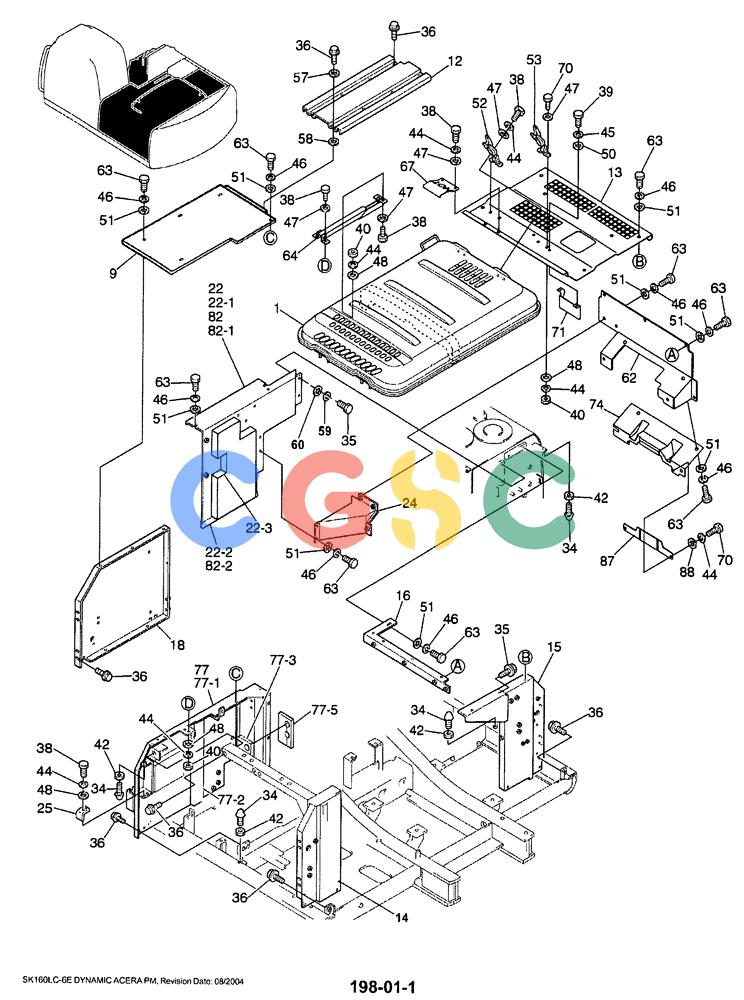

| . . | YM21C00004F1 | [1] | GUARD INSTAL (BASIC UNIT FOR ALL) | |
| . . | YM21C00004F2 | [1] | GUARD | KOBGUARD INSTAL (STD-ADD TO BASE) |
| . . | YM21C00004F4 | [1] | GUARD INSTAL (W/OJD) | |
| . . | YM21C00004F5 | [1] | GUARD INSTAL (NOT TROPIC) | |
| . . | YM21C00004F7 | [1] | GUARD INSTAL (TROPIC) | |
| . . | YM21C00004F8 | [1] | GUARD INSTAL (NOT TROPIC) | |
| . . | YM21C00004F9 | [1] | GUARD INSTAL (TROPIC) | |
| 1. | YM22C00006F1 | [1] | COVER | KOBBONNET ASSY |
| 4. | YM21C01193F1 | [1] | PANEL ASSY. | KOBFOR F5 ONLY |
| 4-1. | YM21C01194P1 | [1] | PANEL | KOBFOR F5 ONLY Superseded by part number: YM21C01194P2 |
| 4-1-7. | YN21C01658P1 | [2] | HINGE | KOBFOR F5 ONLY |
| 4-1-8. | 2427R703F1 | [1] | LOCK | KOBFOR F5 ONLY Superseded by part number: 2421R175F2 |
| 4-1-9. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm, FOR F5 Only Superseded by part number: ZS18C10025 |
| 4-2. | YM21C01139P1 | [1] | FOAM INSULATION | KOBFOR F5 ONLY |
| 4-3. | YN21C02048P1 | [1] | RUBBER | KOB25x54x280mm Long, FOR F5 Only |
| 4-4. | YM21C01140P1 | [1] | INSULATING PANEL | KOBFOR F5 ONLY |
| 4-5. | YN21C01814D1 | [1] | RUBBER | KOB06x40x53mm Long, FOR F5 Only |

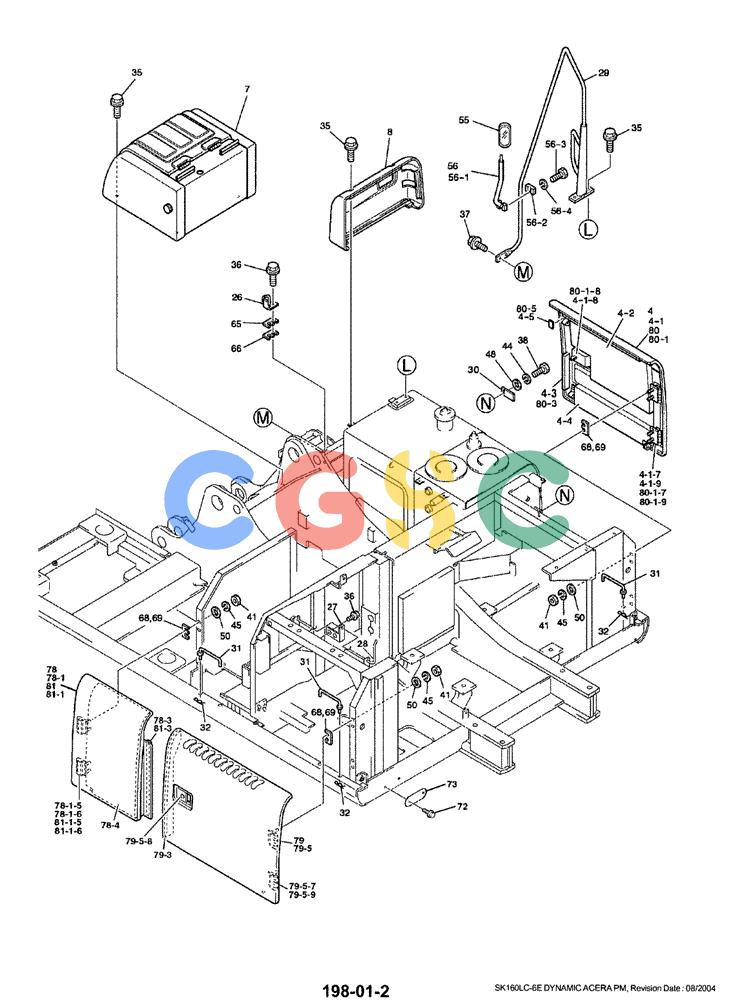

| 7. | YM21C01157F1 | [1] | COVER ASSY | KOBCOVER ASSY,FOR F2 ONLY |
| 8. | YM21C01158P1 | [1] | GUARD | KOBFOR F2 ONLY |
| 9. | YM21C01149P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 12. | YM21C01018P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 13. | YM21C01153P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 14. | YM21C01148P2 | [1] | BRACKET | KOBFOR F1 ONLY |
| 15. | YM21C01150P1 | [1] | BRACKET | KOBFOR F1 ONLY Superseded by part number: YM21C01150P2 |
| 16. | YM21C01154P1 | [1] | U-BRACKET | KOBFOR F1 ONLY |
| 18. | YM21C01152F1 | [1] | U-BRACKET | KOBFOR F1 ONLY |
| 22. | YM21C01141F1 | [1] | GUARD | KOBFOR F8 ONLY |
| 22-1. | YM21C01142P1 | [1] | GUARD | KOBGUARD,FOR F8 ONLY |
| 22-2. | YJ21C01079D1 | [1] | INSULATING PANEL | KOB95mm Long (3-3/4 in), FOR F8 Only |
| 22-3. | YM21C01177P1 | [1] | INSULATING PANEL | KOBINSULATION,FOR F8 ONLY |
| 24. | YM21C01155P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 25. | YN21C01714P1 | [1] | PLATE | KOBFOR F1 ONLY |
| 26. | YN21C02115P1 | [1] | STRIKER PLATE | KOBFOR F1 ONLY |
| 27. | YN21C01977P1 | [1] | PLATE | KOBFOR F1 ONLY |
| 28. | YM21C01035P1 | [1] | SPRING | KOBFOR F1 ONLY |
| 29. | YN21C01820P1 | [1] | HANDRAIL | KOBFOR F1 ONLY |
| 30. | YN21C01976P1 | [1] | PLATE | KOBFOR F1 ONLYE |
| 31. | 2416T6289D2 | [3] | STAY | KOBFOR F1 ONLY |
| 32. | 2419R9D2 | [3] | COTTER PIN | KOBOD 08mm x 27.7mm Long, FOR F1 ONLY |
| 34. | YN21C01321P1 | [4] | STOP | KOBFOR F1 ONLY Superseded by part number: YN21C03212P1 |
| 35. | ZM32C12025 | [14] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher), FOR F1 Only |
| 36. | ZM32C12030 | [22] | BOLT | KOBM12x1.75x30mm (Incls. Washer & Lockwasher), FOR F1 Only |
| 37. | YN02C01299P1 | [2] | BOLT | KOBM12x1.75x35mm (Incls. Washer & Lockwasher), FOR F1 Only |
| 38. | ZS18C08025 | [14] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm, FOR F1 Only |
| 39. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, FOR F1 Only |
| 40. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm, FOR F1 Only |
| 41. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm, FOR F1 Only |
| 42. | ZN18F10008 | [4] | NUT | KOBM10x1.25mm, FOR F1 Only |
| 43. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm, FOR F1 Only |
| 44. | ZW26X08000 | [22] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, FOR F1 Only Superseded by part number: 83990583 |
| 45. | ZW26X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, FOR F1 Only |
| 46. | ZW26X12000 | [31] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, FOR F1 Only |
| 47. | ZW16X08000 | [16] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm, FOR F1 Only |
| 48. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm, FOR F1 Only |
| 50. | 2418T12346 | [14] | WASHER | KOBID 11 x OD 30 x Th 3.2mm, FOR F1 ONLY |
| 51. | 2418T10357 | [31] | WASHER | KOBID 13 x OD 30 x Th 3.2mm, FOR F1 ONLY Superseded by part number: 2418T12345 |
| 52. | 2427R475 | [1] | CATCH | KOBFOR F1 ONLY Superseded by part number: YN21C02226P1 |
| 53. | 2427R302D2 | [1] | CATCH | KOBFOR F1 ONLY |
| 55. | 2456R351 | [1] | MIRROR | KOBFOR F2 ONLY |
| 56. | 24100P3750F1 | [1] | STAY | KOBSTAY ASSY, FOR F2 ONLY |
| 56-1. | 2416P18523 | [1] | STAY | KOBSTAY, FOR F2 ONLY |
| 56-2. | 2432T4113D2 | [1] | CLAMP | KOBFOR F2 ONLY |
| 56-3. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm, FOR F2 Only |
| 56-4. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, FOR F2 Only Superseded by part number: 83990583 |
| 57. | YN21C01395P1 | [2] | WASHER | KOBID 23 x OD 38 x Th 2.0mm, FOR F1 Only |
| 58. | YN21C01396P1 | [2] | WASHER | KOBID 13 x OD 22 x Th 4.5mm, FOR F1 Only |
| 59. | YN21C02138P1 | [2] | WASHER | KOBID 12.40 x OD 38 x Th 6.0mm, FOR F1 Only |
| 60. | YN21C02147P1 | [2] | WASHER | KOBID 17.60 x OD 32.50 x Th 1.5mm, FOR F1 Only |
| 62. | YM21C01206P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 63. | ZS18C12025 | [27] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm, FOR F1 Only |
| 64. | YM21C01036P1 | [1] | STAY | KOBFOR F1 ONLY |
| 65. | YN21C01720D1 | [1] | SPACER | KOBFOR F1 ONLY |
| 66. | YN21C01720D2 | [1] | SPACER | KOBFOR F1 ONLY |
| 67. | YM21C01160P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 68. | YN21C01174D1 | [6] | SPACER | KOB100x40x1.6mm, FOR F1 Only |
| 69. | YN21C01174D2 | [6] | SPACER | KOB100x40x2.3mm, FOR F1 Only |
| 70. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm, FOR F1 Only |
| 71. | YM21C01050P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 72. | ZM32C10025 | [2] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher), FOR F4 ONLY |
| 73. | YM21C01051P1 | [1] | COVER | KOBFOR F4 ONLY |
| 74. | YM21C01207P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 76. | YM21C01162P1 | [1] | PLATE | KOBPLATE,FOR F1 ONLY |
| 77. | YM21C01192F1 | [1] | GUARD | KOBFOR F2 ONLY |
| 77-1. | YM21C01191P1 | [1] | GUARD | KOBFOR F2 ONLY |
| 77-2. | YM21C01027P1 | [1] | INSULATING PANEL | KOBINSULATION,FOR F2 ONLY |
| 77-3. | YM21C01146P1 | [1] | INSULATING PANEL | KOBINSULATION,FOR F2 ONLY |
| 77-5. | YM21C01147P1 | [1] | FOAM INSULATION | KOBINSULATION,FOR F2 ONLY |
| 78. | YM21C01129F2 | [1] | PANEL ASSY. | KOBFOR F5 ONLY |
| 78-1. | YM21C01007P1 | [1] | PANEL | KOBFOR F5 ONLY |
| 78-1-5. | YN21C01658P1 | [2] | HINGE | KOBFOR F5 ONLY |
| 78-1-6. | ZS11C10030 | [4] | CAPSCREW,Hex, M10 x 30mm, Cl 4.8 | KOBSCREW M10x1.50x30mm, FOR F5 Only |
| 78-3. | YN21C02128D1 | [1] | RUBBER | KOBFOR F5 ONLY |
| 78-4. | YM21C01009P1 | [1] | FOAM INSULATION | KOBFOR F5 ONLY |
| 79. | YM21C01195F2 | [1] | PANEL | KOBFOR F5&F7 ONLY |
| 79-3. | YN21C02047P1 | [1] | RUBBER | KOBFOR F5&F7 ONLY |
| 79-5. | YM21C01056P1 | [1] | PANEL | KOBFOR F5&F7 ONLY |
| 79-5-7. | YN21C01658P1 | [2] | HINGE | KOBFOR F5&F7 ONLY |
| 79-5-8. | 2427R703F2 | [1] | LOCK | KOBFOR F5&F7 ONLY Superseded by part number: 2421R175F1 |
| 79-5-9. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm, FOR F5 & F7 Only Superseded by part number: ZS18C10025 |
| 80. | YM21C01193F2 | [1] | PANEL ASSY. | KOBFOR F7 ONLY |
| 80-1. | YM21C01194P1 | [1] | PANEL | KOBFOR F7 ONLY Superseded by part number: YM21C01194P2 |
| 80-1-7. | YN21C01658P1 | [2] | HINGE | KOBFOR F7 ONLY |
| 80-1-8. | 2427R703F1 | [1] | LOCK | KOBFOR F7 ONLY Superseded by part number: 2421R175F2 |
| 80-1-9. | ZS11C10025 | [4] | CAP,Hex, M10 x 25mm, Cl 4.8 | KOBScrew -- M10x1.50x25mm, FOR F7 Only Superseded by part number: ZS18C10025 |
| 80-3. | YN21C02048P1 | [1] | RUBBER | KOB25x54x280mm Long, FOR F7 Only |
| 80-5. | YN21C01814D1 | [1] | RUBBER | KOB06x40x53mm Long, FOR F7 Only |
| 81. | YM21C01129F3 | [1] | PANEL ASSY. | KOBPANEL ASSY,FOR F7 ONLY |
| 81-1. | YM21C01007P1 | [1] | PANEL | KOBFOR F7 ONLY |
| 81-1-5. | YN21C01658P1 | [2] | HINGE | KOBFOR F7 ONLY |
| 81-1-6. | ZS11C10030 | [4] | CAPSCREW,Hex, M10 x 30mm, Cl 4.8 | KOBSCREW M10x1.50x30mm, FOR F7 Only |
| 81-3. | YN21C02128D1 | [1] | RUBBER | KOBFOR F7 ONLY |
| 82. | YM21C01141F2 | [1] | GUARD | KOBGUARD ASSY,FOR F9 ONLY |
| 82-1. | YM21C01142P1 | [1] | GUARD | KOBGUARD,FOR F9 ONLY |
| 82-2. | YJ21C01079D1 | [1] | INSULATING PANEL | KOB95mm Long (3-3/4 in), FOR F9 Only |
| 87. | YM21C01208P1 | [1] | GUARD | KOBFOR F1 ONLY |
| 88. | YR21C01161P1 | [2] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm, FOR F1 Only |
