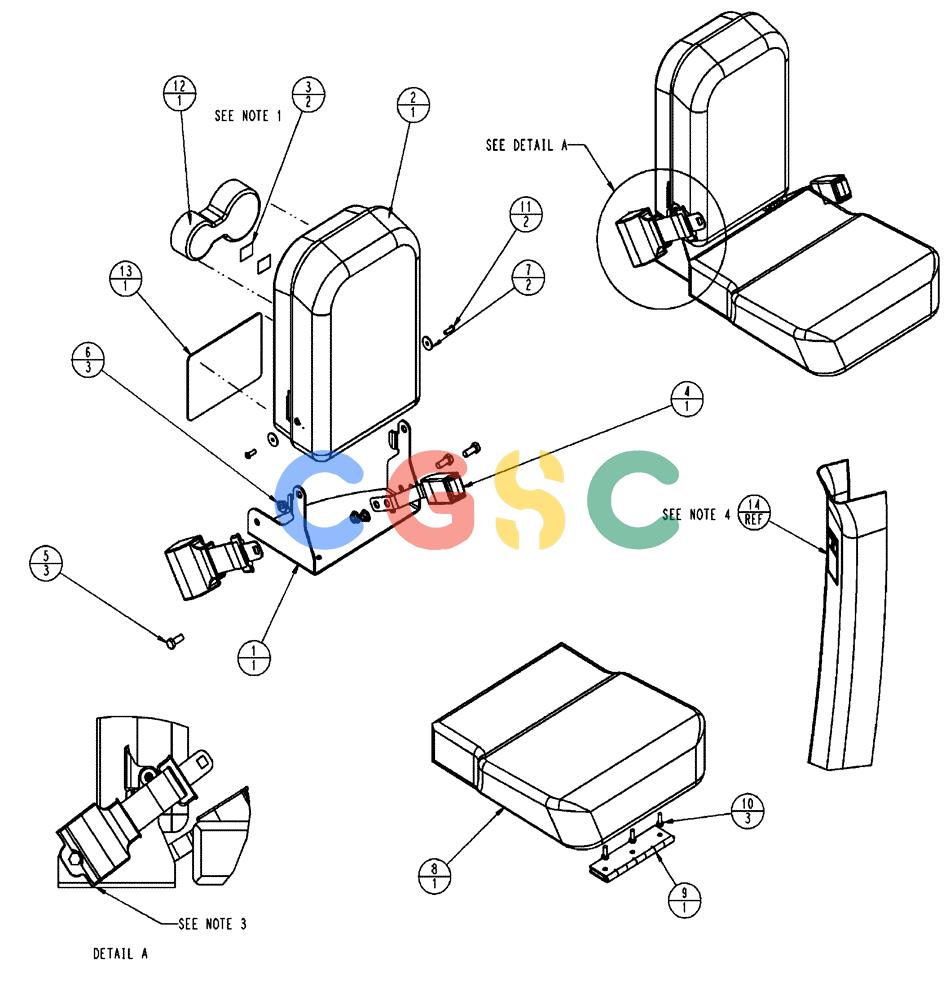

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (01-040) - INSTRUCTIONAL SEAT ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
249707A2
|
[1] |
BRACKET
|
CAS
instructional seat
|
| 2. |
359383A1
|
[1] |
SEAT ASSY.
|
CAS
Rear Cushion
|
| 3. |
406682A1
|
[2] |
FASTENER
|
CAS
dual lock
|
| 4. |
281926A2
|
[1] |
SAFETY BELT
|
CAS
Instructional Seat
|
| 5. |
11106231
|
[3] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
|
LEC
|
| 6. |
9804278
|
[3] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
86624183
|
[2] |
WASHER,6.6mm ID x 25mm OD x 1.6mm Thk
|
FOR
|
| 8. |
87045196
|
[1] |
CUSHION
|
BEL
instructional seat
|
| 9. |
365674A1
|
[1] |
HINGE
|
CAS
instructional seat
|
| 10. |
426-412
|
[3] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
|
CAS
Superseded by part number: 281032
|
| 11. |
906051R1
|
[2] |
HEX SOC SCREW,Btn Hd, M6 x 10mm, Cl 12.9
|
CAS
|
| 12. |
369635A2
|
[1] |
HOLDER
|
CAS
insert, cup
|
| 13. |
394828A1
|
[1] |
INSERT
|
CAS
insert, instructional seat
|
| 14. |
410704A1
|
[1] |
WARNING DECAL
|
RAC
Instructional Seat
|
