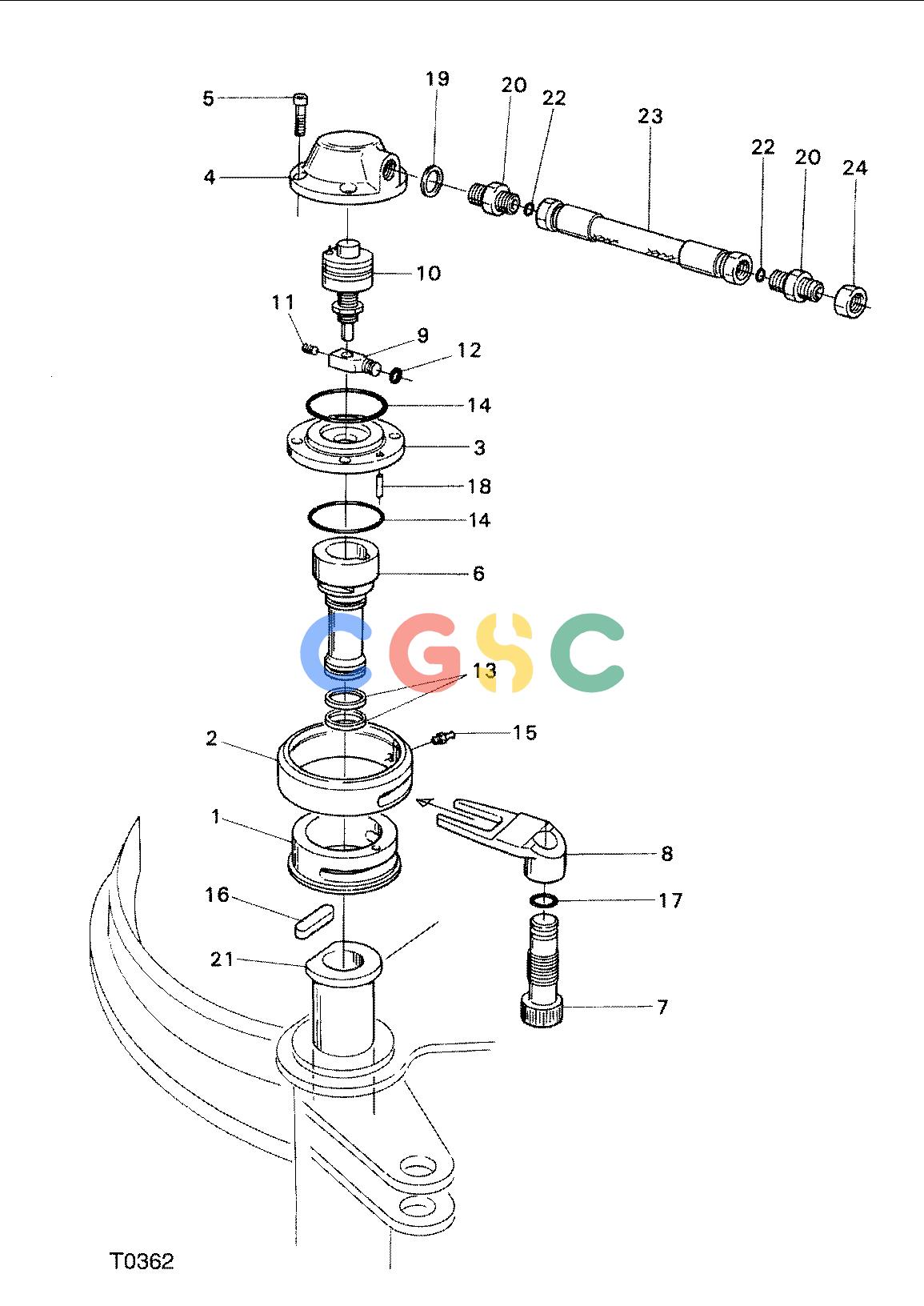

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE ANGLE INDICATOR F042683 11 34 T0362 [T0362]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
F012645
|
[1] |
Ring
|
|
| 3. |
F021246
|
[1] |
Flange
|
|
| 4. |
F012647
|
[1] |
Cap
|
|
| 5. |
F003412
|
[4] |
Screw
|
|
| 6. |
F012648
|
[1] |
Shaft
|
|
| 7. |
F017388
|
[1] |
Screw
|
|
| 8. |
F002915
|
[1] |
Fork
|
|
| 9. |
F012651
|
[1] |
CARRIER
|
|
| 10. |
F021413
|
[1] |
Sensor
|
|
| |
F021414
|
[1] |
Sensor
|
|
| 11. |
F002903
|
[1] |
STOP SCREW
|
|
| 12. |
F002905
|
[1] |
O-Ring
|
|
| 13. |
F002907
|
[2] |
Piston Ring
|
|
| 14. |
F010741
|
[2] |
O-Ring
|
|
| 15. |
F005626
|
[1] |
GREASE NIPPLE
|
|
| |
F012654
|
[1] |
GREASE NIPPLE
|
|
| 16. |
F012655
|
[1] |
Wedge
|
|
| 17. |
F004567
|
[1] |
O-Ring
|
|
| 18. |
F002904
|
[1] |
Spring Pin
|
|
| 19. |
F005166
|
[1] |
SEAL RING
|
|
| 20. |
F005060
|
[2] |
NIPPLE
|
|
| 21. |
F017387
|
[1] |
Pin
|
|
| 22. |
F019375
|
[2] |
O-Ring
|
|
| 23. |
F019374
|
[1] |
HOSE-ASSY
|
|
| 24. |
F002921
|
[1] |
Nut
|
|
