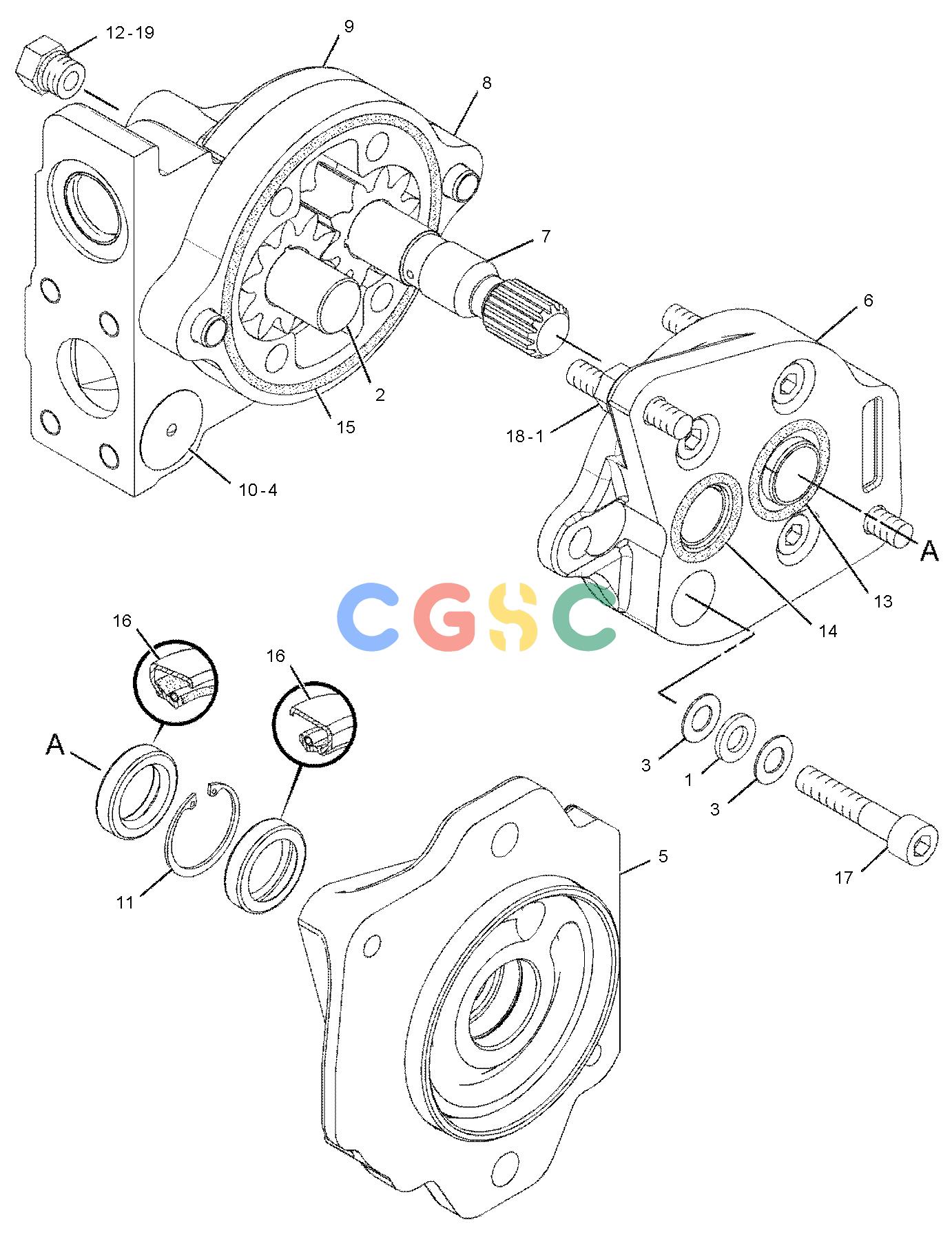

卡特零件查询（735） 191-6117: PUMP GP-GEAR
广数供应链运营团队, 15 02月, 2025，浏览：
649 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-0004 | [6] | WASHER(0.406X0.728X0.09-IN THK) | |
| 2. | 3S-4384 | [1] | GEAR AS-PUMP(10-TEETH) | |
| 3. | 6Y-5010 | [8] | WASHER(10.16X19X0.84-MM THK) | |
| 4. | 7B-3028 | [1] | SCREW-DRIVE(NO 4X 3/16-IN) | |
| 5. | 167-9213 | [1] | ADAPTER AS | |
| 6. | 167-9218 | [1] | COVER AS | |
| 7. | 168-6971 | [1] | GEAR AS-OIL PUMP(10-TEETH) | |
| 8. | 177-7884 | [1] | BODY AS-OIL PUMP | |
| | 1M-3736 | [2] | DOWEL | |
| 9. | 191-6110 | [1] | MANIFOLD AS | |
| 10. | 193-3069 | [1] | PLATE | |
| 11. | 1L-3768 | [1] | RING-RETAINING | |
| 12. | 3J-1907 | [1] | SEAL-O-RING | |
| 13. | 4J-0520 | [1] | SEAL-O-RING | |
| 14. | 4J-8997 | [1] | SEAL-O-RING | |
| 15. | 4M-0189 | [2] | SEAL-O-RING | |
| 16. | 7S-3029 | [2] | SEAL-LIP TYPE | |
| 17. | 8T-1160M | [4] | BOLT-SOCKET HEAD(M10X1.5X50-MM) | |
| 18. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 19. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| | M | | METRIC PART |
