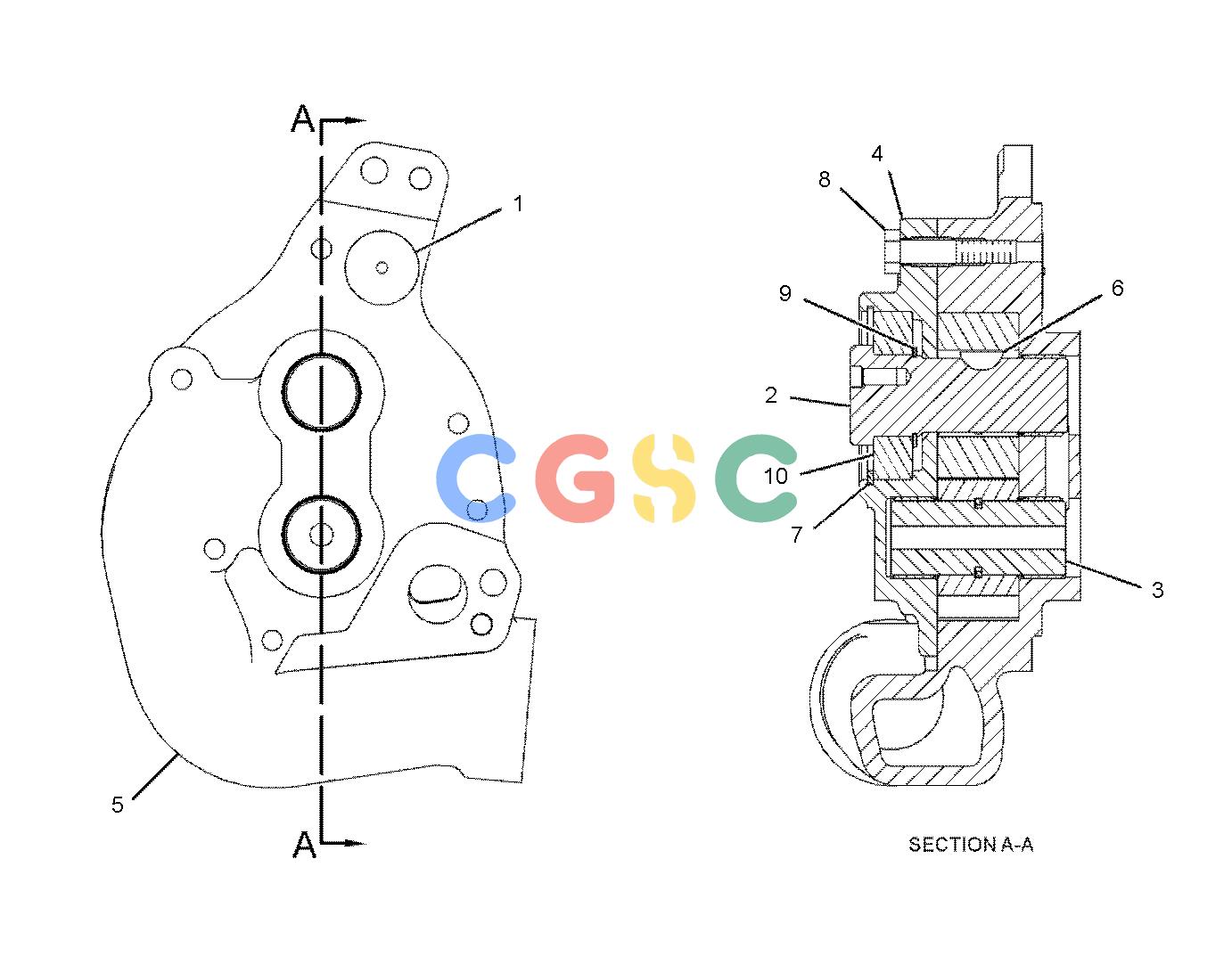

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7B-3028 | [1] | SCREW-DRIVE(NO 4X 3/16-IN) | |
| 2. | 290-4788 | [1] | SHAFT | |
| 3. | 290-4793 | [1] | GEAR AS-OIL PUMP(12-TEETH) | |
| 4. | 290-4794 | [1] | COVER AS | |
| 8M-8489 | [2] | DOWEL | ||
| 187-0671 | [1] | BUSHING | ||
| 5. | 290-4796 | [1] | MANIFOLD AS | |
| 187-0671 | [2] | BUSHING | ||
| 6. | 2B-9373 | [1] | KEY-WOODRUFF | |
| 7. | 2H-5549 | [1] | RING-RETAINING | |
| 8. | 6V-4249M | [6] | BOLT(M10X1.5X50-MM) | |
| 9. | 6V-5200 | [1] | RING-RETAINING | |
| 10. | 8H-9789 | [1] | BALL BEARING | |
| M | METRIC PART | |||
