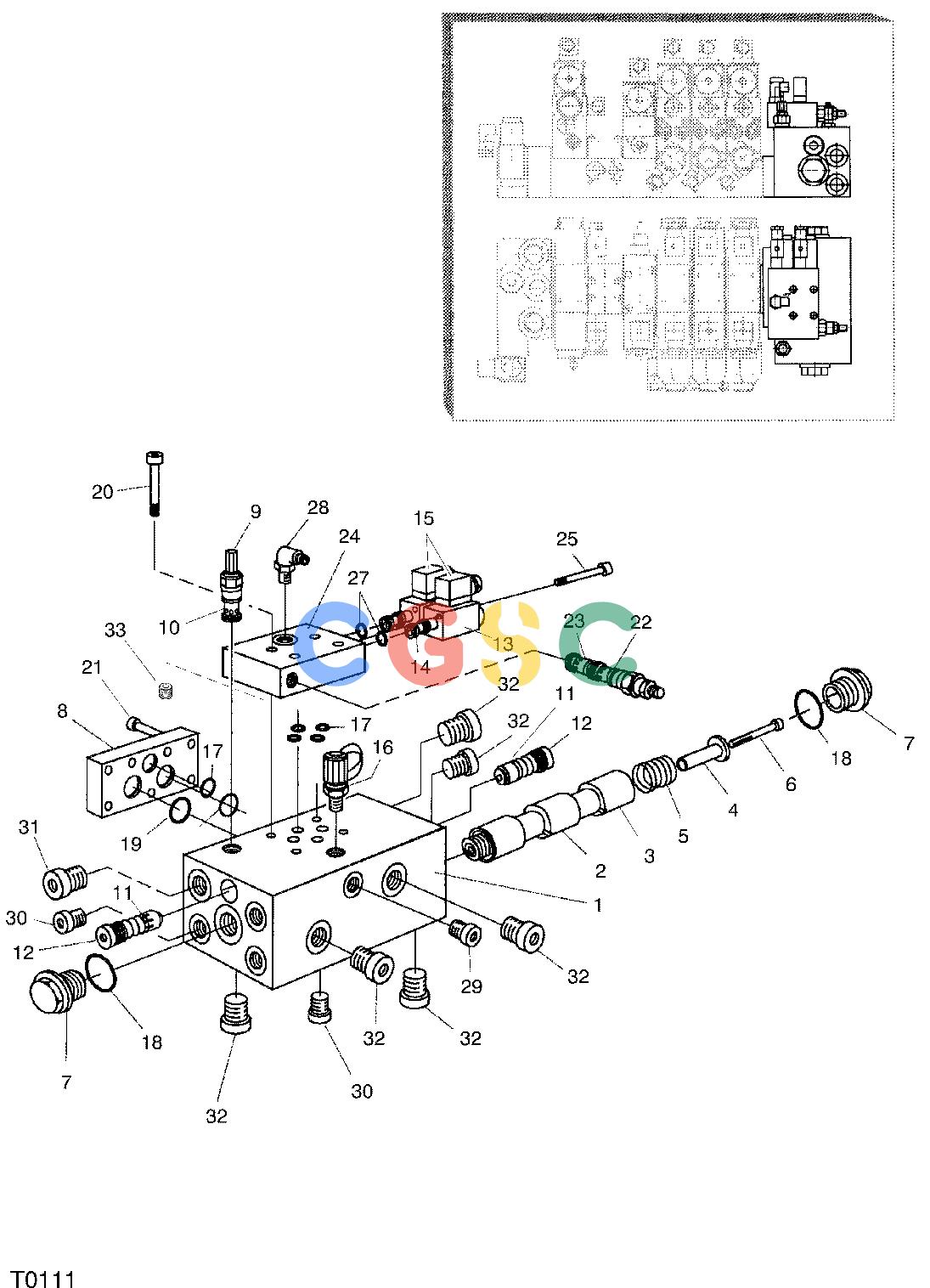

约翰迪尔零件查询762B ATT - ATTACHMENTS ENGINE VALVE BLOCK SECTION F042683 11 28 T0111 [T0111]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F028414
|
[1] |
VALVE BLOCK SECTION
|
|
| 1. |
F018789
|
[1] |
VALVE BLOCK
|
|
| 2. |
F018790
|
[1] |
SLIDE
|
|
| 3. |
F038824
|
[1] |
Spool
|
|
| 4. |
F038823
|
[2] |
Tube
|
|
| 5. |
F023441
|
[2] |
Spring
|
|
| 6. |
F038822
|
[2] |
Screw
|
|
| 7. |
F018791
|
[2] |
Plug
|
|
| 8. |
F018792
|
[1] |
CONNECTING PLATE
|
|
| 9. |
F038821
|
[1] |
Relief Valve
|
|
| 10. |
F033364
|
[1] |
Seal Kit
|
|
| 11. |
F018794
|
[2] |
Relief Valve
|
|
| 12. |
F004571
|
[2] |
O-Ring
|
|
| 13. |
F018795
|
[2] |
Relief Valve
|
|
| 14. |
F038820
|
[2] |
Seal Kit
|
|
| 15. |
F038819
|
[2] |
Connector
|
|
| 16. |
F025711
|
[1] |
MEASURING NIPPLE
|
|
| 17. |
F018768
|
[1] |
O-Ring
|
|
| 18. |
F018796
|
[2] |
O-Ring
|
|
| 19. |
F021688
|
[2] |
O-Ring
|
|
| 20. |
F018800
|
[4] |
Screw
|
|
| 21. |
F021647
|
[7] |
Screw
|
|
| 22. |
F038818
|
[1] |
PRESSURE REDUCING VALVE
|
|
| 23. |
F033365
|
[1] |
Seal Kit
|
|
| 24. |
F018798
|
[1] |
VALVE BLOCK
|
|
| 25. |
F018799
|
[4] |
Screw
|
|
| 26. |
F035347
|
[4] |
O-Ring
|
|
| 27. |
F021602
|
[2] |
O-Ring
|
|
| 28. |
F038817
|
[1] |
Connector
|
|
| 29. |
F018111
|
[1] |
Plug
|
|
| 30. |
F018111
|
[2] |
Plug
|
|
| 31. |
F005570
|
[1] |
Plug
|
|
| 32. |
F018067
|
[6] |
Plug
|
|
| 33. |
F031278
|
[2] |
THROTTLE SCREW
|
|
