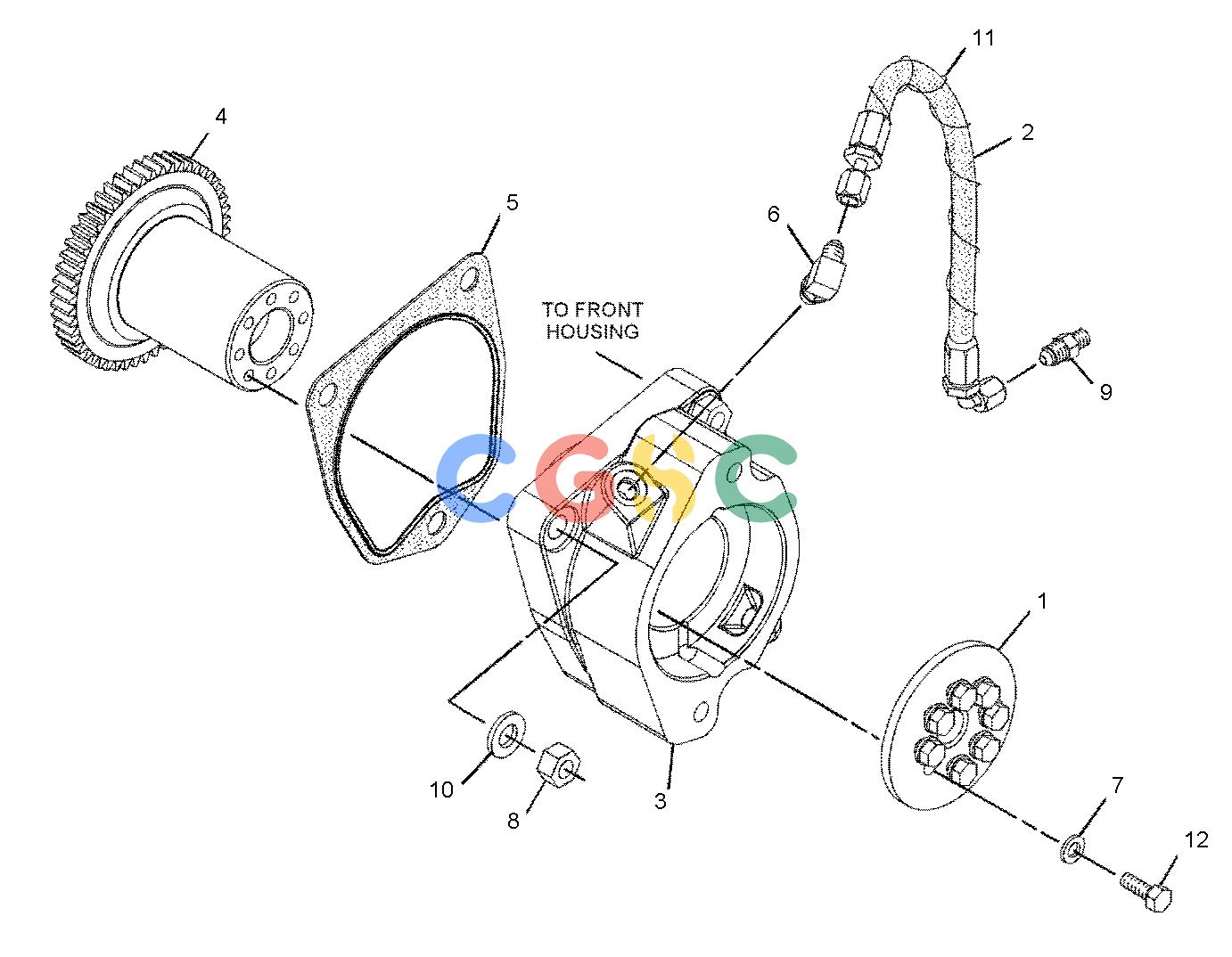

卡特零件查询（735） 145-5012: DRIVE GP-ACCESSORY
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1N-3974 | [1] | COUPLING | |
| 2. | 101-6596I | [1] | HOSE AS | |
| 3. | 506-9239 | [1] | BEARING-DRIVE | |
| 4. | 331-0052 | [1] | GEAR(40-TEETH) | |
| 5. | 144-6142 | [1] | SEAL-INTEGRAL | |
| 6. | 343-8115 | [1] | ELBOW AS | |
| | 030-7946 | [1] | ELBOW | |
| | 214-7566 | [1] | SEAL-O-RING | |
| 7. | 9M-1974 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 6V-8188 | [3] | NUT(1/2-13-THD) | |
| 9. | 8L-6557 | [1] | CONNECTOR | |
| 10. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8C-5063E | | CONDUIT-FLEXIBLE(15.49-MM ID, SPLIT)(30-CM) | |
| 12. | 2B-2695 | [8] | BOLT(5/16-18X0.875-IN) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
