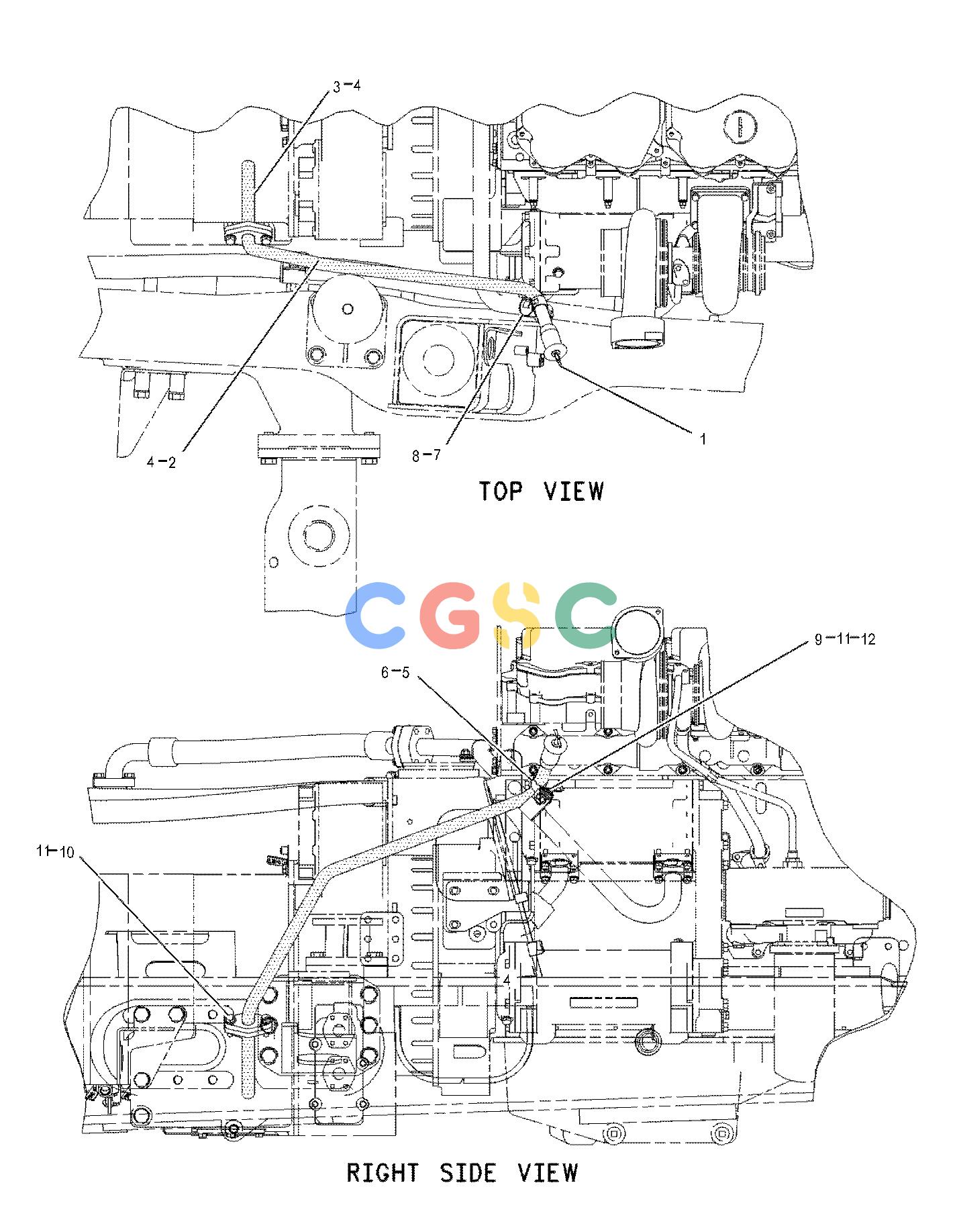

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 198-1187 | [1] | GAUGE | |
| 2. | 205-6352 | [1] | TUBE AS | |
| 3. | 205-6354 | [1] | TUBE AS | |
| 4. | 4J-0522 | [2] | SEAL-O-RING | |
| 5. | 6V-5185 | [1] | CLIP(SLOT) | |
| 6. | 6V-5186 | [1] | CLIP(TAB) | |
| 7. | 7S-8920 | [1] | CLIP(SLOT) | |
| 8. | 7S-8921 | [1] | CLIP(TAB) | |
| 9. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 10. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| M | METRIC PART | |||
