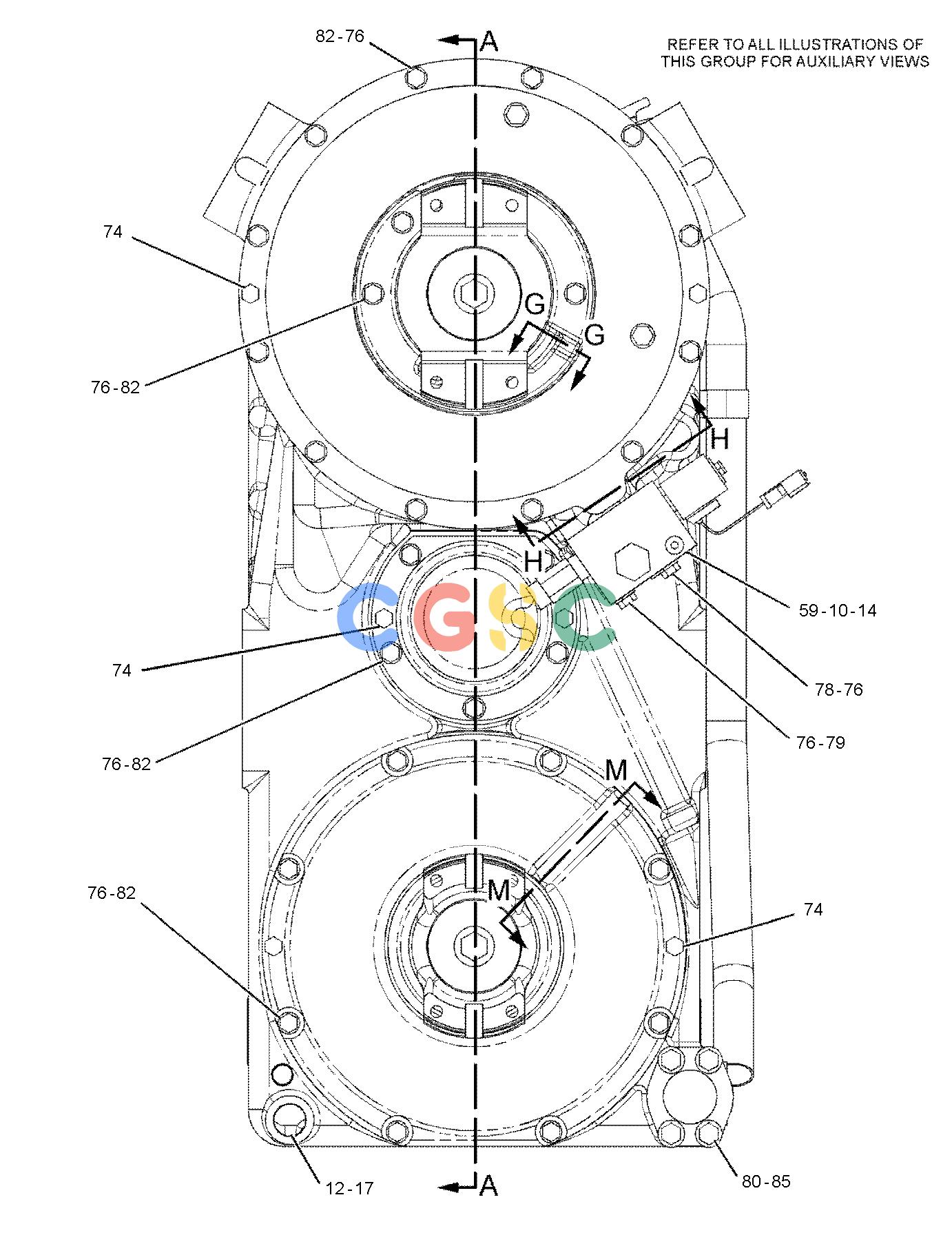

卡特零件查询（735） 148-9400: GEAR GP-OUTPUT TRANSFER
广数供应链运营团队, 15 02月, 2025，浏览：
701 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-7949 | [2] | CUP-BEARING | |
| 2. | 9S-7950 | [2] | CONE-BEARING | |
| 3. | 128-3935 | [4] | BEARING AS-ROLLER | |
| 4. | 1M-5514 | [4] | RACE-ROLLER BEARING | |
| 5. | 1T-1006 | [2] | RETAINER | |
| 6. | 2D-8009 | [2] | SEAL-O-RING | |
| 7. | 2K-5340 | [1] | RING-RETAINING | |
| 8. | 3H-4193 | [1] | RING-RETAINING | |
| 9. | 3K-7161 | [1] | NUT-FLARED(3/8-24-THD) | |
| 10. | 5F-7054 | [1] | SEAL-O-RING | |
| 11. | 5H-6005 | [3] | SEAL-O-RING | |
| 12. | 5P-4484 | [1] | PLUG-MAGNETIC | |
| 13. | 6F-5559 | [4] | SEAL-O-RING | |
| 14. | 6F-6672 | [3] | SEAL-O-RING | |
| 15. | 6T-8527 | [2] | SLEEVE | |
| 16. | 7F-2122 | [2] | SEAL-O-RING | |
| 17. | 7M-8485 | [1] | SEAL-O-RING | |
| 18. | 8B-7216 | [1] | SEAL-O-RING | |
| 20. | 9D-8042 | [1] | SEAL-O-RING | |
| 21. | 9P-7118 | [2] | RING-SEAL | |
| 22. | 9S-7581 | [1] | CONNECTOR | |
| 23. | 9S-7697 | [3] | ELBOW-FLARED | |
| 24. | 9S-7698 | [3] | ELBOW-FLARED | |
| 25. | 9W-7925 | [4] | BEARING AS-TAPERED ROLLER | |
| 26. | 9W-7926 | [4] | CUP-BEARING | |
| 27. | 9X-4605 | [2] | SEAL-LIP TYPE | |
| 28. | 116-5897 | [1] | SEAL-O-RING | |
| 29. | 132-3072 | [1] | SEAL-LIP TYPE | |
| 30. | 148-9313 | [1] | TUBE | |
| 31. | 148-9316 | [1] | RETAINER AS | |
| | 9W-6068 | [2] | PLUG | |
| | 9W-7783 | [1] | PLUG | |
| 32. | 148-9325 | [1] | SHAFT | |
| 33. | 148-9390 | [1] | GAUGE-OIL LEVEL(OUTPUT TRANSFER GEAR) | |
| 34. | 148-9398 | [1] | YOKE AS | |
| 35. | 151-5728 | [1] | YOKE | |
| 36. | 155-6647 | [2] | CUP-BEARING | |
| 37. | 155-6648 | [2] | CONE-BEARING | |
| 38. | | [1] | CASE AS(FRONT) |
| | 4B-9782 | [1] | BALL | |
| | 9F-2247 | [2] | PLUG-PIPE | |
| | 9W-6068 | [8] | PLUG | |
| 39. | 161-4214 | [1] | CAGE AS | |
| | 126-7260 | [1] | PLUG | |
| 40. | | [1] | CASE AS(REAR) |
| | 9G-9506 | [3] | PLUG | |
| 41. | | [1] | CAGE AS |
| | 148-9359 | [2] | PLUG | |
| 42. | 161-4222 | [1] | CAGE AS | |
| | 126-7260 | [1] | PLUG | |
| 43. | | [1] | CAGE |
| 44. | 161-4225 | [1] | SHROUD AS | |
| 45. | | [1] | TUBE AS |
| 46. | 161-4228B | [1] | SHIM PACK(EACH PACK INCLUDES 13 SHIMS) | |
| 47. | 161-4229B | [1] | SHIM PACK(EACH PACK INCLUDES 13 SHIMS) | |
| 48. | | [1] | GEAR-SPUR(52-TEETH) |
| 49. | 161-4234 | [1] | GEAR-SPUR(65-TEETH) | |
| 50. | | [1] | GEAR-SPUR(51-TEETH) |
| 51. | | [1] | GEAR-SPUR(64-TEETH) |
| 52. | 161-4250Y | [1] | PLANETARY GP-TRANSFER GEAR | |
| 53. | 161-4252 | [1] | SHAFT | |
| 54. | 161-4253 | [1] | SHAFT | |
| 55. | 161-4255 | [1] | PLATE | |
| 56. | | [1] | TUBE AS-FILLER |
| 57. | 171-2183 | [1] | SEAL-V-RING | |
| 58. | 174-5336 | [1] | SEAL-O-RING | |
| 59. | 201-5676Y | [1] | VALVE GP-SOLENOID & RELIEF | |
| 60. | 205-0936 | [1] | GEAR-SPUR(65-TEETH) | |
| 61. | 205-0942 | [1] | RETAINER AS | |
| | 8F-6864 | [2] | PIN | |
| | 205-0935 | [1] | RETAINER | |
| 62. | 208-1729 | [1] | BEARING AS | |
| 63. | 208-9267 | [1] | SPACER(80.2X97X11.5-MM THK) | |
| 64. | 210-8466 | [1] | CAGE AS | |
| | 126-7260 | [1] | PLUG | |
| 65. | 210-8467 | [1] | YOKE AS | |
| 66. | 211-2015 | [1] | RETAINER | |
| 67. | 053-0558 | [1] | CLIP | |
| 68. | 125-5894 | [1] | SPACER(20X50X12.7-MM THK) | |
| 69. | 171-3010 | [1] | WASHER-HARD(17.5X32X7-MM THK) | |
| 70. | 1H-9696 | [1] | SEAL-O-RING | |
| 71. | 6V-5029 | [1] | SEAL-LIP TYPE | |
| 72. | 7X-2555M | [2] | BOLT(M16X2X80-MM) | |
| 73. | 7X-2558M | [1] | BOLT(M16X2X150-MM) | |
| 74. | 7X-2621M | [10] | BOLT(M10X1.5X12-MM) | |
| 75. | 8J-1580 | [1] | RING-RETAINING | |
| 76. | 8T-4121 | [110] | WASHER-HARD(11X21X2.5-MM THK) | |
| 77. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 78. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 79. | 8T-4178M | [3] | BOLT(M10X1.5X90-MM) | |
| 80. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 81. | 8T-4186M | [15] | BOLT(M10X1.5X40-MM) | |
| 82. | 8T-4195M | [36] | BOLT(M10X1.5X30-MM) | |
| 83. | 8T-4196M | [22] | BOLT(M10X1.5X35-MM) | |
| 84. | 8T-4198M | [29] | BOLT(M10X1.5X100-MM) | |
| 85. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 86. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 87. | 4S-5879 | [1] | SEAL-O-RING | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
