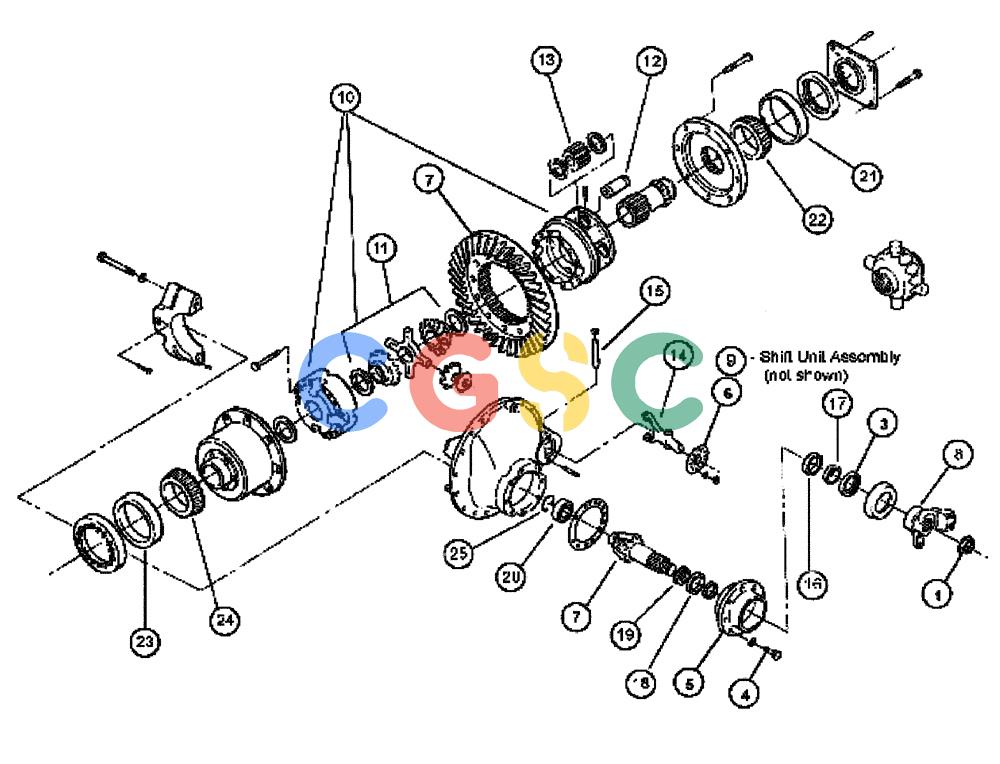

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-008) - REAR AXLE CARRIER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
87750816
|
[1] |
PLANET CARRIER
|
BN
Diff. 3.91-5.45
|
| 1. |
BN2390129-009
|
[1] |
NUT
|
BN
Pinion New #2636
|
| 3. |
BN2390129-001
|
[1] |
SEAL
|
BN
Pinion, #415082N
|
| 4. |
BN2390129-042
|
[8] |
BOLT
|
BN
Cage Assembly, Pinion Bearing
|
| 5. |
BN2390129-041
|
[1] |
BEARING ASSY
|
BN
Cage, Pinion
|
| 6. |
BN2390129-002
|
[1] |
BOOT
|
BN
Shifter
|
| 7. |
BN2390129-016
|
[1] |
RING GEAR
|
BN
Pinion Assembly
|
| 8. |
BN322518
|
[1] |
YOKE
|
BN
|
| 9. |
BN2407953
|
[1] |
SHIFTING UNIT
|
BN
Air, Rear Axle, 2 Speed
|
| 10. |
87750808
|
[1] |
DIFFERENTIAL ASSY
|
BN
|
| 11. |
87750809
|
[1] |
SERVICE KIT
|
BN
|
| 12. |
87750810
|
[4] |
SHAFT, PLANETARY CAR
|
BN
|
| 13. |
87750811
|
[4] |
PINION CARRIER
|
BN
|
| 14. |
87750812
|
[1] |
SHIFTER FORK
|
BN
|
| 15. |
87750813
|
[1] |
AXLE PIN
|
BN
|
| 16. |
317706C1
|
[1] |
BEARING, CUP,88.925 mm OD x 25.6 mm
|
IH
Superseded by part number: 317706C2
|
| 17. |
317705C91
|
[1] |
ROLLER BEARING,47.638 mm ID x 25.6 mm
|
IH
PINION SHAFT Superseded by part number: 86577044
|
| 18. |
1968297C1
|
[1] |
BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm
|
IH
PINION Superseded by part number: 86017029
|
| 19. |
287679C1
|
[1] |
BEARING ASSY,50.8mm ID x 26.91mm W
|
IH
CONE, PINION SHAFT
|
| 20. |
87750814
|
[1] |
ROLLER BEARING
|
BN
PINION SHAFT
|
| 21. |
ST982
|
[1] |
BEARING CUP
|
IH
CUP, LH CARRIER Superseded by part number: 86516466
|
| 22. |
299245A1
|
[1] |
ROLLER BEARING,96.8505 mm ID x 28.882 mm
|
CAS
CONE, LH CARRIER Superseded by part number: 708846
|
| 23. |
529453R1
|
[1] |
BEARING, CUP
|
IH
CUP, RH CARRIER Superseded by part number: 86577110
|
| 24. |
529452R91
|
[1] |
ROLLER BEARING
|
IH
CONE, RH CARRIER Superseded by part number: 86577110
|
| 25. |
87750815
|
[1] |
CIRCLIP
|
BN
PINION SHAFT
|
