神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-067[03]) - HARNESS ASSY, CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM14E00006F1 | [1] | WIRE HARNESS | KOB |

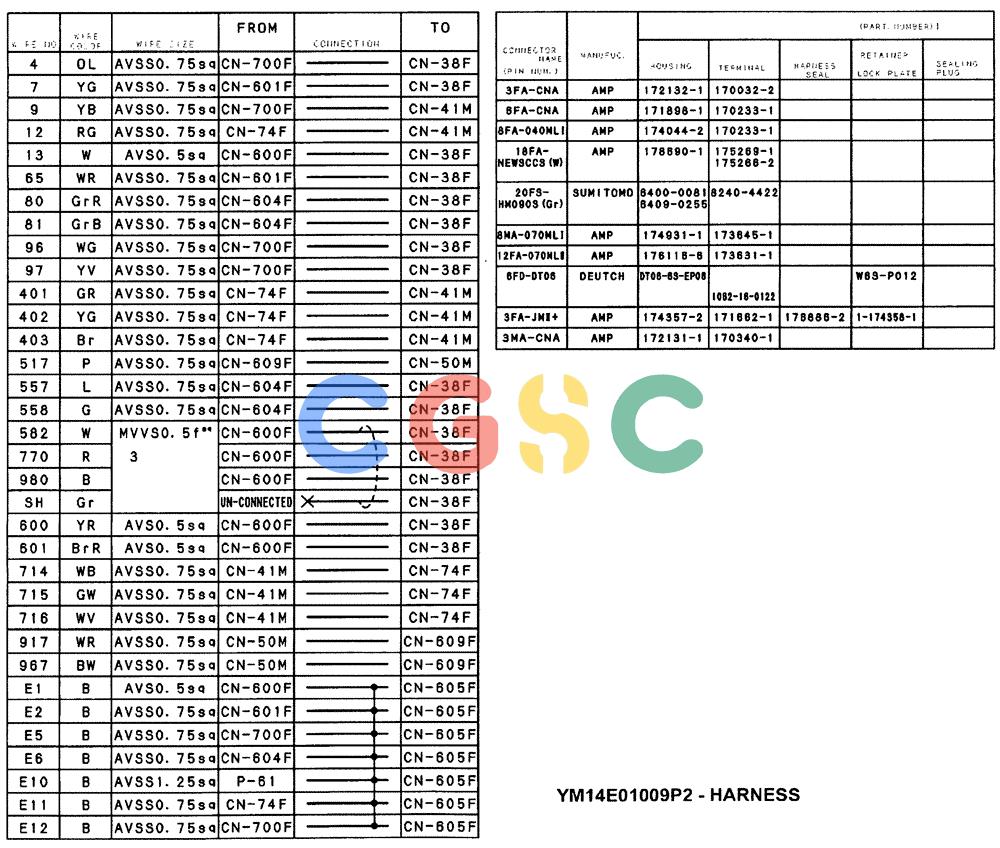

| 1. | YM14E01009P2 | [1] | HARNESS | KOB |
| 2. | YN03E01001D5 | [6] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| 3. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 4. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 5. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
