神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-069[03]) - HARNESS ASSY, UPP FLOOR PLATE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN13E00074F3 | [1] | WIRE HARNESS | KOBASSY, UPP FLOOR PLATE |

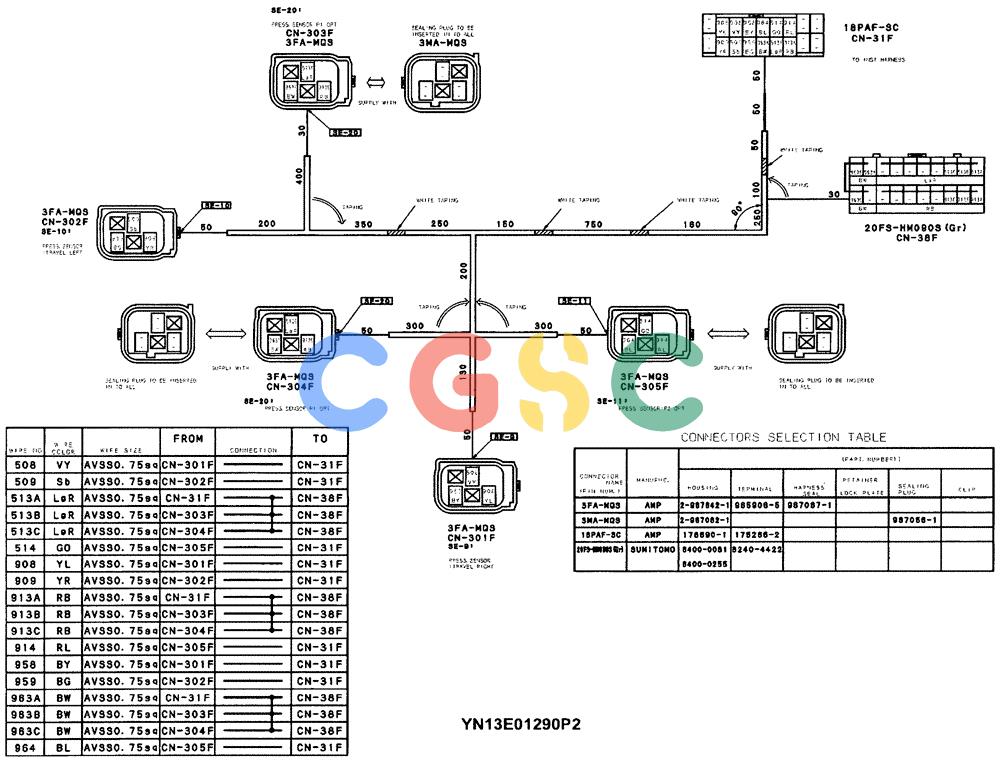

| 1. | YN13E01290P2 | [1] | HARNESS | KOBBELOW FLOOR |
| 4. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 6. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 7. | YN03E01001D5 | [6] | CLIP | KOB195mm Long (7-43/64 in) -- Black |
| 8. | YN13E01190P1 | [1] | GROMMET | KOB |
| 9. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOB |
| 10. | LE13E01005P1 | [1] | CABLE,100mm L | KOBFLOOR GROUND |
| 11. | YN13E01307P1 | [2] | GROMMET | KOB |
| 13. | YN13E01327P2 | [1] | HARNESS | KOBPANEL INST (R) (Connects to Instrument Panel, Tuner, Ignition Switch, Cigarette Lighter, Breaker Switch, Power Boost, Horn) Superseded by part number: YN13E01327P4 |
| 14. | YN13E01328P2 | [1] | HARNESS | KOBPANEL INST (L) (Connects to Instrument Panel, Independent Travel Switch, Heavy Lift Switch, Swing Flasher Switch, Horn Switch, Power Boost, Lever Lock Switch, Conflux/Single Select Switch, Warm-up Switch, Opt Work Light Switch, A/C Switch) |
