卡特零件查询（735） 9M-8669: SCREEN GP-MAGNETIC
广数供应链运营团队, 15 02月, 2025，浏览：
975 次

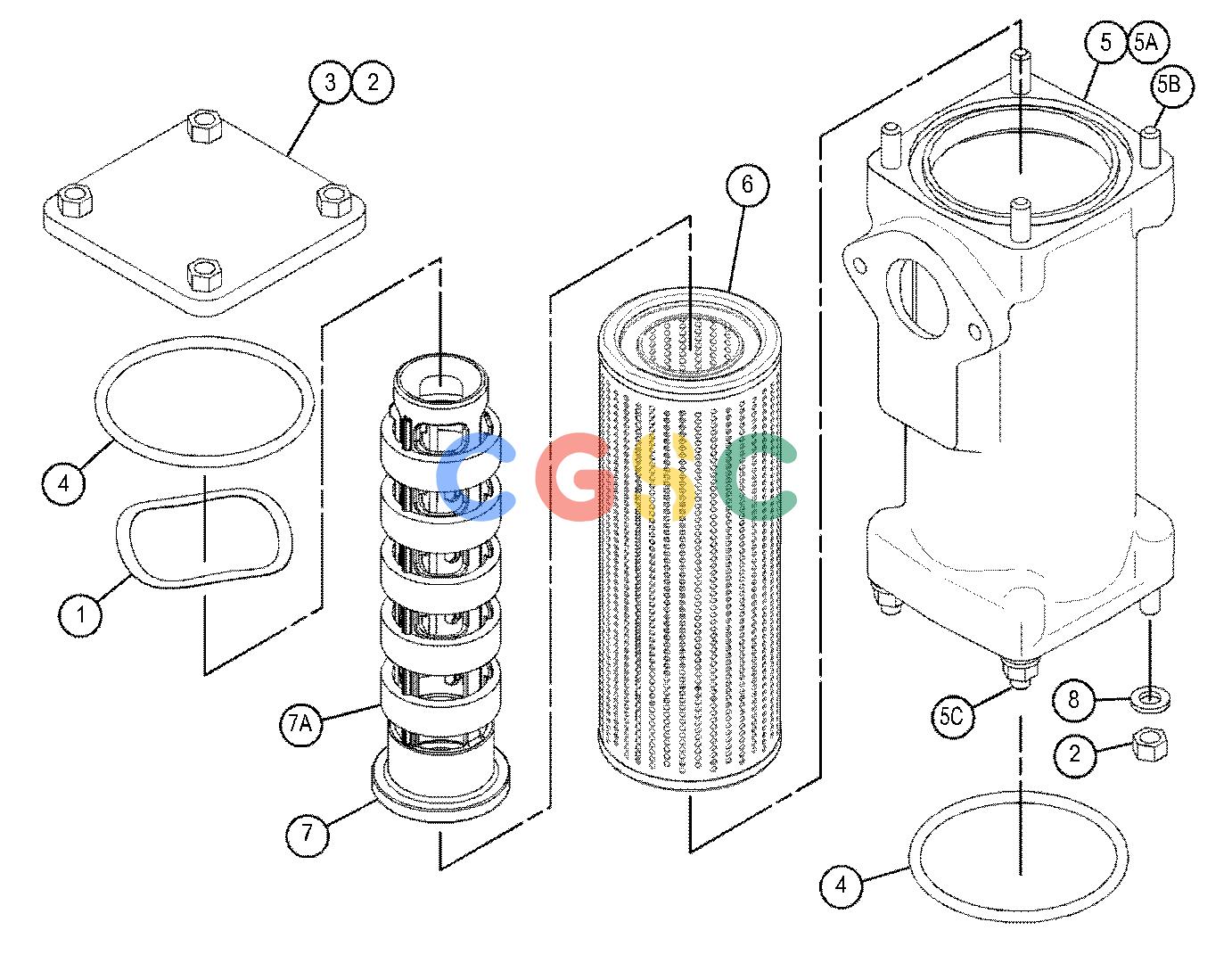

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-3440 | [1] | WASHER-WAVE(68.1X80.8X0.5-MM THK) | |
| 2. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 3. | 3S-3439 | [1] | COVER-TOP | |
| 4. | 5F-0149 | [2] | SEAL-O-RING | |
| 5. | 9M-2942 | [1] | HOUSING AS | |
| 5A. | 8M-7166 | [1] | HOUSING-SCREEN | |
| 5B. | 2M-1538 | [4] | STUD-TAPERLOCK(3/8-16X1.6-IN) | |
| 5C. | 2M-4779 | [4] | STUD-TAPERLOCK(3/8-16X1.75-IN) | |
| 6. | 3S-3875 | [1] | SCREEN-SUCTION(TRANSMISSION) | |
| 7. | 9W-5531 | [1] | SCREEN GP-MAGNETIC | |
| 7A. | 8M-7160 | [5] | MAGNET | |
| 8. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
