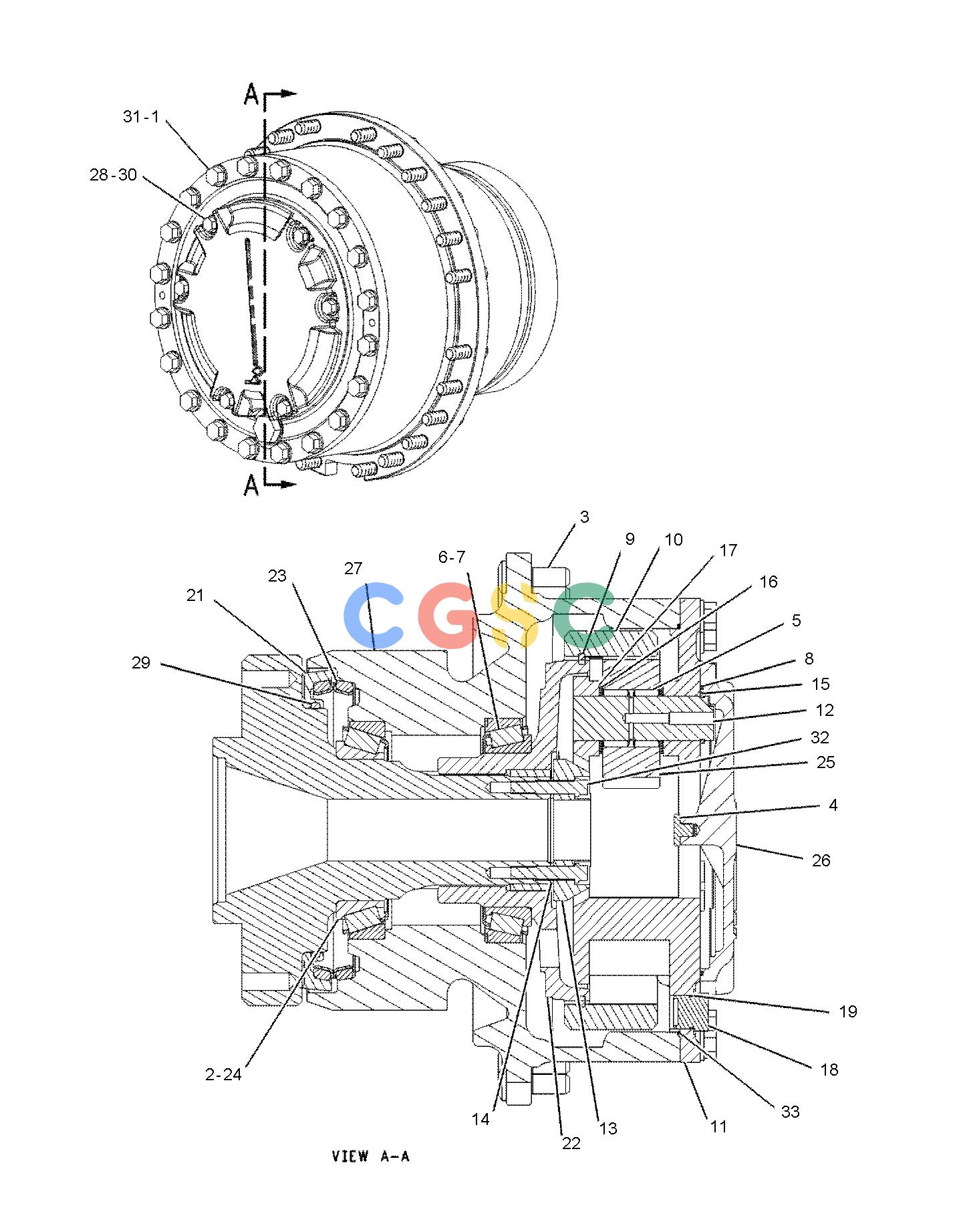

卡特零件查询（735） 147-5539: WHEEL & FINAL DRIVE GP
广数供应链运营团队, 15 02月, 2025，浏览：
180 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-1135 | [20] | BOLT(5/8-11X2-IN) | |
| 2. | 1M-6573 | [1] | CUP-BEARING(TAPERED ROLLER) | |
| 3. | 1V-3323 | [24] | STUD | |
| 4. | 2D-0604 | [1] | BUTTON | |
| 5. | 2M-5685 | [6] | BEARING | |
| 6. | 2N-2188 | [1] | CUP-BEARING | |
| 7. | 2N-2189 | [1] | CONE-BEARING | |
| 8. | 2R-0239 | [1] | SEAL-O-RING | |
| 9. | 2V-5656 | [1] | RING-SNAP | |
| 10. | 2V-5714 | [1] | GEAR-RING(65-TEETH) | |
| 11. | 2V-5722 | [1] | CARRIER | |
| 12. | 186-4440 | [3] | SHAFT-PLANETARY | |
| 13. | 2V-7092 | [1] | PLATE-RETAINER | |
| 14. | 2V-7390B | [1] | SHIM PACK(INCLUDES 15-SHIMS) | |
| 15. | 2V-7398 | [3] | RING-RETAINING | |
| 16. | 4V-4407 | [6] | WASHER-THRUST | |
| 17. | 4V-4408 | [6] | WASHER-THRUST | |
| 18. | 5P-4484 | [1] | PLUG-MAGNETIC(AXLE HOUSING) | |
| 19. | 7M-8485 | [1] | SEAL-O-RING | |
| 21. | 8X-7026 | [1] | RETAINER AS-SEAL | |
| | 0S-0130 | [1] | PIN | |
| 22. | 174-7484 | [1] | HUB AS | |
| | 2V-5715 | [1] | BUSHING-TERMINAL | |
| 23. | 9G-5319 | [1] | SEAL GP-DUO-CONE | |
| | 4M-0660 | [1] | RING-SEALING | |
| 24. | 9M-2744 | [1] | CONE-BEARING(TAPERED ROLLER) | |
| 25. | 186-4439 | [3] | GEAR-PLANETARY(23-TEETH) | |
| 26. | 138-4809 | [1] | COVER AS | |
| | 2D-0604 | [1] | BUTTON | |
| 27. | 161-9775 | [1] | WHEEL | |
| 28. | 0S-1587 | [6] | BOLT(1/2-13X1.75-IN) | |
| 29. | 1M-9015 | [1] | SEAL-O-RING | |
| 30. | 5P-8245 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 5P-8247 | [20] | WASHER-HARD(17X32X3.5-MM THK) | |
| 32. | 7K-6058 | [8] | BOLT-12 POINT HEAD(1/2-13X2.5-IN) | |
| 33. | 8D-2714 | [1] | SEAL-O-RING | |
| | B | | USE AS REQUIRED |
