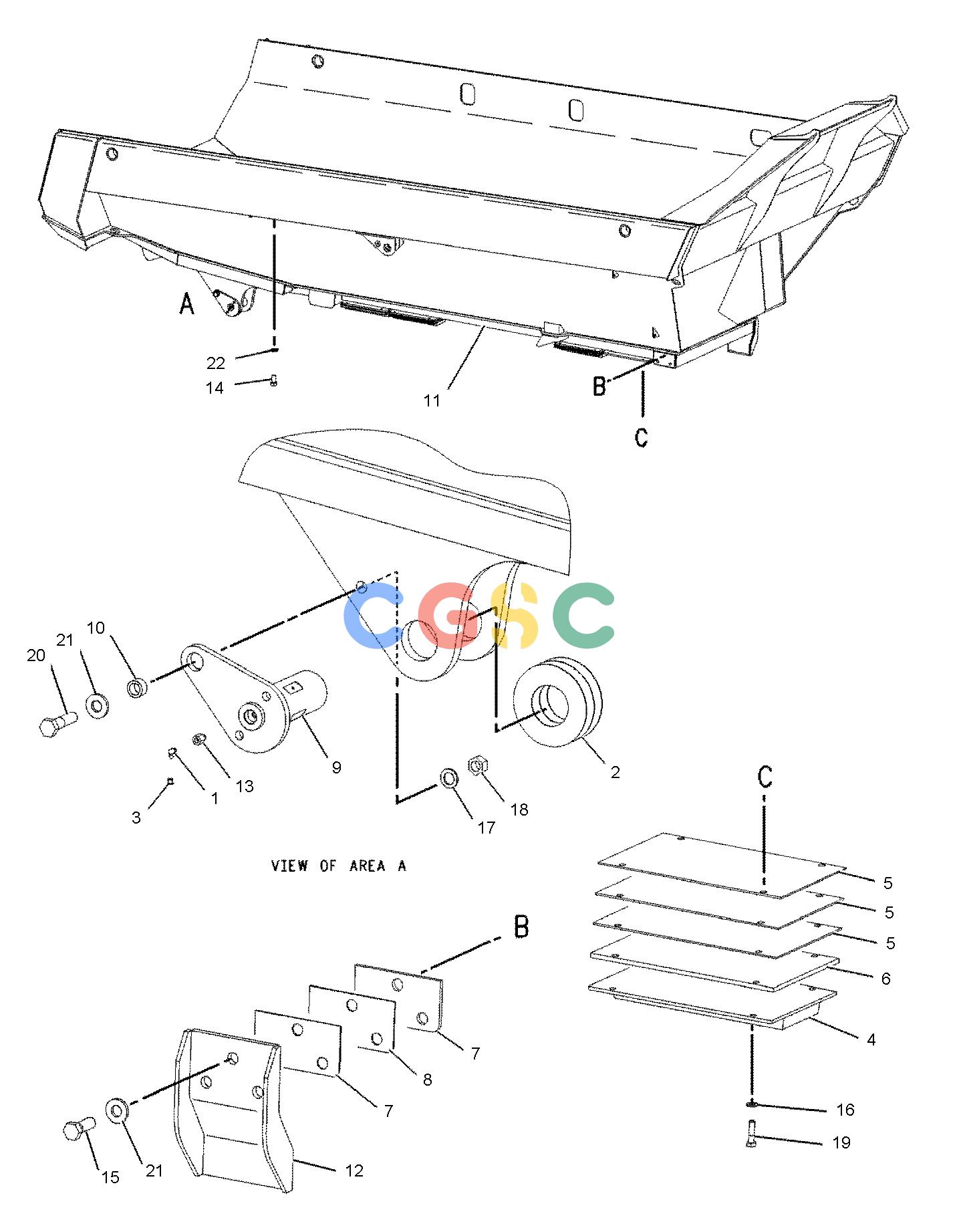

卡特零件查询（735） 153-1127: BODY GP-TRUCK
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5B-5150 | [2] | FITTING-GREASE | |
| 2. | 5U-0297B | [6] | SHIM(1.6-MM THK) | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 140-8227 | [8] | BUFFER-RUBBER | |
| 5. | 142-0534B | [24] | SHIM(3-MM THK) | |
| 6. | 142-0535B | [8] | SHIM(8-MM THK) | |
| 7. | 142-0536B | [4] | SHIM(3-MM THK) | |
| 8. | 142-0537B | [2] | SHIM(8-MM THK) | |
| 9. | 142-1227 | [2] | PIN AS | |
| 10. | 144-6952 | [2] | BUSHING | |
| 11. | 153-1128 | [1] | BODY AS-DUMP | |
| 12. | 155-7877 | [2] | PLATE AS-GUIDE | |
| 13. | 6K-6967 | [2] | ADAPTER-PIPE | |
| 14. | 7X-2552M | [8] | BOLT(M16X2X30-MM) | |
| 15. | 7X-2563M | [6] | BOLT(M20X2.5X60-MM) | |
| 16. | 8T-4121 | [32] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4123 | [2] | WASHER(3.62X5.75X0.375-MM THK) | |
| 18. | 8T-4131M | [2] | NUT(M20X2.5-THD) | |
| 19. | 8T-4186M | [32] | BOLT(M10X1.5X40-MM) | |
| 20. | 8T-4187M | [2] | BOLT(M20X2.5X80-MM) | |
| 21. | 8T-5439 | [8] | WASHER-HARD(21.5X45X6-MM THK) | |
| 22. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
