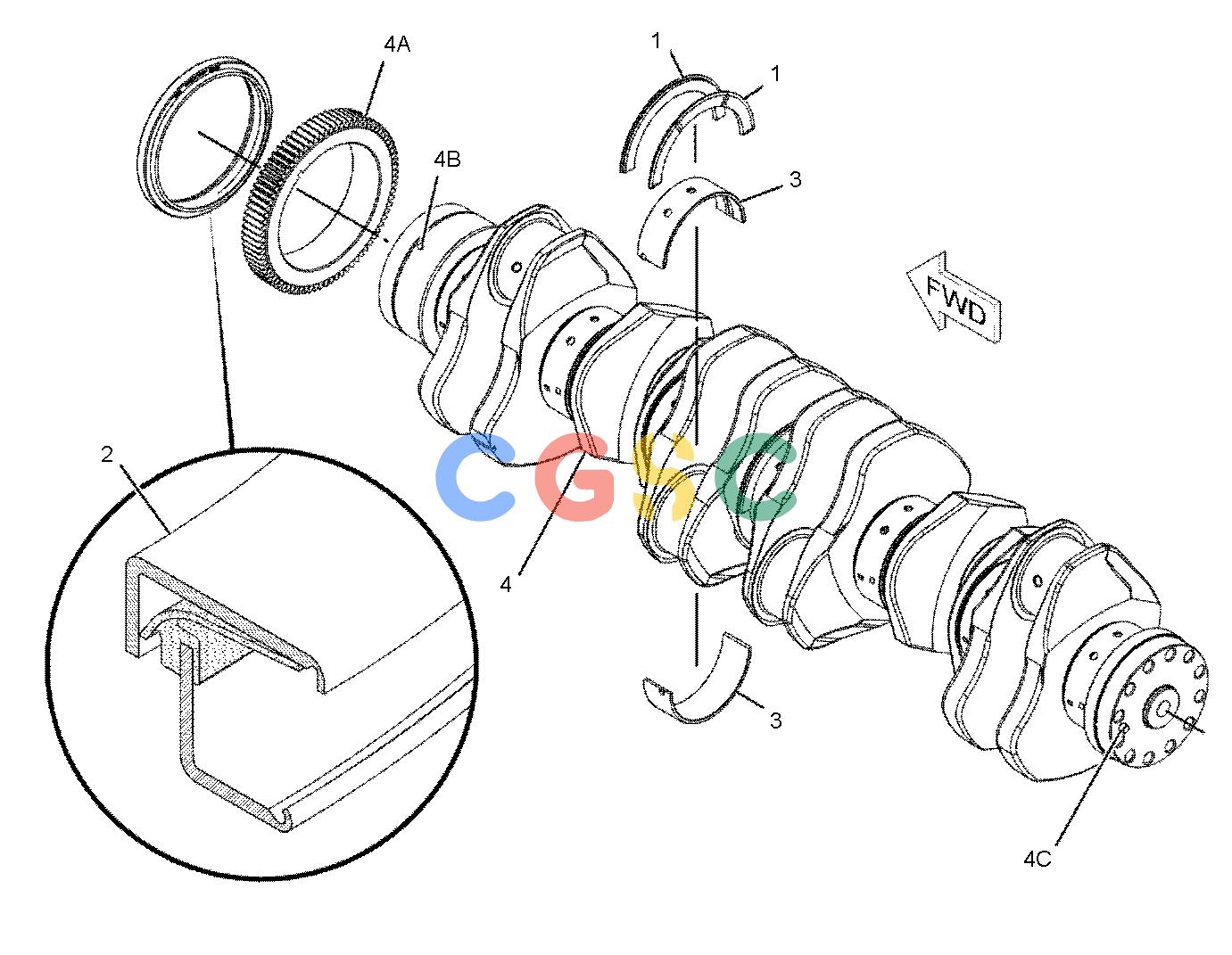

卡特零件查询（735） 132-9771: CRANKSHAFT GP
广数供应链运营团队, 15 02月, 2025，浏览：
708 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 253-1752J | [2] | PLATE-THRUST | |
| 2. | 319-7401Y | [1] | SEAL GP-CRANKSHAFT(FRONT)(FRONT) | |
| 3. | 317-8766J | [7] | BEARING-MAIN(STANDARD) | |
| | 4W-5698AB | | BEARING-MAIN(0.63-MM US) | |
| | 4W-5699AB | | BEARING-MAIN(1.27-MM US) | |
| | 4W-5700AB | | BEARING-MAIN(0.63-MM OS) | |
| | 4W-5701AB | | BEARING-MAIN(0.63-MM OS, 0.63-MM US) | |
| 4. | 136-8882 | [1] | CRANKSHAFT AS | |
| 4A. | 136-8605 | [1] | GEAR-CRANKSHAFT(80 TEETH) | |
| 4B. | 7S-5005 | [1] | DOWEL | |
| 4C. | 4N-0684 | [1] | DOWEL | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 243-6718AJ | | KIT-CRANKSHAFT BEARING(STANDARD) | |
| | | | (INCLUDES A COMPLETE SET OF MAIN BEARINGS & THRUST PLATES) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
