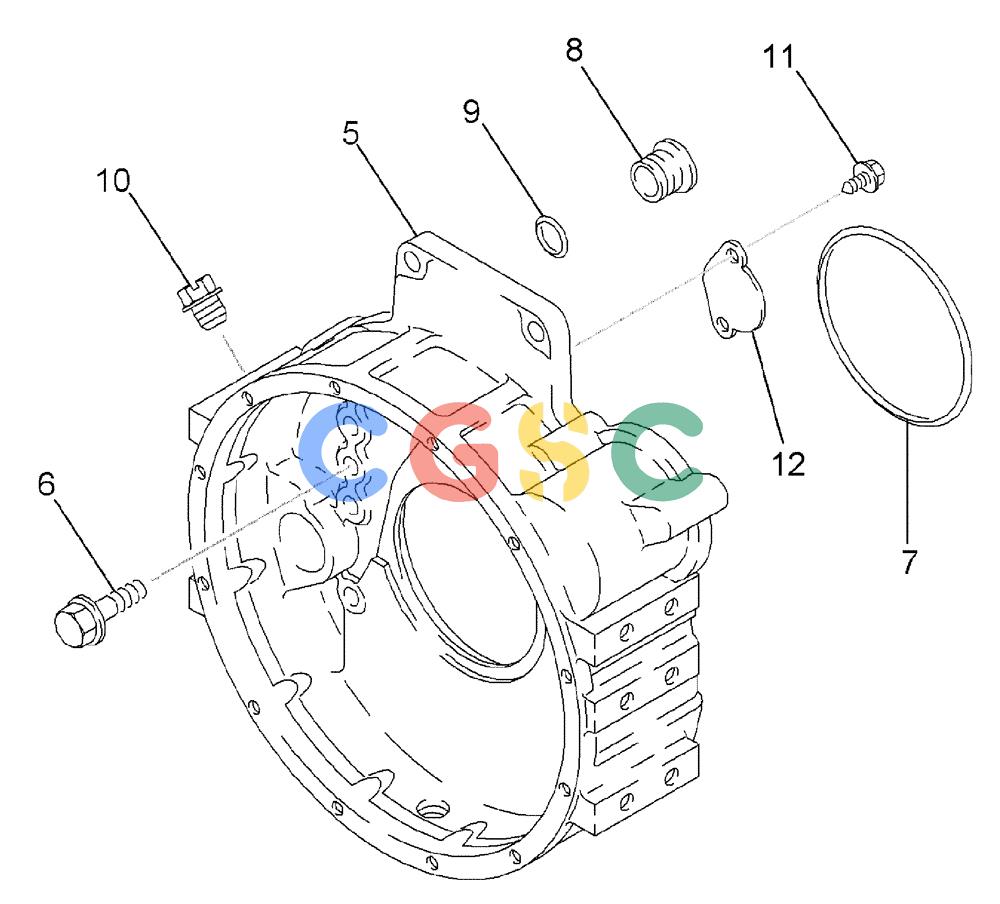

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (02-003[02]) - FLYWHEEL HOUSING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
J906689
|
[1] |
HOUSING
|
CAS
Flywheel
|
| 6. |
854-12040
|
[12] |
BOLT,Hvy Hex, M12 x 40mm, Cl 10.9
|
CAS
|
| 7. |
J912473
|
[1] |
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
|
CAS
SEALRING Superseded by part number: J912473AM
|
| 8. |
J910248
|
[1] |
PLUG
|
CAS
Superseded by part number: J910248AM
|
| 9. |
238-5212
|
[1] |
O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro
|
CAS
Superseded by part number: J910260, 86553262
|
| 10. |
353-225
|
[1] |
PLUG,Sltd Hd, 3/4"-16
|
CAS
Superseded by part number: 86625137
|
| 11. |
J912072
|
[2] |
SELF-TAP SCREW
|
CAS
Superseded by part number: J912072AM
|
| 12. |
J925234
|
[1] |
PLATE
|
CAS
Superseded by part number: J925234AM
|
