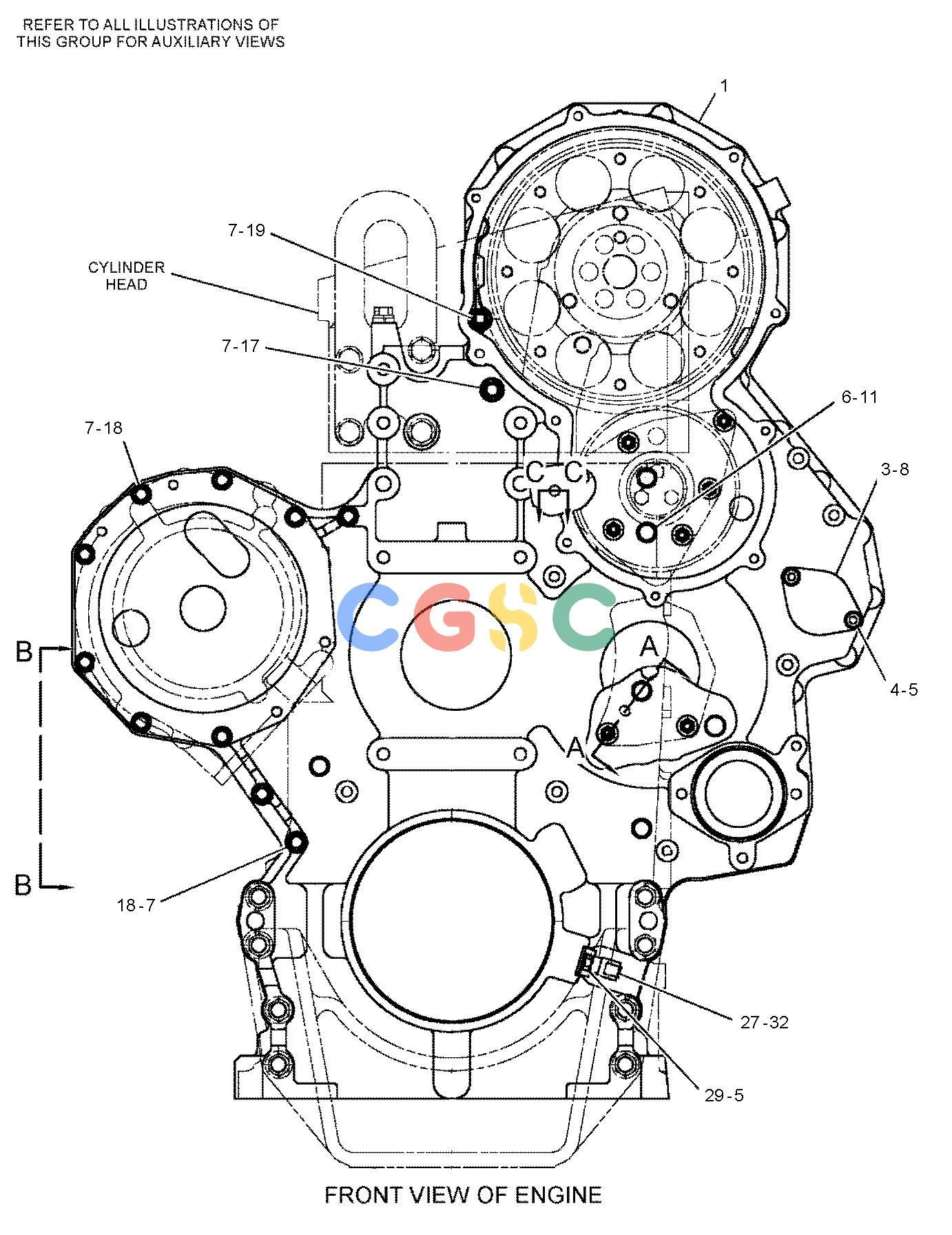

卡特零件查询（735） 124-6822: HOUSING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-7340 | [1] | HOUSING AS-FRONT | |
| | 3E-8044 | [1] | STUD(1/2-13X2.95-IN) | |
| 3. | 7C-1445 | [1] | COVER | |
| 4. | 2B-2695 | [2] | BOLT(5/16-18X0.875-IN) | |
| 5. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 6. | 5P-4255 | [8] | BOLT-LOCKING(3/8-16X1-IN) | |
| 7. | 5M-2894 | [29] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 8. | 061-9455 | [1] | SEAL-O-RING | |
| 9. | 0S-1588 | [11] | BOLT(3/8-16X1.25-IN) | |
| 10. | 8S-9191 | [1] | BOLT(3/8-16X4-IN) | |
| 11. | 9X-6458 | [8] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 13. | 155-3629 | [1] | GASKET | |
| 14. | 7X-4805 | [2] | SEAL-O-RING | |
| 15. | 353-9977Y | [1] | PLATE AS-FRONT HOUSING | |
| 16. | 166-9144 | [1] | GASKET | |
| 17. | 0L-2070 | [1] | BOLT(3/8-16X2.25-IN) | |
| 18. | 0T-0055 | [9] | BOLT(3/8-16X4.25-IN) | |
| 19. | 9S-8752 | [2] | NUT-FULL(3/8-16-THD) | |
| 23. | 6I-3968 | [1] | BRACKET-SUPPORT | |
| 24. | 0S-1591 | [3] | BOLT(3/8-16X1.5-IN) | |
| 25. | 0S-1571 | [2] | BOLT(3/8-16X1.75-IN) | |
| 26. | 101-3120 | [2] | SPACER(10.5X25X20-MM THK) | |
| 27. | 189-9266 | [1] | SENSOR GP-SPEED(CRANKSHAFT/TIMING) | |
| 29. | 2H-3755 | [2] | BOLT(5/16-18X0.43-IN) | |
| 30. | 132-9770 | [1] | SPACER AS | |
| | 1W-6448 | [2] | DOWEL | |
| 32. | 228-4947 | [2] | SEAL-O-RING | |
| 33. | 188-7513 | [1] | SENSOR GP-SPEED(CAMSHAFT/TIMING) | |
| 35. | 3P-1155 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
