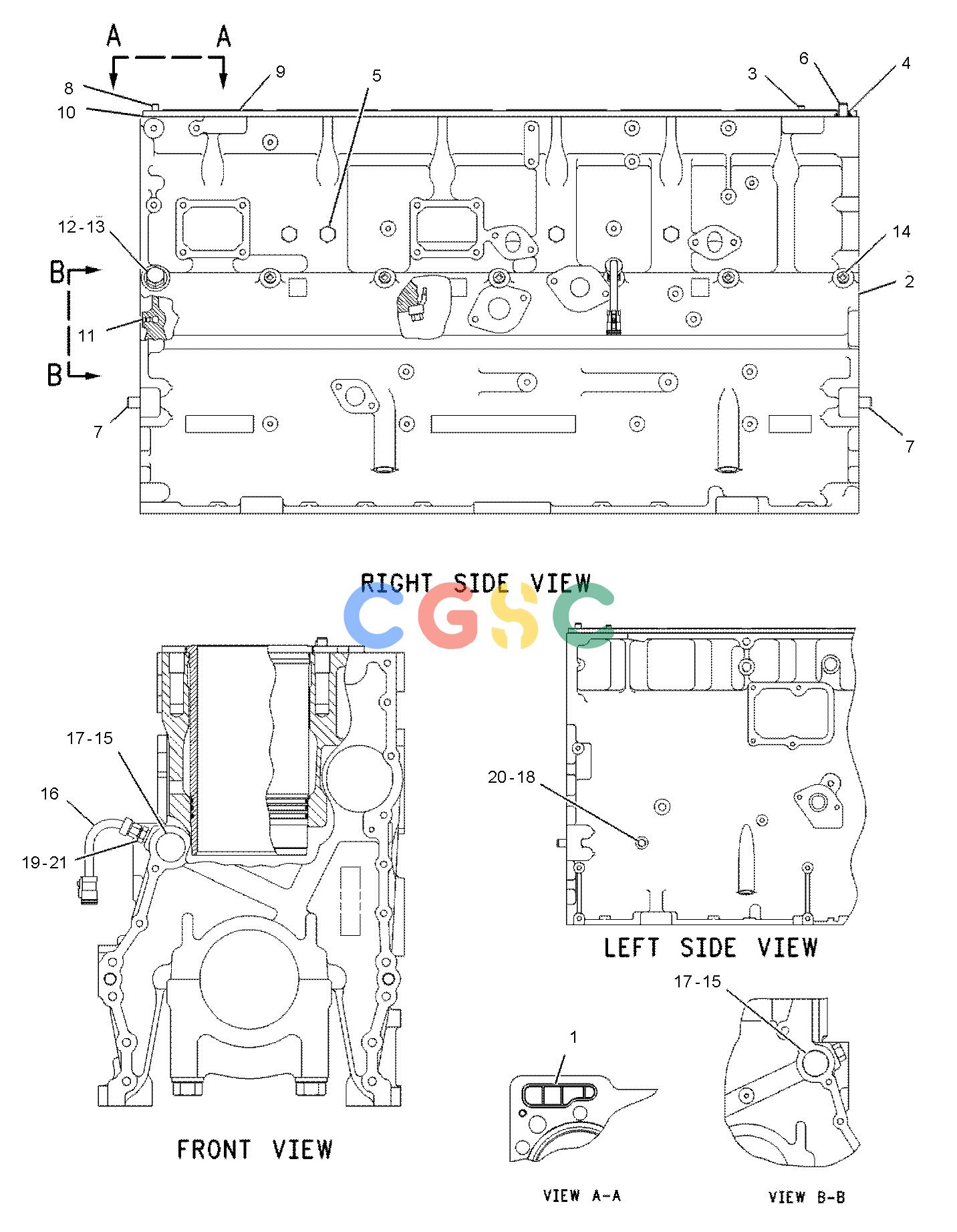

卡特零件查询（735） 146-2741: CYLINDER BLOCK GP
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 142-2329 | [1] | SEAL | |
| 2. | 137-8467Y | [1] | CYLINDER BLOCK GP | |
| 3. | 1S-9540 | [1] | DOWEL | |
| 4. | 5P-0840 | [1] | SEAL-O-RING | |
| 5. | 7W-6492 | [4] | PLUG-PIPE(1/2-14-THD) | |
| 6. | 6I-1055 | [1] | DOWEL | |
| 7. | 4N-0683 | [4] | DOWEL | |
| 8. | 4N-1650 | [1] | DOWEL | |
| 9. | 6I-4421 | [1] | PLATE-SPACER | |
| 10. | 180-5734 | [1] | GASKET-PLATE | |
| 11. | 8S-9094 | [1] | PLUG-ORIFICE | |
| 12. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 13. | 114-4427 | [1] | SEAL-O-RING | |
| 14. | 7X-7732 | [5] | PLUG-PIPE | |
| 15. | 3E-6747 | [2] | SEAL-O-RING | |
| 16. | 161-9931Y | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 17. | 100-7399 | [2] | PLUG | |
| 18. | 9X-7378 | [1] | SEAL-O-RING | |
| 19. | 6V-5048 | [1] | SEAL-O-RING | |
| 20. | 9S-4182 | [1] | PLUG(7/16-20-THD) | |
| 21. | 3E-7448 | [1] | CONNECTOR | |
| | Y | | SEPARATE ILLUSTRATION |
