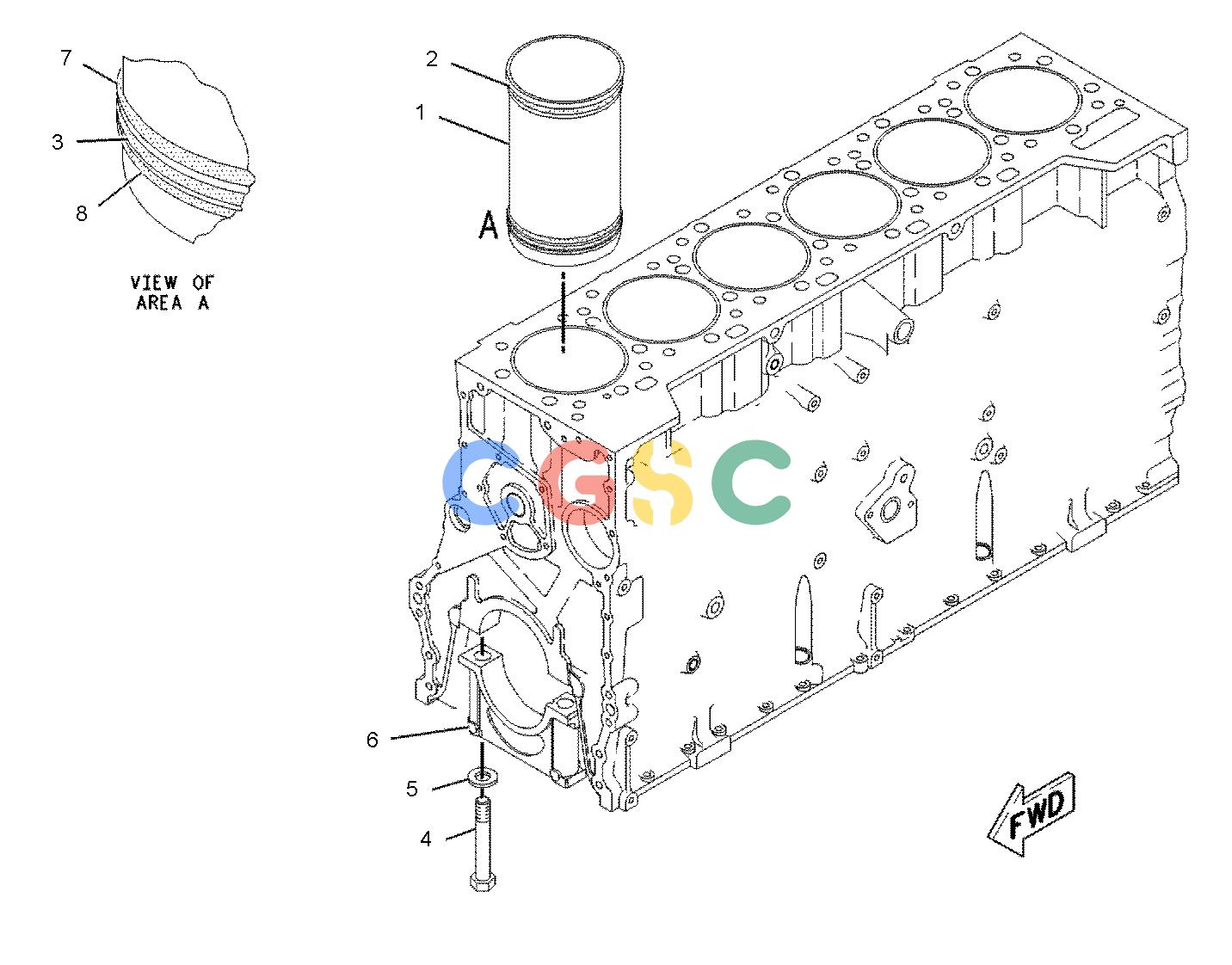

卡特零件查询（735） 202-1261: CYLINDER BLOCK GP
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-9322 | [6] | LINER-CYLINDER BLOCK | |
| 2. | 9L-5854 | [6] | BAND-FILLER(130.2-MM ID) | |
| 3. | 110-2220 | [6] | SEAL-LINER | |
| 4. | 167-8083 | [14] | BOLT(7/8-14X7.5-IN) | |
| 5. | 9H-1031 | [14] | WASHER-HARD(24X41.5X6-MM THK) | |
| 6. | 167-8081 | [7] | CAP-CRANKSHAFT BEARING | |
| 7. | 142-7072 | [6] | SEAL-LINER | |
| 8. | 142-6217 | [6] | SEAL-O-RING | |
| | | | |
| | 6I-4361ABFN | | INSERT-LINER SEAT(0.772-MM THK) | |
| | 9Y-3368ABFN | | INSERT-LINER SEAT(0.822-MM THK) | |
| | 6I-4362ABFN | | INSERT-LINER SEAT(0.872-MM THK) | |
| | 6I-4363ABFN | | INSERT-LINER SEAT(1.555-MM THK) | |
| | 2W-3815ABFN | | INSERT-LINER SEAT(1.605-MM THK) | |
| | 6I-4364ABFN | | INSERT-LINER SEAT(1.655-MM THK) | |
| | 6I-4365ABFN | | INSERT-LINER SEAT(2.66-MM THK) | |
| | 5N-0093ABFN | | INSERT-LINER SEAT(2.71-MM THK) | |
| | 6I-4366ABFN | | INSERT-LINER SEAT(2.76-MM THK) | |
| | 101-0524ABFN | | INSERT-LINER SEAT(5.16-MM THK) | |
| | 101-0523ABFN | | INSERT-LINER SEAT(5.21-MM THK) | |
| | 101-0525ABFN | | INSERT-LINER SEAT(5.26-MM THK) | |
| | | | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | N | | FOR SALVAGE OF DAMAGED LIFTER BORES IN CYLINDER BLOCK REFER TO SEBF8076 IN SIS WEB |
