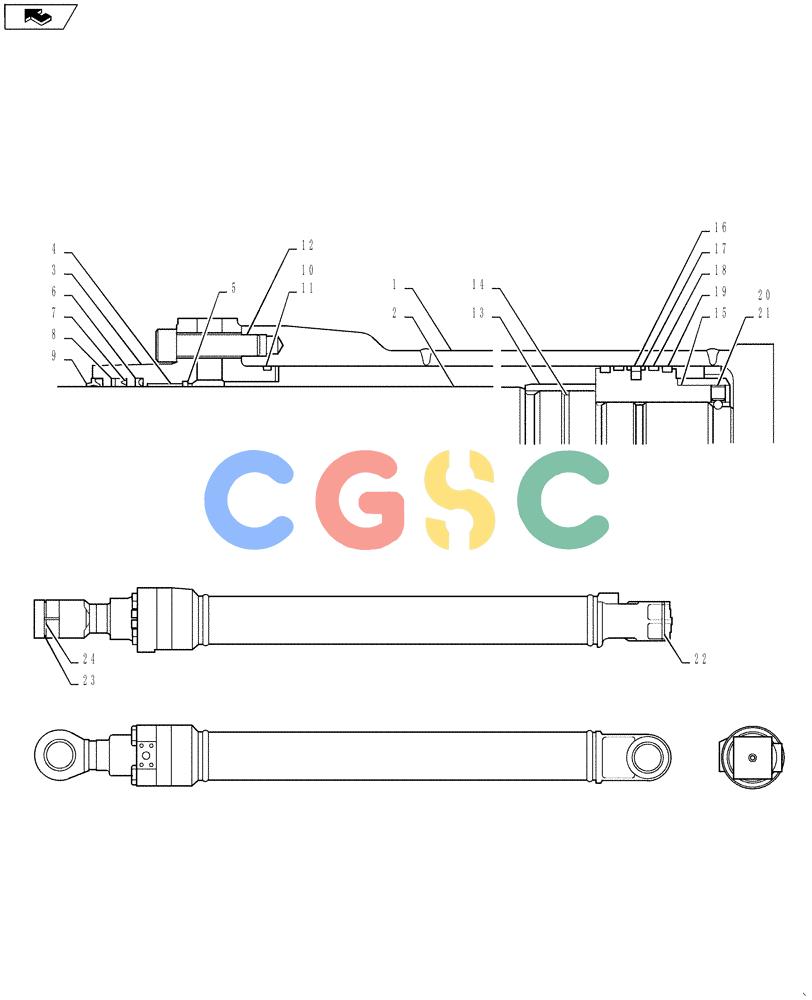

| .. | YM01V00018F1 | [1] | HYDRAULIC CYLINDER | KOBAssembly Bucket, Incl 1 - 24 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube Assy, Part of YM01V00018F1 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston, Part of YM01V00018F1 |
| 3. | YM01V00018S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1949S4 | [1] | BUSHING | KOB |
| 5. | 2438U1949S5 | [1] | RING | KOB |
| 6. | YM01V00018S006 | [1] | RUBBER BLOCK | KOB |
| 7. | YM01V00018S007 | [1] | HALF-RING | KOB |
| 8. | 2438U814S32 | [1] | RING | KOBBack Up |
| 9. | LP01V00007S009 | [1] | RING | KOB |
| 10. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOB |
| 11. | PZ01V00003S008 | [1] | RING | KOB |
| 12. | ZS23C14065 | [12] | BOLT,Hex Socket Head, M14 x 65mm | KOB |
| 13. | YM01V00009S013 | [1] | BEARING | KOB |
| 14. | YM01V00009S014 | [1] | SEAL | KOB |
| 15. | YM01V00018S015 | [1] | PISTON | KOB |
| 16. | 2438U676S21 | [1] | RING | KOB |
| 17. | YM01V00009S017 | [2] | RING | KOB |
| 18. | YM01V00018S018 | [2] | RING | KOB |
| 19. | 2438U814S23 | [2] | RING | KOB |
| 20. | 2438U986S18 | [1] | SET SCREW | KOB |
| 21. | 2436U281S37 | [1] | BALL | KOB |
| 22. | YM01V01004P1 | [1] | BUSHING,70mm ID x 80mm OD x 90mm W | KOB |
| 23. | 2438U1949S23 | [4] | RING | KOB |
| 24. | YM01V01010P1 | [1] | BUSHING,70.28mm ID x 80mm OD x 90mm L | KOB |
| 25. | YM01V00018R100 | [1] | REPAIR KIT | KOBKit, Repair Rod Side Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, Not Shown |
| 26. | YM01V00018R200 | [1] | REPAIR KIT | KOBKit, Repair Piston Side Contains Items 16X1, 17X2, 18X2, 19X2, Not Shown |
| 27. | YM01V00018R300 | [1] | REPAIR KIT | KOBAll (Rod & Piston) Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2, Not Shown |
| 28. | YM01V00018R400 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 1X1, 22X1, 23X2, Not Shown |
| 29. | YM01V00018R500 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 2X1, 24X1, 23X2, Not Shown |
