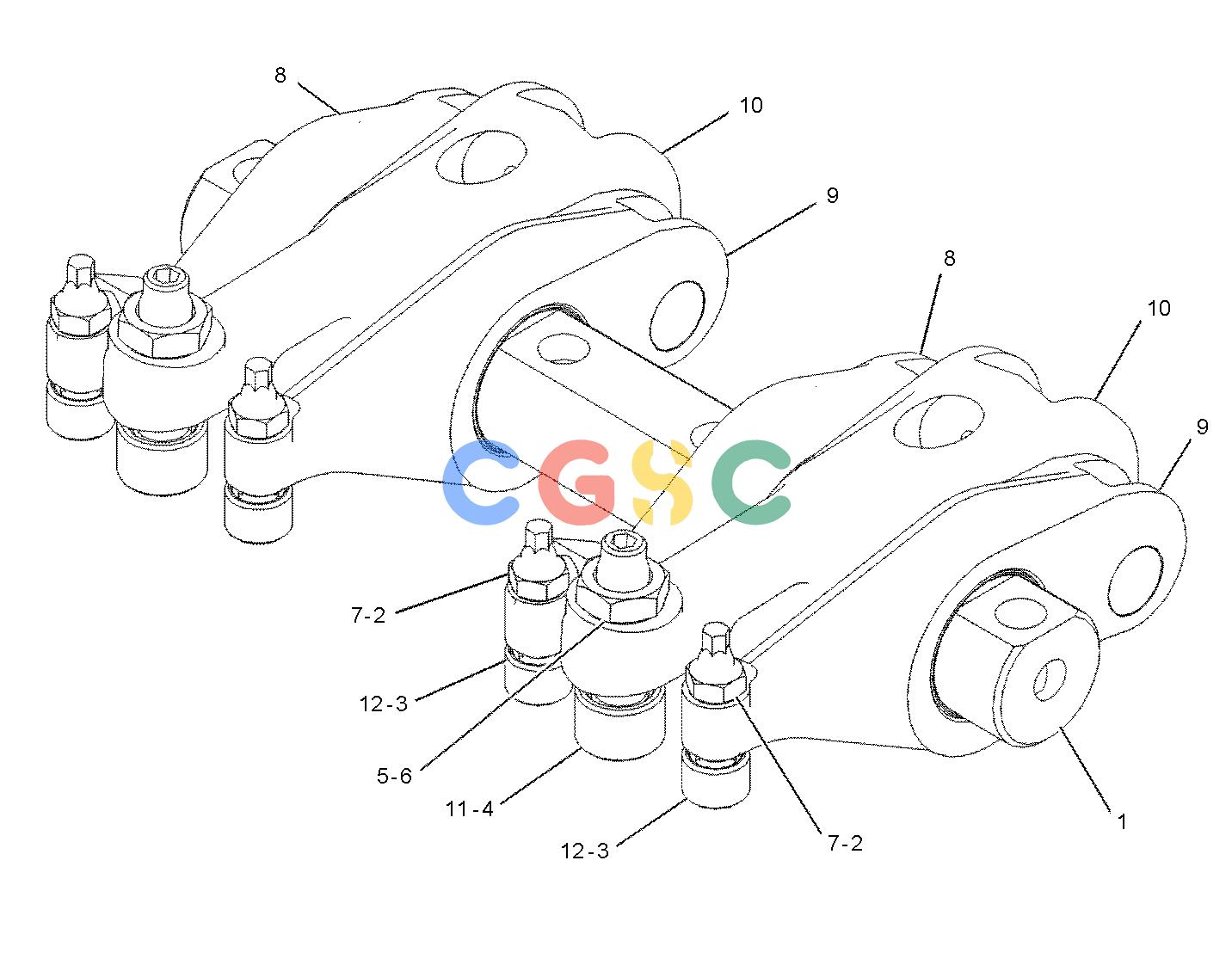

卡特零件查询（735） 198-9898: ROCKER ARM GP
广数供应链运营团队, 15 02月, 2025，浏览：
848 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0901 | [1] | SHAFT AS-ROCKER ARM | |
| | 4B-9782 | [2] | BALL | |
| 2. | 276-5317 | [4] | NUT(3/8-24-THD) | |
| 3. | 258-8721 | [4] | BUTTON | |
| 4. | 192-4151BW | [2] | BUTTON(24-MM OD) | |
| | | | -OR- |
| | 4P-7371BJ | [2] | INSERT(14.75-MM OD) | |
| 5. | 196-5069BW | [2] | SCREW-ARM ADJUSTMENT(9/16-18X2-IN) | |
| | | | -OR- |
| | 4P-4278BJ | [2] | SCREW-UNIT INJ ADJUSTMENT | |
| 6. | 196-5070BW | [2] | NUT-JAM(9/16-18-THD) | |
| | | | -OR- |
| | 4P-4279BJ | [2] | NUT-JAM(7/8-18-THD) | |
| 7. | 232-0253 | [4] | SCREW-ARM ADJUSTMENT(3/8-24X1.20-IN) | |
| 8. | 203-8822 | [2] | ROCKER ARM AS(EXHAUST VALVE ROCKER) | |
| 9. | 203-8824 | [2] | ROCKER ARM AS(INLET VALVE ROCKER) | |
| 10. | 207-5248B | [2] | ROCKER ARM AS(UNIT INJECTOR ROCKER) | |
| 11. | 061-8639BW | [2] | SEAL-O-RING | |
| | | | -OR- |
| | 032-9313BJ | [2] | SEAL-O-RING | |
| 12. | 8L-2777 | [4] | SEAL-O-RING | |
| | B | | USE AS REQUIRED |
| | J | | PARTS MARKED J MUST BE USED TOGETHER |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | W | | PARTS MARKED W MUST BE USED TOGETHER |
