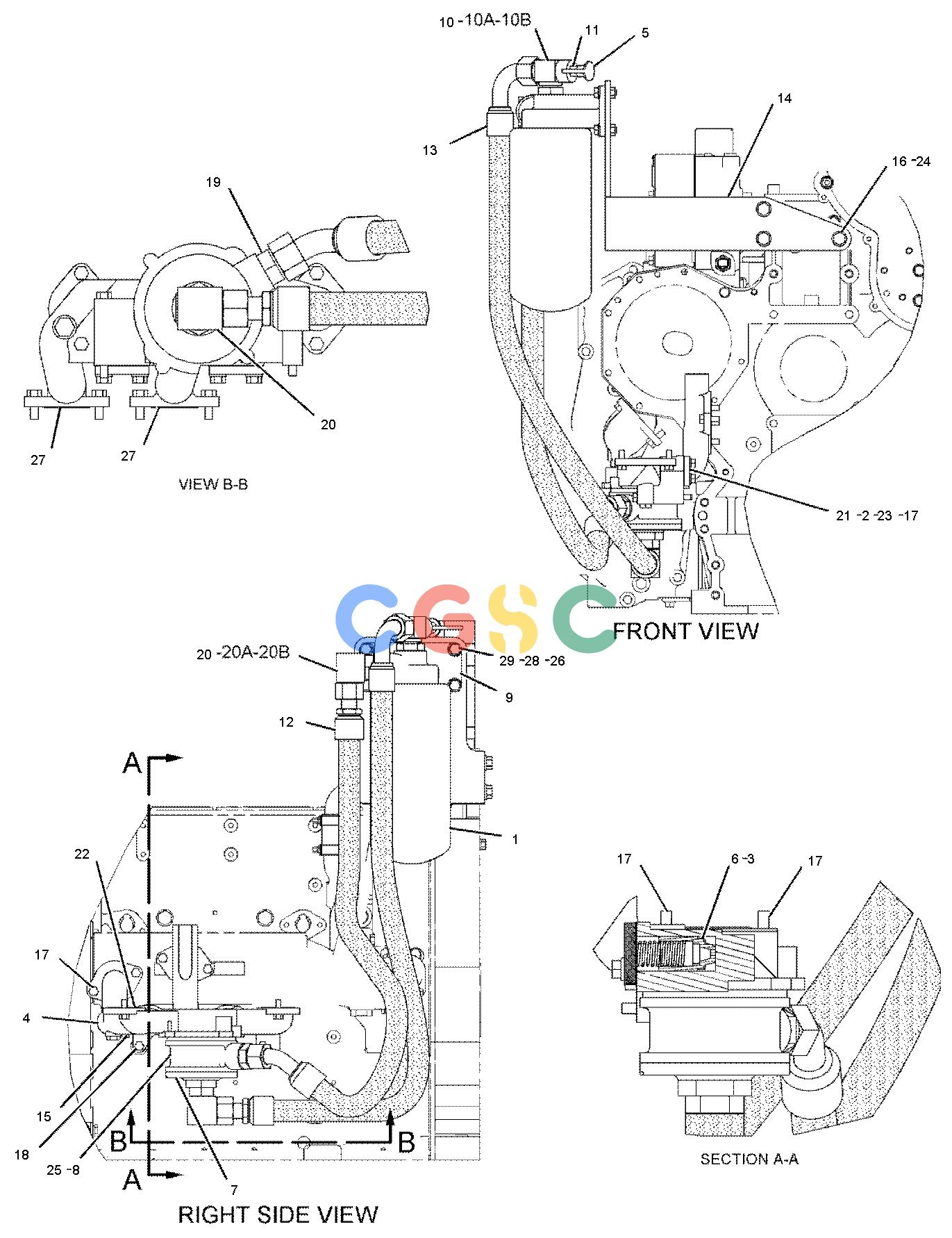

卡特零件查询（735） 227-5372: FILTER & LINES GP-ENGINE OIL
广数供应链运营团队, 15 02月, 2025，浏览：
760 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1R-0716 | [1] | FILTER AS-ENGINE OIL(STANDARD EFFICIENCY) | |
| 2. | 2P-3760 | [2] | GASKET | |
| 3. | 4N-8150 | [2] | SPRING | |
| 4. | 7N-3451 | [1] | BASE AS-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| | 5M-6213 | [2] | PLUG-PIPE(1/4-18-THD) | |
| 5. | 8C-3445 | [1] | CAP-DUST(OIL SAMPLING VALVE) | |
| 6. | 1P-1367 | [2] | PLUNGER(RELIEF VALVE)(RELIEF VALVE) | |
| 7. | 102-5828 | [1] | COVER | |
| 8. | 102-5829 | [1] | ADAPTER | |
| 9. | 104-7995 | [1] | BASE GP-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| 10. | 164-5596 | [1] | TEE AS | |
| | 8C-6515 | [1] | TEE | |
| 10A. | 5K-9090 | [1] | SEAL-O-RING | |
| 10B. | 7M-8485 | [1] | SEAL-O-RING | |
| 11. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING(ENGINE OIL) | |
| 12. | 214-5860I | [1] | HOSE AS | |
| 13. | 214-5861I | [1] | HOSE AS | |
| 14. | 229-2702 | [1] | BRACKET | |
| 15. | 0L-2070 | [1] | BOLT(3/8-16X2.25-IN) | |
| 16. | 0S-1585 | [3] | BOLT(1/2-13X1.5-IN) | |
| 17. | 0S-1594 | [11] | BOLT(3/8-16X1-IN) | |
| 18. | 0T-0065 | [2] | BOLT(3/8-16X3.5-IN) | |
| 19. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 20. | 148-8357 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9008 | [1] | ELBOW | |
| 20A. | 5K-9090 | [1] | SEAL-O-RING | |
| 20B. | 7M-8485 | [1] | SEAL-O-RING | |
| 21. | 2P-3761 | [2] | COVER | |
| 22. | 3P-0650 | [2] | SEAL-O-RING | |
| 23. | 5M-2894 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 24. | 5P-8245 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 25. | 6V-3908 | [2] | SEAL-O-RING | |
| 26. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| 27. | 8C-5230 | [2] | SEAL-O-RING | |
| 28. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 29. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
