神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (48.100.AD) - TRACK SHOE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
749 次

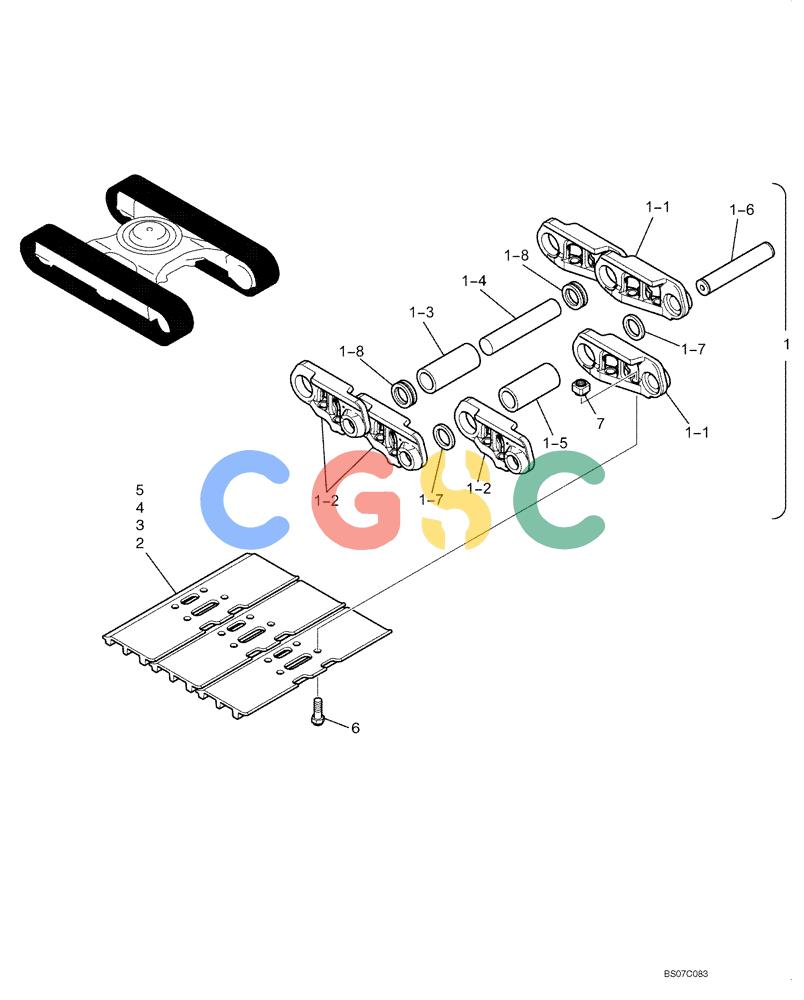

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM60D00001F2 | [2] | SHOE | KOB500mm Shoe Assembly, Inc. 1, 2, 6 & 7 |
| . . | YM60D00001F1 | [2] | SHOE | KOB600mm Shoe Assembly, Inc. 1, 3, 6 & 7 |
| . . | YM60D00001F5 | [2] | SHOE | KOB700mm Shoe Assembly, Inc. 1, 4, 6 & 7 |
| . . | YM60D00001F4 | [2] | SHOE | KOB800mm Shoe Assembly, Inc. 1, 5, 6 & 7 |
| . . | YM60D00001F3 | [2] | 700MM Shoe Assembly, Inc. 1, 4, 6 & 7 | 700MM Shoe Assembly, Inc. 1, 4, 6 & 7 |
| 1. | YM62D00001F1 | [1] | TRACK LINK | KOBInc. (1-1) - (1-8) |
| 1-1. | 2424J376 | [45] | TRACK LINK | KOBRight Superseded by part number: 2424J171D1 |
| 1-2. | 2424J377 | [45] | TRACK LINK | KOBLeft |
| 1-3. | 2405P416 | [44] | BUSHING,37.1mm ID x 58.73mm OD x 142.97mm L | KOB |
| 1-4. | 2419P4210 | [44] | PIN,36.66mm OD x 206.40mm L | KOB Superseded by part number: 2419T6091 |
| 1-5. | 2405P415 | [1] | BUSHING | KOBID 37.1 x OD 58.73 x 128.71mm Long Superseded by part number: 2405P392 |
| 1-6. | 2419P4211 | [1] | PIN,36.5mm OD x 206.4mm L | KOB |
| 1-7. | 2418T21131 | [2] | COLLAR | KOB |
| 1-8. | 2445Z1449 | [88] | SEAL,40mm ID x 59.8mm OD x 5.7mm Thk | KOB |
| 2. | YM60D00004P1 | [45] | SHOE | KOB(500mm) |
| 3. | YM60D00002P1 | [45] | SHOE | KOB(600mm) |
| 4. | YN60DU0001P1 | [45] | SHOE | KOB(700mm) |
| 4. | YM60D00005P1 | [45] | SHOE | KOB(700mm for YM62D00001F3) |
| 5. | LQ60D00017P1 | [45] | SHOE | KOB(800mm) |
| 6. | 2420T6976 | [180] | BOLT,Spher Hex, M20 x 1.5 x 56.50mm, Cl 2 | KOB Superseded by part number: 47796204 |
| 7. | 2420P1552 | [180] | NUT,M20, 1.5mm Pitch, HT | KOB Superseded by part number: 2420P1584 |
