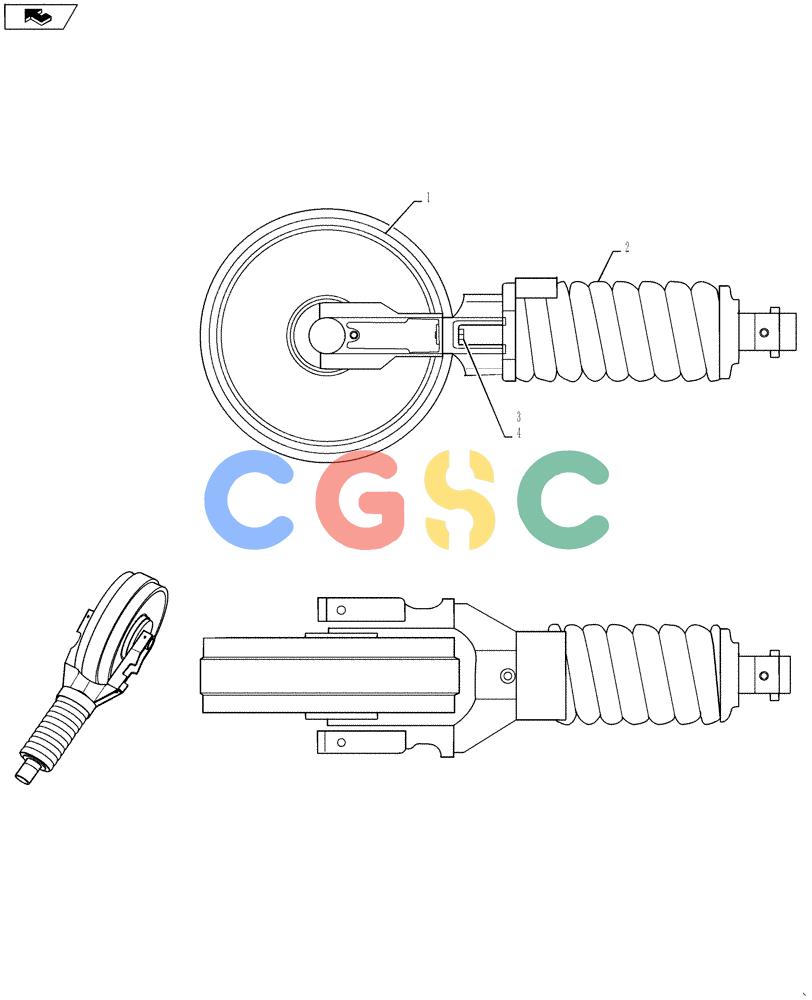

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (48.134.AA[02]) - IDLER, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN52D00066F1 | [1] | IDLER WHEEL | SMIncl 1-1 - 1-2 |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONWheel with Bushings |
| 1-2. | 47488526 | [1] | SEAL KIT | SMSeal Kit for Idler Wheel |
| 2. | YN54D00027F1 | [1] | IDLER | SMAdjuster Assembly, Incl 2-1 - 2-3 |
| 2-1. | 47488536 | [1] | FLANGE | SMYoke |
| 2-2. | 47488530 | [1] | PISTON | SMPiston |
| 2-3. | 47488537 | [1] | SEAL KIT | SMSeal Kit for Idler Adjuster |
| 3. | 11118934 | [2] | BOLT,Hex, M16 x 50mm, Cl 10.9 | TOR(ZS18C16050) Superseded by part number: 11118931 |
| 4. | 10517274 | [2] | LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk | TTF(ZW26K16000) |
