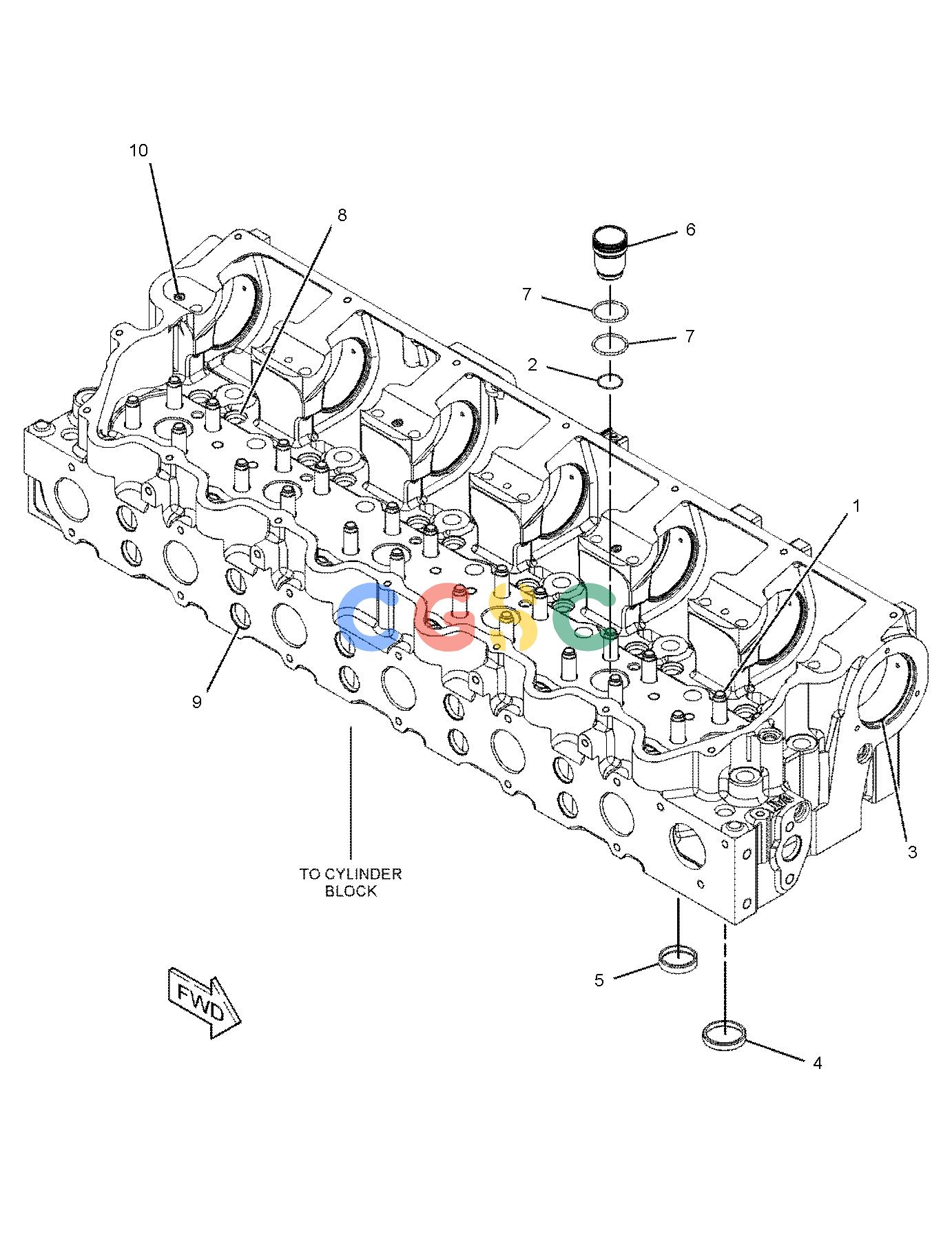

卡特零件查询（735） 245-4324: CYLINDER HEAD AS
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 122-7375 | [24] | GUIDE-VALVE(STANDARD) | |
| | 122-0447AB | | GUIDE-VALVE(0.51-MM OS) | |
| | 122-8612AB | | GUIDE-VALVE(0.13-MM OS) | |
| 2. | 9X-7430 | [6] | SEAL-O-RING | |
| 3. | 216-5582 | [7] | BUSHING(STANDARD) | |
| | 217-0751AB | | BUSHING(0.25-MM OS) | |
| | 217-0752AB | | BUSHING(0.762-MM OS) | |
| | 261-3429AB | | BUSHING(1.778-MM OS) | |
| | 261-3430AB | | BUSHING(1.27-MM OS) | |
| 4. | 224-3983 | [12] | INSERT-SEAT(INLET)(STANDARD) | |
| | 314-3063AB | | INSERT-VALVE SEAT(0.55-MM THK) | |
| | 314-3064AB | | INSERT-VALVE SEAT(0.13-MM OS, INLET) | |
| | 314-3065AB | | INSERT-VALVE SEAT(0.13-MM OS) | |
| | 314-3066AB | | INSERT-VALVE SEAT(0.26-MM OS, INLET) | |
| | 314-3067AB | | INSERT-VALVE SEAT(0.26-MM OS) | |
| | 314-3068AB | | INSERT-VALVE SEAT(0.51-MM OS, INLET) | |
| | 314-3069AB | | INSERT-VALVE SEAT(0.51-MM OS) | |
| 5. | 226-5561 | [12] | INSERT-VALVE SEAT(EXHAUST)(STANDARD) | |
| | 288-4883AB | | INSERT-VALVE SEAT(0.51-MM OS, EXHAUST) | |
| | AB | | INSERT-VALVE SEAT(0.76-MM OS, EXHAUST) |
| 6. | 263-4920 | [6] | SLEEVE-INJECTOR(INLET) | |
| 7. | 166-2904 | [12] | SEAL-O-RING | |
| 8. | 3B-0623 | [17] | PLUG-CUP | |
| 9. | 3B-0645 | [20] | PLUG-CUP | |
| 10. | 8T-6757 | [3] | PLUG-PIPE | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
