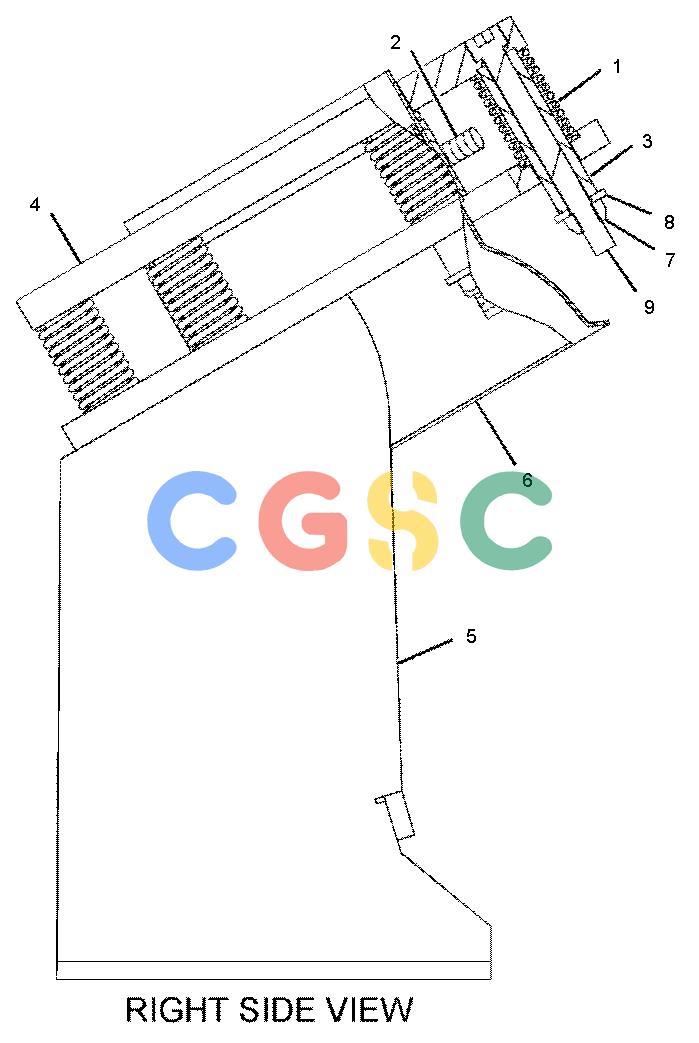

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2V-7248 | [6] | SPRING | |
| 2. | 7E-6455 | [1] | CLAMP | |
| 3. | 7U-6645 | [6] | PIN | |
| 4. | 106-1767 | [1] | PLATE AS | |
| 5. | 151-5555 | [1] | MOUNTING AS | |
| 6. | 187-1919 | [1] | CONNECTOR | |
| 7. | 6V-7744M | [6] | LOCKNUT(M10X1.5-THD) | |
| 8. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 9. | 108-4282M | [6] | BOLT-SOCKET HEAD(M10X1.5X100-MM) | |
| M | METRIC PART | |||
